Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine
Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine
Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine
Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-F
Certification :
ISO,CE,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
2 sets per month
Delivery Time :
50 days
Packaging Details :
wooden cases,plastic packing
Machine Control Power :
Hydraulic type
Production Speed :
8-10m/min
Method :
Vacuum Extruder
Roller Material :
GCR15
Roller Axis :
60mm
Material Thickness :
0.5-1.5mm
Final Product :
Sample Drawings provided
Certificate :
SGS,CE,ISO
Description

1, Production Forming process

De-coiler—servo feeding—gap and cut off mould—forming ---collection table

2, Flow diagram

Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine

3, Equipment composing parts

Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.


NO.
Project
Unit
parameters
Remark

1
Material		 type Mild steel Galvanized sheet
Strength of material sheet Map ≥350
Thickness of material sheet mm 0.8~1.5
2 Size of production mm
Reference the picture
3 Production speed m/min 6~8
4 Material of roller GCr quenching treatment
5 Drive type Gear box
6 Power kw About 34
7 Electric control system PLC variable frequency control
8 Dimensions(Length*width*height) m 28X4X3.9

4, Technical parameter of equipment main parts

  • Auto-decoiler
    • Load capacity: 2 T
    • Inner diameter of coil: 490-510mMm
    • Outer diameter≤1200mm

Servo feed and punching unfilled corner parts

a , Servo motor : used Mitsubishi Servo motor , power: 1.0kw

b , Punching unfilled corner die: 4 pillars punching die

c , Material of punching die: Cr12. quenching treatment

  • Feeding: power 0.37kw
  • Forming machine
  • Forming frame
  • Material of forming mould: GCr15, quenching treatment: rigidity: HRC56-62º
  • Motor: 7.5kw frequency conversion engine
  • Electric control: PLC system

5. Product Pictures

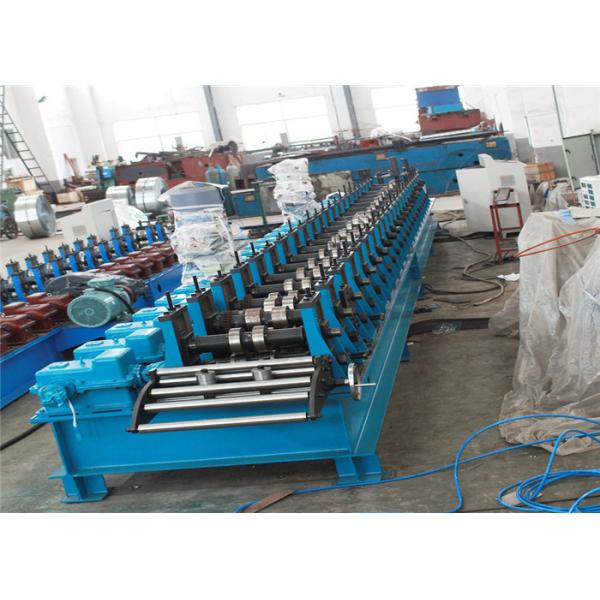

Air Diffuser Frame Shutter Roll Forming Machine , GCR15 Roller Shutter Forming Machine

Product tags

roller shutter forming machine

,

shutter roll forming machine

,

rolling shutter roll forming machine
Send your message to this supplier
Send Now
