Steel Silo Roll Forming Machine Production Craft

WHY NOT PIPE CULVERT?
POPULAR OPINION DOESN'T MAKE IT RIGHT.
There is a popular school of thinking surrounding the question of round shelters vs square shelters. There is no shortage of people and even "professionals" that will claim that a round shelter offers more strength than a square shelters. This couldn't be further from the truth. It's easy to trace the origins of this pop-culture thinking back to the Roman arch style of engineering. At the time - this style of architecture was cutting edge and far stronger than anything else. However; just as time has progressed bringing new ideas and technology; so in like fashion has our understanding of engineering grown. Round is NOT stronger than everything else.

Steel Silos Specification

Material of the profile: 195-235Mpa GI or carbon steel
Steel thickness (t): from 3 mm to (at least) 7 mm;
Coil width: 1000mm
Profile height (h): from 13±1mm
Effective width (b): 912±4mm
Flange height (c): 76±2mm
Perforated round or oval holes for at least the following screw diameter must be confirmed by customer before order
Length tolerance: ±1.5mm per each pieces

Features

1. Large capacity

One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

2. High accuracy

Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

3. Less residues

External installable stiffeners contribute to less grain residues on silo walls.

4. Detachable and movable

With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

Technical parameter

2 Steel Silo Machine Working Condition

2.1

2.1.1Operation area:20X 5.0 X 8(length X width X height)m

2.1.2The direction of feeding: from left to right

2.1.3Power: 380V, 50Hz, 3 parch

2.1.4Total Power:about 265kw

2.2 Main technical data

2.2.1 Width of material sheet:1145 mm

2.2.2 Thickness of material sheet:3~7mm

2.2.3 Low carbon steel,galvanized sheet,cold steel,etc

2.2.4Working piece length:≤6000 mm

2.3 Main Machine Technical Parameters

2.3.1 10T hydraulic decoiler

Steel coil width----from 1250 mm to 1500 mm

Internal diameter of coil----variable, from 470 mm to 620 mm

Coil placement in the coil holder----hydraulic hoist

Maximum coil weight----10000 Kg

Working speed----0-15m/min adjustable

Maximal out diameter----1600mm

Main motor power----7.5KW AC motor

Hydraulic power----5.5kw

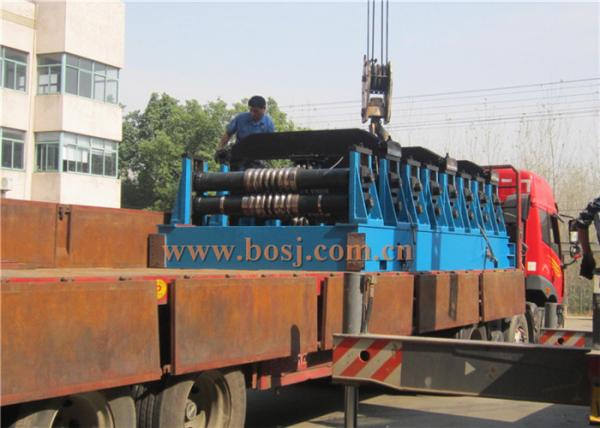

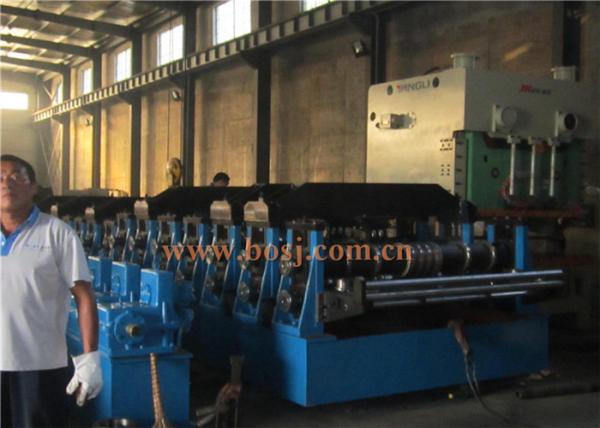

Forming Section

Material of the profile ---- 195-235Mpa GI or carbon steel

Thickness range ----3.0-4.0mm

Main motor power ----60kw, AC motor, motor inside of main machine

Roll station ----20stations (according the final design

Shaft diameter ----￠150mm

Machine roll forming speed---- not less than 18 meters per minute

After 20 roller stations,the profile is finished.It consists of DC motor,reducer motor,driven gearbox and rollers.Lathee Bed and drive box adopts welded structure and stress treatment; Gear takes 45 steel hard tooth surface.
The roller uses the combinated structure, the speed difference and the forming resistance are small, the steel plate surface will be less wear; and also guaranteed the precision shape of the working piece with no scratch .The material of the roller is the GCr15 forging, after whole quenching then by numerical control processing, degree of hardness can reach HRC58-62; Has the characteristic with high strength, hardness, precision and long service life etc.
Driven type:it takes gearbox driven

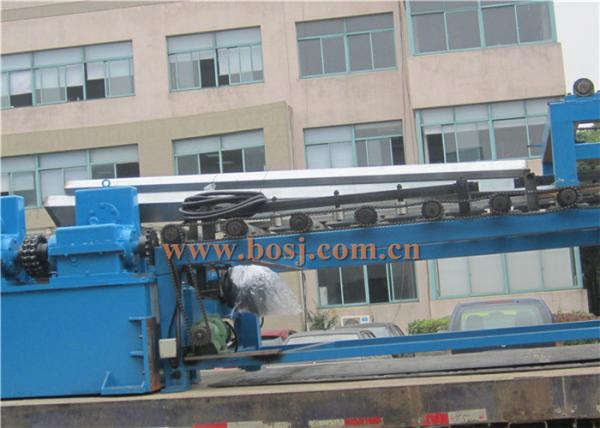

Auto stacker and transmission table

Take the sheet by air compressor, 5.5KW( provide by customer)

Air cylinder swing arm size----40mmx80mm

Transmission power----4kw AC motor

Stacker length in 12m, transmission table length in 25m

Drive of transmissionby 1.0inch double line chain

Transmission roller----ASTM1045 with chrome, diameter of roller is in 80mm

Carrying capacity----maximal 5000Kg

Length of capacity ----500-12000mm

The maximal stacker height---- 300mm

3 Station Curving Machine

Thickness----3-4mm

Maximal feeding---- width1000mm

Roll speed====0—10m/min

Main power====30KW

Roll station===3 stations

Shaft material===45# forge steel, polished and coated with chrome

Diameter of shaft ===180mm

Material of roller===Gcr15 steel, polished and with HRC58-62°

Adjust angle motor power===3KW

Dimension of machine===2000 mm×1200 mm×1300 mm

Curving mode===horizontal

Curving diameter≥800mm

After-sales service

Technical Support

Fully providing technology supports both within and after the warranty period. Feed back to our customers at the first time.

Spare Parts

Promptly providing spare parts and wearing parts.

Upgrade

Improve technology and upgrade of equipments.
