Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-SI
Certification :
SGS,CE,ISO
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
15 sets per year
Delivery Time :
90 days
Packaging Details :
container packing
Material thickness :
1.75-7.0mm
System :
PLC System
Production capacity :
8-15m/min
Curving Machine :
one set
Roller Material :
GCR12
Control type :
PLC Interface
Description

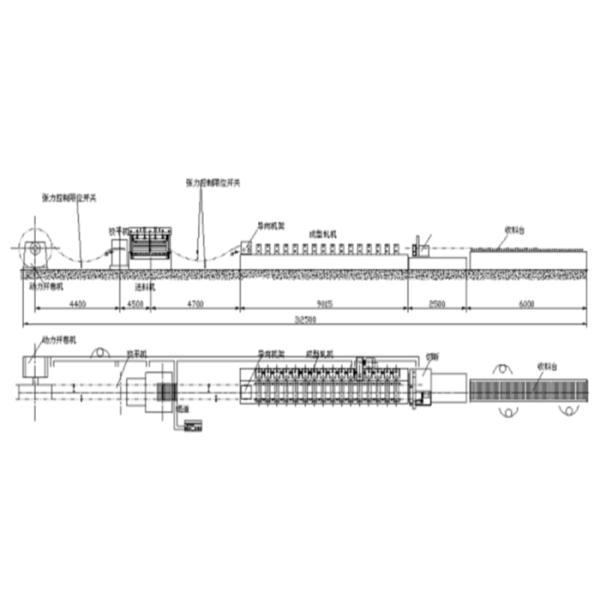

Steel Silo Roll Forming Machine Production Craft

Agricultural Steel Silo Roll Forming Machine , 265KW Sheet Roller Machine 380V

2 Steel Silo Machine Working Condition

2.1

2.1.1 Operation area:20X 5.0 X 8(length X width X height)m

2.1.2 The direction of feeding: from left to right

2.1.3 Power: 380V, 50Hz, 3 parch

2.1.4 Total Power:about 265kw

2.2 Main technical data

2.2.1 Width of material sheet:1145 mm

2.2.2 Thickness of material sheet:3~7mm

2.2.3 Low carbon steel,galvanized sheet,cold steel,etc

2.2.4 Working piece length:≤6000 mm

2.3 Main Machine Technical Parameters

10T hydraulic decoiler
Steel coil width
from 1250 mm to 1500 mm
Internal diameter of coil
variable, from 470 mm to 620 mm
Coil placement in the coil holder
hydraulic hoist
Maximum coil weight
10000 Kg
Working speed
0-15m/min adjustable
Maximal out diameter
1600mm
Main motor power
7.5KW AC motor
Hydraulic power
5.5kw

Forming Section
Material of the profile
195-235Mpa GI or carbon steel
Thickness range
3.0-4.0mm
Main motor power
60kw, AC motor, motor inside of main machine
Roll station
20stations (according the final design)
Shaft diameter
￠150mm
Machine roll forming speed
not less than 18 meters per minute
Transmission
by gear box 200*500

Auto stacker and transmission table
Take the sheet by air compressor, 5.5KW( provide by customer)
Air cylinder swing arm size
40mmx80mm
Transmission power
4kw AC motor
Stacker length in 12m, transmission table length in 25m
Drive of transmission
by 1.0inch double line chain
Transmission roller
ASTM1045 with chrome, diameter of roller is in 80mm
Carrying capacity
maximal 5000Kg
Length of capacity
500-12000mm
The maximal stacker height
300mm

3 Station Curving Machine
Thickness
3-4mm
Maximal feeding width
1000mm
Roll speed
0—10m/min
Main power
30KW
Roll station
3 stations
Shaft material
45# forge steel, polished and coated with chrome
Diameter of shaft
180mm
Material of roller
Gcr15 steel, polished and with HRC58-62°
Adjust angle motor power
3KW
Dimension of machine
2000 mm×1200 mm×1300 mm
Drive
by gear box
Curving mode
horizontal
Curving diameter
≥800mm
