Steel Silo Roll Forming Machine Production Craft

2 Steel Silo Machine Working Condition

2.1

2.1.1 Operation area:20X 5.0 X 8(length X width X height)m

2.1.2 The direction of feeding: from left to right

2.1.3 Power: 380V, 50Hz, 3 parch

2.1.4 Total Power:about 265kw

2.2 Main technical data

2.2.1 Width of material sheet:1145 mm

2.2.2 Thickness of material sheet:3~7mm

2.2.3 Low carbon steel,galvanized sheet,cold steel,etc

2.2.4 Working piece length:≤6000 mm

2.3 Main Machine Technical Parameters

2.3.1 10T hydraulic decoiler

Steel coil width----from 1250 mm to 1500 mm

Internal diameter of coil----variable, from 470 mm to 620 mm

Coil placement in the coil holder----hydraulic hoist

Maximum coil weight----10000 Kg

Working speed----0-15m/min adjustable

Maximal out diameter----1600mm

Main motor power----7.5KW AC motor

Hydraulic power----5.5kw

Forming Section

Material of the profile ---- 195-235Mpa GI or carbon steel

Thickness range ----3.0-4.0mm

Main motor power ----60kw, AC motor, motor inside of main machine

Roll station ----20stations (according the final design

Shaft diameter ----￠150mm

Machine roll forming speed---- not less than 18 meters per minute

Auto stacker and transmission table

Take the sheet by air compressor, 5.5KW( provide by customer)

Air cylinder swing arm size----40mmx80mm

Transmission power----4kw AC motor

Stacker length in 12m, transmission table length in 25m

Drive of transmissionby 1.0inch double line chain

Transmission roller----ASTM1045 with chrome, diameter of roller is in 80mm

Carrying capacity----maximal 5000Kg

Length of capacity ----500-12000mm

The maximal stacker height---- 300mm

3 Station Curving Machine

Thickness----3-4mm

Maximal feeding---- width1000mm

Roll speed====0—10m/min

Main power====30KW

Roll station===3 stations

Shaft material===45# forge steel, polished and coated with chrome

Diameter of shaft ===180mm

Material of roller===Gcr15 steel, polished and with HRC58-62°

Adjust angle motor power===3KW

Dimension of machine===2000 mm×1200 mm×1300 mm

Curving mode===horizontal

Curving diameter≥800mm

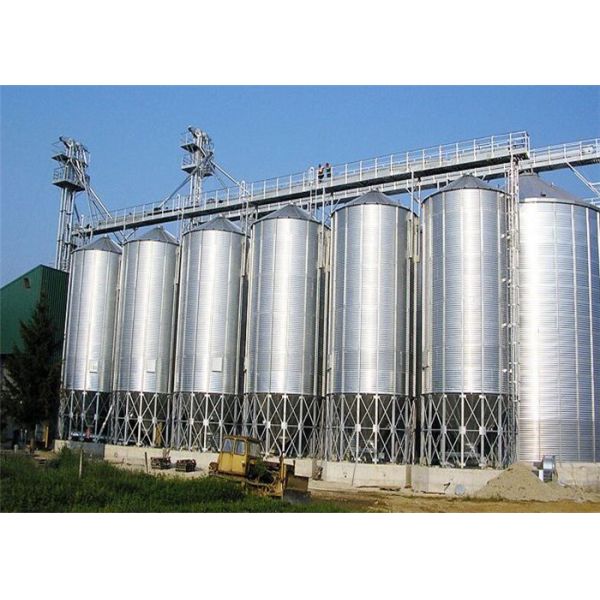

Steel Silo
