Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-CH
Certification :
SGS,ISO,CE
Place of Origin :
JIANGSU
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
3 sets per month
Delivery Time :
50 days
Packaging Details :
wooden cases
Thickness :
1.5mm-3.0mm
Production Speed :
15-30m/min
Total Power :
35KW
Control System :
PLC system
Functin :
Support
Cutting Type :
Flying Cutting
Decoiler :
Passive or Automatic
Steel Material :
Galvanized Steel
Description

Unistruct Solar Stand C Channel Roll Forming Machine

1. Standard thickness: 1.5mm, 2mm, 2.5mm,2.75mm, 3.0mm
2. Standard length: 2440mm, 3000mm, 5800mm, 6000mm and customized
3. Standard size: 41*21, 41*41,41*62,41*72,41*82, back to back, 41*41.41*21,

Other sizes be produced according to customer’s drawing.

Equipment part list of automatic U type auto punching/roll forming machine

No. Name Type Quant. Power of motor (KW)
1 Passive Decoiler MT-300 1 set
2 Leveler HS-300 1 set 3
3 Servo-feeder NCF-300 1 set 2.2

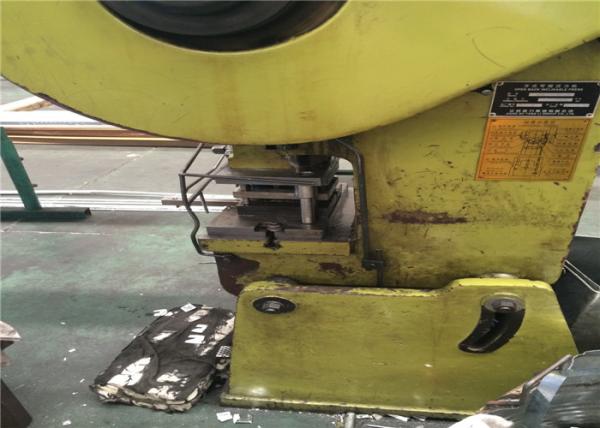

4 JF21-80 Punching machine YANGLI GROUP 1 set 7.5
5 Punching mould 1 set
6 Roll forming machine Gantry gearbox 1 set 18.5X2

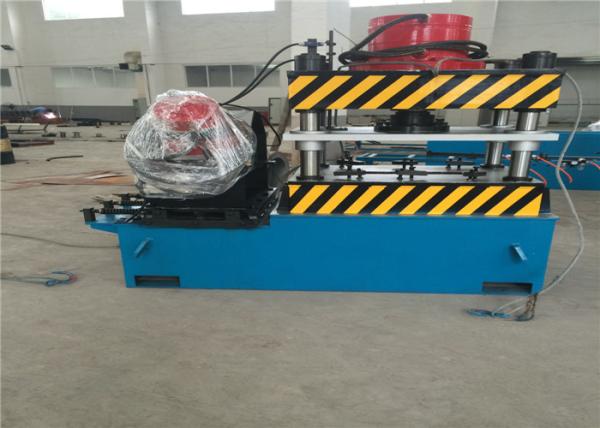

7 Flying Hydraulic cutting 1 set 5.5
8 Run-out table SL-300X4000 1 set
9 Electric control system 1 set

Main technical parameters

1. Machine Technical parameters

Width of material sheet:≤200 mm

Thickness of material sheet: 0,95 mm up to 1,55 mm

Material of sheet:Galvanized Steel,etc

Line production speed:15-20m/min(including punching/forming/cutting)

Length of the work piece:3000mm-6000mm.

Total Power: 48.2 KW.

2. Machine General Working Condition

Area of production line: length45m x width 3.5m x height 5m

Feeding direction: from left side to right side

Power: 380V, 50Hz, 3 phase

Pneumatic station: pressure 0-0.6MPa.,0.5m3/min.

Hydraulic oil: 46# Hydraulic oil

Gear oil: 18# gear oil

3. Unistruct Drawing or Size

Slotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic CuttingSlotted Strut C Channel Roll Forming Machine Gear Box Driven Hydraulic Cutting

4. Main Machine Technical parameter

,NO. Name unit parameter remark

1		 materials Type Mild steel galvanized sheet
Plate strength ≥350
Plate thickness mm 1.5~2.5
2 specification mm
See the picture
3 speed m/min 6~8
4 Material of the roller GCr15 Hardening treatment
5 drive type Gear box
6 power kw About40
7 Electrical control system PCL frequency control
8 Size(lengthXwidthXheight) m 35X4X3.9
