Hydraulic Cutting Door Frame Roll Forming Machine , 12kw Door Frame Making Machine
Hydraulic Cutting Door Frame Roll Forming Machine , 12kw Door Frame Making Machine
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-V
Certification :
SGS,CE,ISO
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T
Supply Ability :
30 sets per season
Delivery Time :
50 days
Packaging Details :
Woodem cases
Power :
12kw
Roller material: :
GCr15,CNC machining,chromed
Thickness of coil: :
1.5-3.0mm
Structure: :
Column
Transmission: :
Gearbox or Chain
Application: :
Fencepost
Forming station: :
30 stations
Production Capacity :
15-30m/min
Description

Equipment structure:

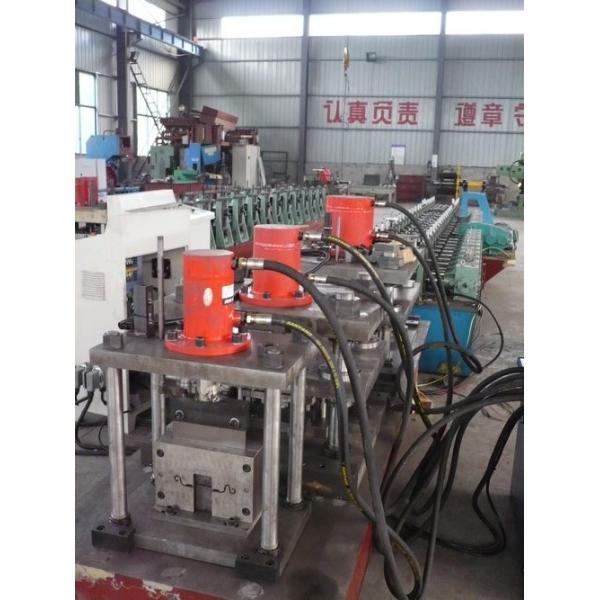

De-coiler --- Roll forming --- correction device --- punching device --- cutting-to-length --- collection table

Technique data:

1, Coil width:100-300mm,

2, Coil thickness: 0.8-1.2mm

3, Production speed: 0-10m/min

4, Total power: about 20 kw

5, Operation area: length 18m x width 3m

6, Power: 380V/415V, 50Hz

Hydraulic Cutting Door Frame Roll Forming Machine , 12kw Door Frame Making Machine

economical and reasonable, saving materials

The section is economical and reasonable, saving materials. In the same weight and cross section area, cross section coefficient of cold-formed profiles is higher than that of hot-rolled profile. Under the same load, can reduce the structural weight, saving materials.The production can be matched with punching, embossing, sculpture and other processes, can meet different needs, forming speed of up to 250m per minute.

Machine body

The main body of the body without welding, all the use of cast steel, the whole machine will not produce stress and lead to the host body deformation.

Rollers

High quality rollers will help to produce the beautiful and high quality profile. That will satisfy your customers.

Using high quality 95mm thick shaft, the strength is more durable.

Hydraulic Cutting Door Frame Roll Forming Machine , 12kw Door Frame Making Machine

Shutter door forming machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.

Main Motor Power
7.5 kw
Hydraulic Station Powder
3 kw
Hydraulic Oil Pump
CE-310
Sprocket
P-25.4mm
Control System
PLC
Yield Strength
32Mpa
Diameter of Axis
80mm
Material Roller
#45 steel hard chrome plating
Processing speed
8-12m/min
Frame
30H steel welding
Roller plate thickness
0.3-1mm
Use
The machine used to produce all kinds of house,
Equipment parts
Decolier, main roll forming machine, hydraulic cutter, hydraulic station, PLC electric control system, counter, product supporter
Product tags

door roll forming machine

,

door frame roll forming machine

,

steel door frame roll forming machine
