Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel
Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel
Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel
Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel
Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-A
Certification :
ISO,SGS,CE
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
5 sets per month
Delivery Time :
60 days
Packaging Details :
wooden cases
Function :
Used in Car Anticollision
Roller Material :
GCR15
Production Speed :
8-15m/min
Tensile Strength :
400∽590 MPa
Yeild strength :
≥780MPa
Control System :
PLC system
Operation Workers :
1-2 people
Description

Anticollision Beam Roll Forming Machine

1, Equipment pictures​


2, Equipment Structure
This production line consists of punching,roll forming,welding,bending,cutting,etc.
This production line consists of de-coiler,punching,roll forming,welding,cutting,electric control system,etc.The tensile strength of profile is 400∽590 MPa,yeild strength ≥780MPa,the material is high tensile strength steel

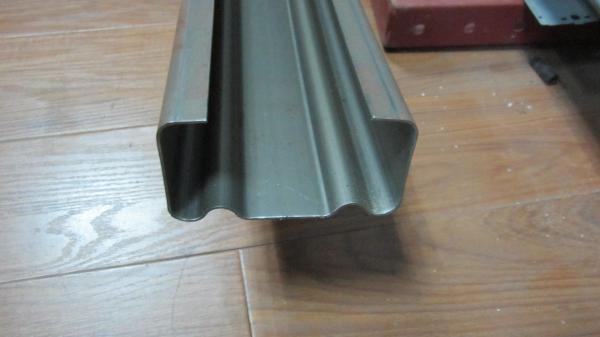

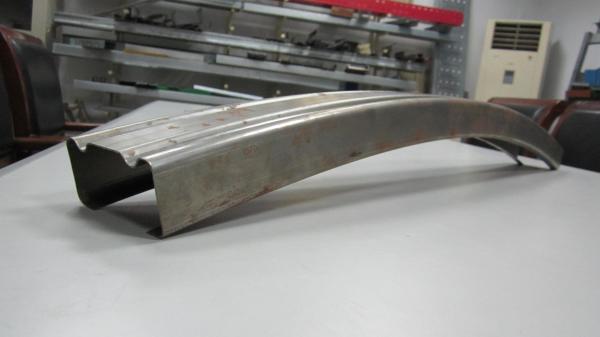

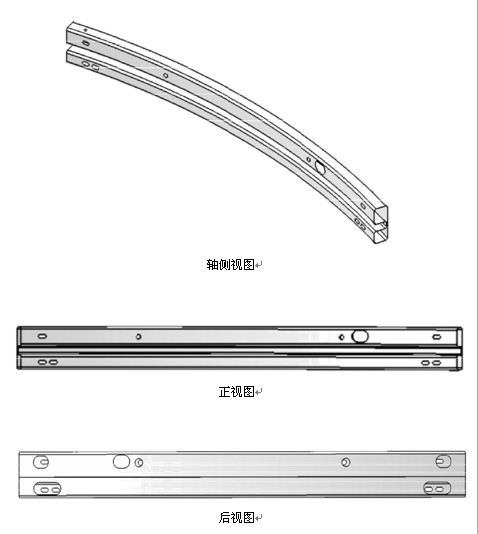

3, Profile show

Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel

​Car Anticollision Beam Metal Forming Equipment 780MPa 10m/min High Tensile Steel


4, Technical parameters

No Items Unit Parameters Remarks

1

 Material Type

High

tensile steel
Tensile strength Map 400~590
Yeild strength MaP ≥780MPa
Thickness mm 1.2~2.0
2 Profile Specification mm As the profile pictures show
3 Production speed m/min About 10
4 Roller material Gcr12,D2Carbon treatment
5 Drive type Gearbox
6 Motor power kw About 67
7 Electric control system PLC frequenvy motor
8 Dimensions(Length*width*height) m 45X4X3.9
