Specifications
Brand Name :
BOSJ
Model Number :
BOSJ-S
Certification :
CE,ISO,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/A, L/C, D/A, D/P, T/T
Supply Ability :
100 sets per year
Delivery Time :
50 days
Packaging Details :
wooden cases
Control Type :
Auto
Thickness :
1.2-1.8mm
Production Speed :
8-15m/min
Material of Cutting :
Cr12
Power :
30KW
Material :
Galvanized Steel,Aluminium,Stainless Steel
System :
PLC Control System
Motor :
AC motor
Description

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine


Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine


Product Description

Unit performance

The thickness of material sheet: 1.2-1.8 mm,the product drawings need to be confirmed by buyer

The width of material: 250≤§≤520 mm

Product speed: 0-8m/min

Occupy groud area: length 30m xwidth 3m

Total power: about 62kw

Main Machine Parameter

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine
Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Detailed Information

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Punching machine

punching press: JF21-125

Material of mould: Material:Cr12Mov, Quenching, Hardness:HRC58-62º

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

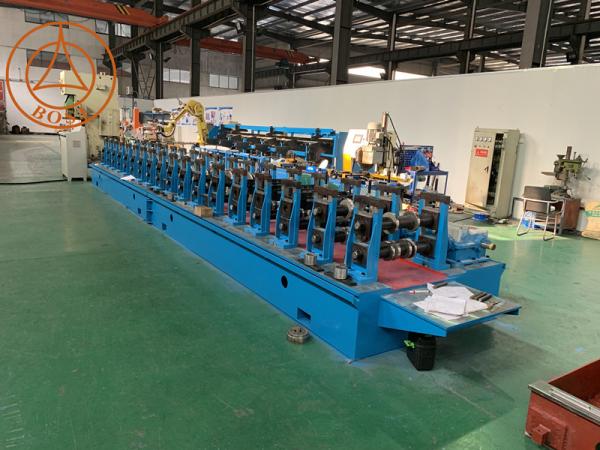

Forming machine

Rack: cast iron frame,

Material of bearing 40Cr, quenching treatment

Material:GCr15, Quenching, Hardness:HRC58-62º

Motor power: 30KW Frequency conversion motor ZQ500 reducer

Drive type: every rack has one gear power distribution box.

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Electronic controlling: PLC

Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc...

Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency stop ensures the safe of the equipment and operator.

Machine side is equipped with the manual operation control panel for convenient worker to operate;

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine


BOSJ also offer these welding machines for scaffolding system

  • Ringlock Scaffolding Welding Machine
  • Pulley-clip Scaffolding Welding Machine
  • Cuplock Scaffolding Welding Machine
  • Kwikstage Scaffolding Welding Machine
  • Steel Prop Automatic Welding Machine
  • Jack Base Scaffold Welding Machine
  • Robot Welding Machine

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine



Automatic Robot Welding Machine

  • Software PLC functions, easy for logical control.
  • Security module for safe production of robot.
  • It takes Yaskawa,OTC,ABB,Kuka and other famous robots brand.
  • Process function, simplified program operation.


Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

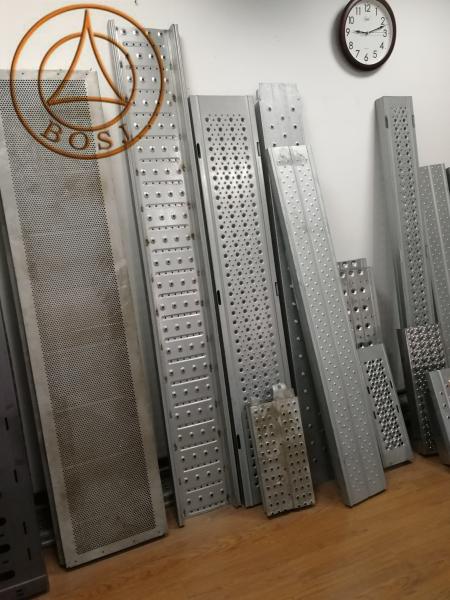

Application

Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

Packaging Details

Simple plastic film protection, loaded in container independently;
We also can do the packaging according to Customers'need.


Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine
Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

———— Warmly welcome you to visit our factory! ————
Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine

BOSJ offer engineers to install and commission the machines at buyer's factory, and also train your workers to operate the machine.
a. Technology: We have centers and innovative designing teams for different kinds of production lines.
b. After Sale Service: Warranty period 1 year, after this period, we are willing to give help if customer needs accessory.Construction Metal Scaffold Deck Perforated Board Walk Platform Roll Forming Making Machine
