Light gauge steel framing machine c purlin roll forming machine c keel making machine

Product Description

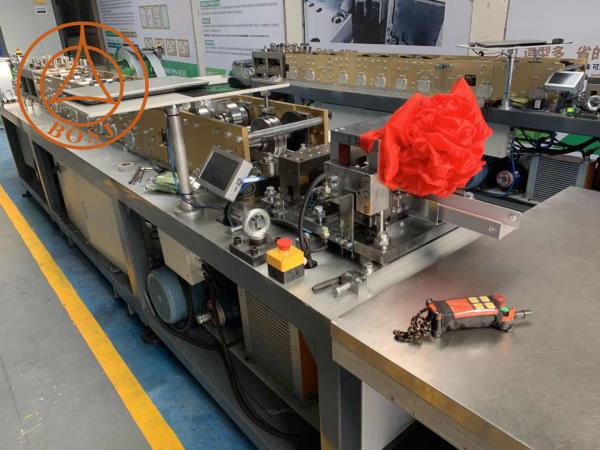

Roll forming machine

Dimension: 4800x1200x700mm

Weight: 3 T

Colour: Customized

Main motor: 7.5 KW Servo motor, Taiwan Delta

Transmission: Gear transmission + chain drive

Forming Mould: Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62

Main axis: 40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating.

Speed: 40m/min(without punching and cutting)

Production capacity : 6-8 tons/h (Overall speed to make the whole house)

Tolerance: punching and cutting: ± 0.5mm

forming: ±0.75mm

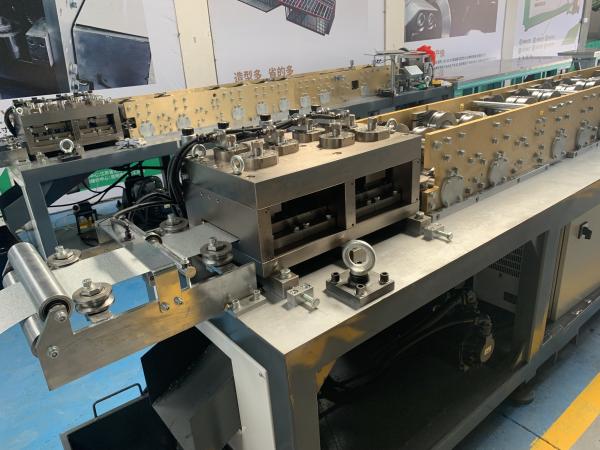

Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;

How to Install

1. Assemble light steel keels piece by piece(according to numbers and drawings)

2. Combined all parts together(chassis, wall, floor beam, roof, etc)

3. Install the exterior wall

4. Complete the windows, doors and cornice with trim and flashing

5. Fix the exterior corner

• Smart Internet connectivity provides cloud-based data reporting to enable real time production management and technical diagnostics to improve efficiency.

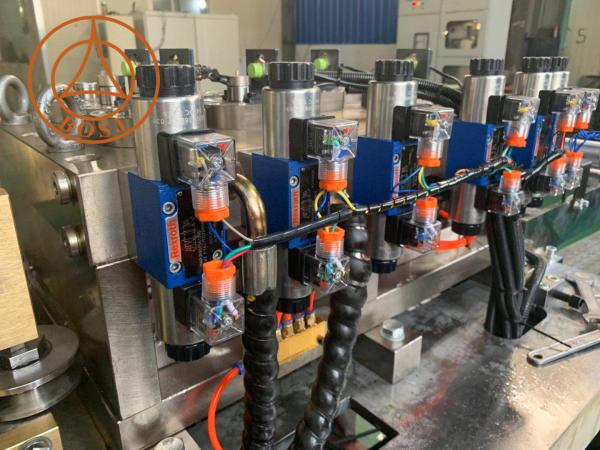

• Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists.
• An auto gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.6 -1.2 mm.

  ---

Vertex BD Software

​

• Create frame work 3D map and 3D decoration view
• With analysis project function, the software can calculate bearing capacity
• Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material
• Permanent use without updating or upgrading

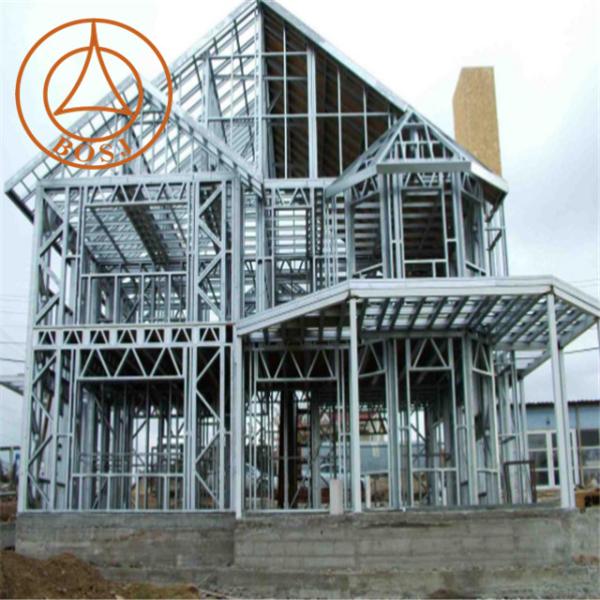

Prefabricated Lightweight Steel Truss Frames all different shapes and sizes heading out the door!

Get in touch with us today to see how we can help on your next project.
