Specifications
Brand Name :
BOSJ
Model Number :
BOSJ/V
Certification :
CE,ISO,SGS
Place of Origin :
JIANGSU
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
100 sets per year
Delivery Time :
40 days
Packaging Details :
Suitable Size Container for Machine
Control Type :
Auto
Thickness :
0.6-1.2mm
Control system :
PLC(imported Brand)
Feature :
Low Energy Consumption
Production Speed :
40m/min
Material :
G300-G550 galvanized steel
Power :
7.5kw
Weight :
3 T
Colour :
Customized
Tolerance :
punching and cutting: ± 0.5mm forming: ±0.75mm
Description

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Product Description

BOSJ Equipment Parameters

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

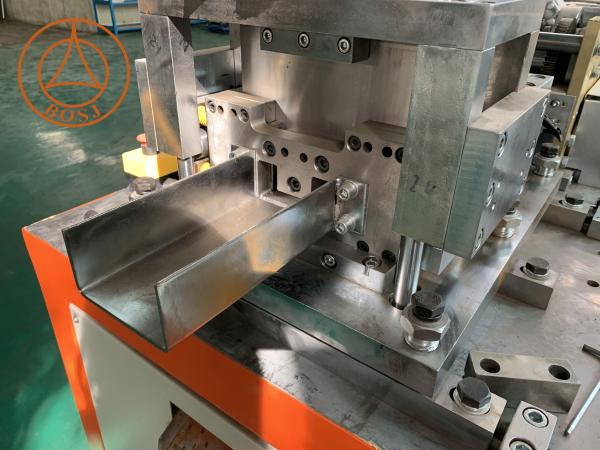

Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

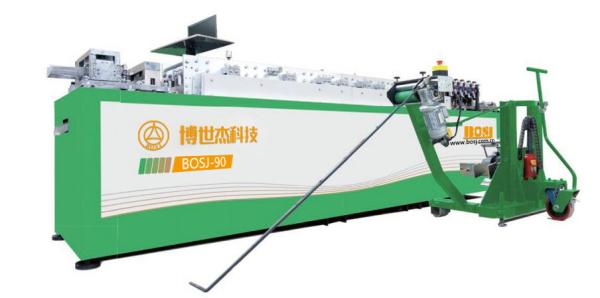

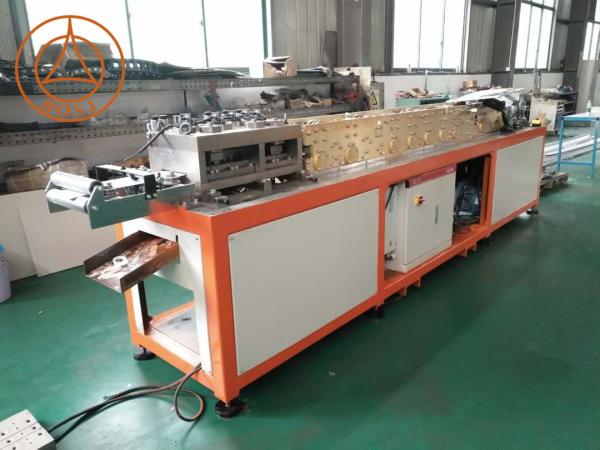

C89 Roll forming machine

Name Details Remarks
Dimension 4800x1200x700mm
Weight 3 T
Colour Customized
Main motor 7.5 KW Servo motor Taiwan Delta
Transmission Gear transmission + chain drive
Forming Mould Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62

Main axis

 40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating.
Speed 40m/min(without punching and cutting)
Production capacity 6-8 tons/h (Overall speed to make the whole house)
Tolerance

punching and cutting: ± 0.5mm

forming: ±0.75mm

 Avoid stretching magnification errors during forming

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

How to Install

1. Assemble light steel keels piece by piece(according to numbers and drawings)

2. Combined all parts together(chassis, wall, floor beam, roof, etc)

3. Install the exterior wall

4. Complete the windows, doors and cornice with trim and flashing

5. Fix the exterior corner

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

  • Smart Internet connectivity provides cloud-based data reporting to enable real time production management and technical diagnostics to improve efficiency.
  • Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists.
  • An auto gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.6 -1.2 mm.

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Vertex BD Software

​ Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price

Light Steel Structure Keel Modular Prefabricated House and Villa Roll Forming Machine Price
