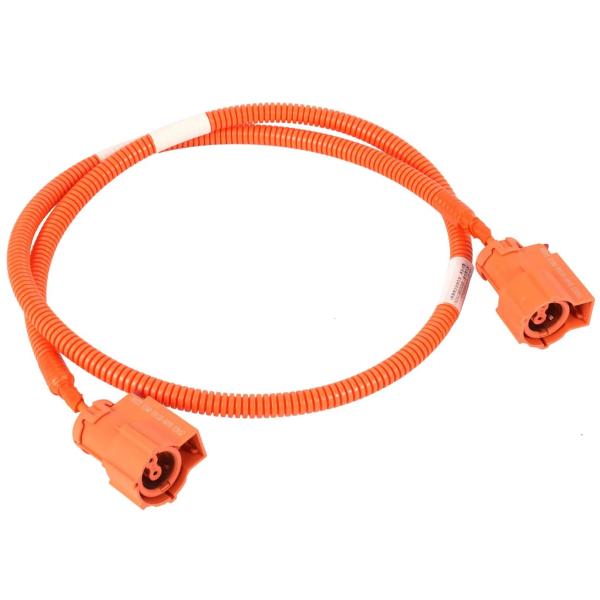

Corrugated pipe​ automotive wiring harness for high voltage power supply charging

1. Product description

Corrugated pipe automotive wiring harness for high voltage power supply charging mainly used for transmission of high voltage and high current,

with high voltage resistance and durability. Corrugated pipe shell: The wiring harness adopts high-quality PVC material shell for encapsulation and

protection, with high temperature resistance, corrosion resistance, not easy to aging, wear resistance and other characteristics.Multi-strand copper

wire conduction: The wire harness adopts multi-strand thin copper wire to conduct electricity, improving the insulation and reliability of the wire

harness.The harness adopts independent marshalling design to distinguish high-voltage wires, ground wires and signal wires to avoid crossing

and mutual interference of lines.Safe and reliable.The wiring harness can transmit thousands of volts of high-voltage electric energy, and can

maintain stable transmission in high-speed driving or complex road conditions, to ensure driving safety and normal operation of electric

vehicles.Waterproof rating IP68.

Feel free to contact with us, if you ever needed to consider your wire harness solution.

2. Product information

3. Picture of real products

4. Application area

I: Charging pile connection: The corrugated pipe bundle is used to connect the EV charging pile to the vehicle charging interface. They take on the task of transferring electrical energy from the charging pile to the vehicle battery.

II: Internal vehicle wiring: Wiring harnesses transfer electrical energy from charging connection points outside the vehicle to the battery system inside the vehicle. They are routed through the chassis of the vehicle or other appropriate paths to ensure the transmission and distribution of high-voltage power supplies.

III: High voltage auxiliary power systems: In addition to charging systems, corrugated pipe bundles may also be used to connect high voltage auxiliary power systems of vehicles, such as air conditioning systems, electric power steering systems, etc.

5. Feature

I: High voltage power transmission: Corrugated pipe bundles are used to transmit high voltage power to deliver electrical energy from the charging pile to the vehicle's battery system. They are able to withstand power transmission in high-voltage environments and ensure safe and efficient transmission of power.

II: Insulation protection: The automotive wiring harness adopts special insulation materials and structure, which can provide excellent insulation performance and prevent current leakage and arc discharge. This is essential for high voltage charging systems to ensure the safety and reliability of the charging process.

III: Flexural adaptability: The corrugated automotive wiring harness has a flexible corrugated structure that enables it to adapt to complex layouts and flexural paths inside the vehicle. This makes wiring harnesses more convenient in the process of installation and wiring, and can adapt to the needs of different models and vehicle designs.

IV: Anti-electromagnetic interference: Shielding and insulation measures are used in the wiring harness to reduce the impact of electromagnetic interference on the wiring harness and charging system. This helps to maintain the stability of power transmission and prevent the negative impact of external interference on system performance.
