FLRY-B 300V IP67 insulated, waterproof, dust-proof and flexible, braided and shielded angle sensor harness

1. Product description

Material and Structure:

Conductor: multi - strand soft copper wire
Insulation layer: high quality PVC material
Sheath: chemical resistant PVC outer layer
Braided shielding layer: provides excellent electromagnetic shielding performance

Dimensions and Specifications:

Wire diameter range :0.5mm² to 6mm²
Outer diameter range :4.5mm to 12.5mm
The number and cross-sectional area of wire cores can be customized according to customer requirements

Performance parameters:

Rated voltage :300V
Operating temperature range :-40°C to +80°C
Insulation resistance :≥10MΩ·km
Protection level :IP67
Tensile strength :≥15N/mm²
Bending life :≥50,000 times (R=5D)

2. Product information

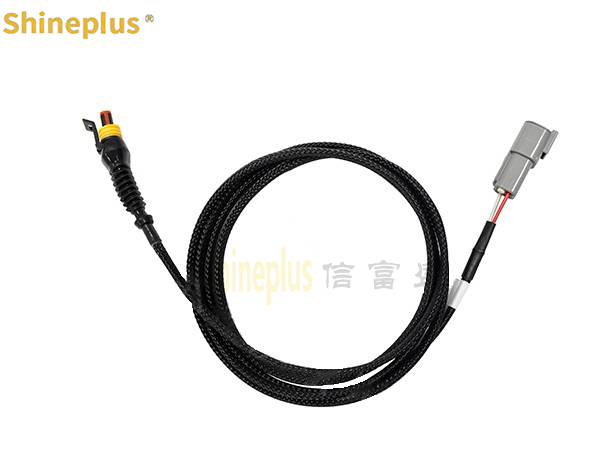

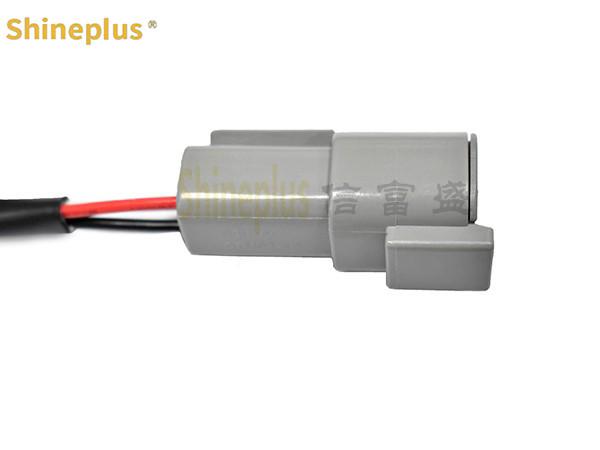

3. Picture of real products

4. Features

I: Excellent waterproof and dustproof performance, suitable for harsh environment.

II: High flexibility, can withstand repeated bending.

III: Excellent electromagnetic shielding performance, strong anti-interference ability.

IV: Chemical corrosion resistance, long service life.

VI: Wide temperature working range, wide applicability.

5. Product application

I: Industrial automation device: angle detection and control of mechanical arm, robot and other rotating equipment; Position feedback of industrial motors, servo motors and other rotating equipment; Signal transmission of various industrial control systems.

II: New energy equipment:Wind turbine blade Angle detection; azimuth angle detection of solar tracking device; angle sensing for electric vehicle steering systems.

III: Mobile machinery and equipment: angle detection of rotating joints such as construction machinery and forklift; Track Angle detection of crawler agricultural machinery; Rotary arm angle measurement of building lifting machinery.
