600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
600V 20 AWG 7 Pin 1.5mm Industrial Wiring Harness
Specifications
Brand Name :
SYH
Model Number :
SYH-I019
Certification :
UL、IATF、ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
50000 PCS/per week
Delivery Time :
3-15 days
Packaging Details :
100/200/300/500pcs per bag , then outside carton
Wire gauge :
20AWG
Pin :
7pins
Voltage :
600V
Pitch :
1.5mm
Wire length :
50mm or Custom
Color :
orange
Length :
Rubber,Silica,PE,Teflon...etc
Certificates :
RoHS,CE,UL,TUV,ISO
Description

7Pins Industrial Wiring Harness 1.5mm Pitch 20AWG O-ring Connector Industrial Cable

Product introduction

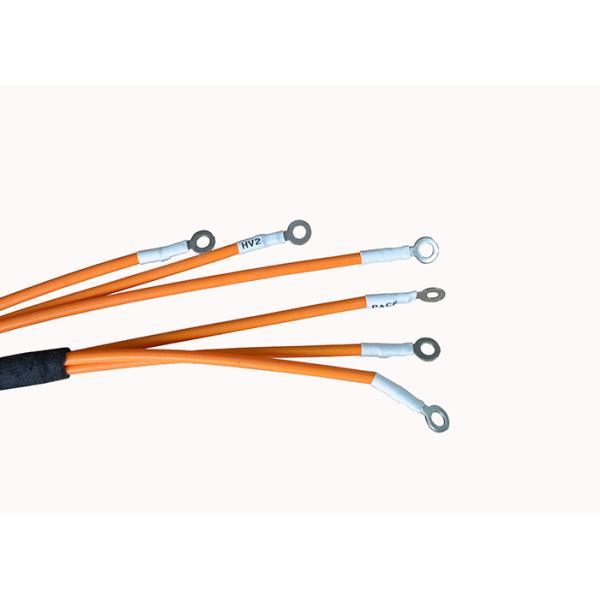

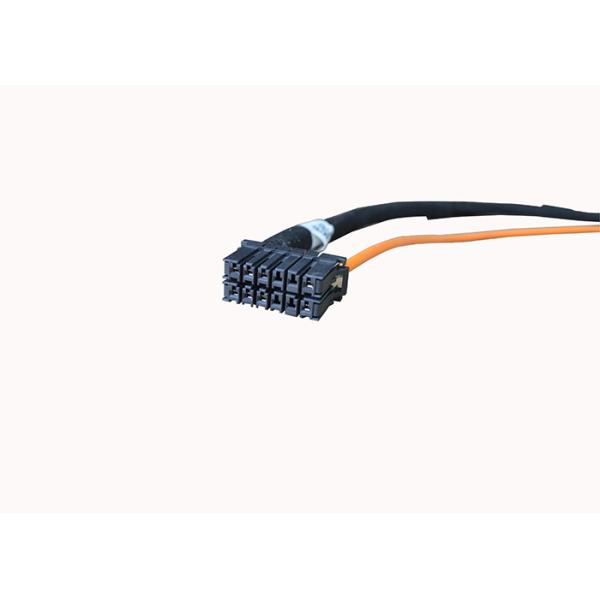

The wire harness is designed and manufactured with two connectors :one is JST(or customosized) and another is O-ring .It is manufactured from superior materials, this harness ensures peerless quality and uncompromising reliability. This wiring harness can also come in handy in other situations. Adopot 7 wires of 20AWG ,the wire leSngth is customized .the pitch is 1.5mm , Before deliver the products will have professional breakover and pulling force test .can provide sample for evaluating and testing . the sample is free charge ,but customer should pay for the sample shipping cost .(Except for complex samples).

Parameters:

Connectors JST 1.5mm Pitch 7pins or customized
Wire length 50mm or According to the customers' requirements
Wire 20AWG
Wire Color Customized
Test Professional breakover and pulling force test before goods sent out
Cable materials Wire harness can be UL/CSA,CE, VDE,SAA,CB etc and pure copper
Cable color,lenght According to the customers' requirements
Insulation Rubber,Silica,PE,Teflon...etc
Connector Type Original OEM or Replacement
Application Automotive,Electrical,Industry
Service OEM and ODM products are acceptable
Order Quantity Small quantity can be accepted,like 100pcs
Samples Samples confirmed first before mass production
Certificates RoHS,CE,UL,TUV,ISO
Lead time Small orders under 500pcs is 7-10days,exceed 1000pcs 2-3weeks
Payment PayPal,Western Union,MoneyGram,Escrow,L/C,T/T

A wire harness can be simple, two wires with basic terminals on the end, or a complex web of many conductors with a variety of connectors and terminations. In addition, wire harnesses often need special shapes, sheathing, mechanical fastening and over molded connectors, grommets or strain reliefs. Our cable can assist in the custom wire harness design or quote your existing wire and cable harness design. We’re ready to help solve your cable assembly and wire harness needs.

Our Advantages:

1. Factory and trade integration,

2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;

6. High Trade Assurance Level

Our Services

1. Design and provide drawings service

2. Free sample service

3. Respond in time

4. OEM, ODM service

5. After sales guarantee service

Shipping:

1. FedEx/DHL/TNT/UPS/EMS/Aramex/SF for samples, Door-to-Door;

2. By Air or by Sea for batch goods;Airportport receiving;

3. Customers specifying freight forwarders or negotiable shipping methods!

4. Delivery Time: 3-7 days for samples; 10-30 days for batch goods.

AWG(AMERICAN WIRE GANGE) specification:

AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ) AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ)
4/0 11.684 107.2193 0.16 27 0.3607 0.1022 198.74
3/0 10.4038 85.0114 0.2 28 0.3200 0.0804 214.32
2/0 9.2659 67.4321 0.26 29 0.2870 0.0647 266.47
1/0 8.2525 53.4880 0.32 30 0.2540 0.0507 640.26
1 7.3482 42.4086 0.41 31 0.2261 0.0401 429.56
2 6.5430 33.6240 0.51 32 0.2302 0.0324 531.65
3 5.8268 26.6652 0.65 33 0.1803 0.0255 674.98
4 5.1892 21.1492 0.82 34 0.1600 0.0201 857.28
5 4.6203 16.7657 1.03 35 0.1422 0.0159 1085.00
6 4.1148 13.2980 1.63 36 0.1270 0.0127 1361.02
7 3.6652 10.5509 2.06 37 0.1143 0.0103 1680.27
8 3.2639 8.3669 2.6 38 0.1016 0.0081 2126.60
9 2.9058 6.6315 3.28 39 0.0889 0.0062 2777.60
10 2.5883 5.2615 4.14 40 0.0787 0.0049 3540.64
11 2.3038 4.1684 5.21 41 0.0711 0.0040 4339.99
12 2.0523 3.3081 6.56 42 0.0635 0.0032 5444.09
13 1.8288 2.6268 8.28 43 0.0559 0.0025 7030.07
14 1.6281 2.0820 10.44 44 0.0508 0.0020 8506.39
15 1.4503 1.6521 10.44 45 0.0447 0.0016 10984.5
16 1.2903 1.3076 13.18 46 0.0399 0.0012 138.04
17 1.1506 1.0398 16.58 47 0.0356 0.0010 17360.0
18 1.0236 0.8229 20.95 48 0.0315 0.0008 22129.0
19 0.9119 0.6530 26.40 49 0.0282 0.0006 27615.9
20 0.8128 0.5189 33.23 50 0.0251 0.0005 34716.4
21 0.7239 0.4116 41.89 51 0.0224 0.0004 43938.0
22 0.6426 0.3243 53.16 52 0.0198 0.0003 55926.3
23 0.5740 0.2588 66.62 53 0.0178 0.0002 69439.9
24 0.5105 0.2047 84.22 54 0.0157 0.0002 88516.0
25 0.4547 0.1624 106.19 55 0.0140 0.0002 112481.2
26 0.4039 0.1281 134.59 56 0.0124 0.0001 111714.1
