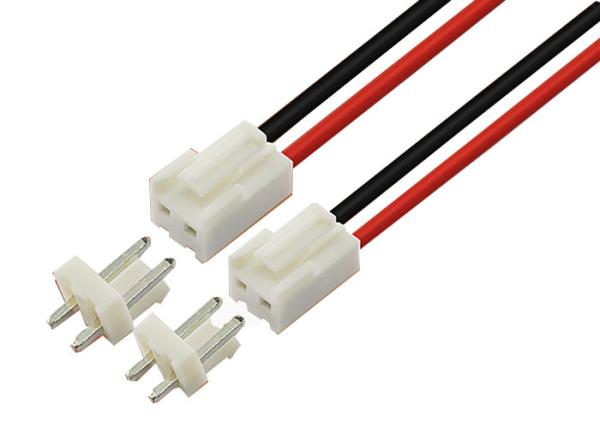

Strip Harness Assembly 2 / 3 / 4 pins 22AWG Tinned Wire To Board Connection Wire Harnes

Product information:

A Wire Harness, also known as a cable harness or wiring assembly, is a grouping of wires, cables, or subassemblies designed to transmit signals or electrical power. A basic Wire Harness may include as few as three discreet components, while the more classic harnesses include many more wires and other passive, and potentially active, components.

A wire harness is typically designed to simplify the manufacture of a larger component, and is designed based on the geometric and electrical requirements of the equipment it is to be installed in.

Parameter:

Wire harnesses are commonly used in the electronics industry, the automotive industry, in the manufacture of construction machinery and industrial equipment, as well as in the manufacture of white goods such as washing machines and dryers, refrigerators, and other household appliances.

The wire harness simplifies the building of these larger components by integrating the wiring into a single unit, or several units, for “drop-in” installation. By binding the many wires, cables, and subassemblies into a harness, the OEM or installer only has one component to install. In addition, a wire harness allows the completed assembly to be better secured against the effects of abrasion and vibration, and by constricting the wires into a non-flexing bundle, usage of space is optimized.

Female and male connectors information :Plug-in connectors are divided into male and female ends, one side of the plug (protruding connector) is the male end, and the other side of the jack (recessed connector) is the female end, and the male and female terminals are injection molded. The two connectors have the difference between male and female, that is, the widely used connector, namely CONNECTOR. Generally, it refers to an electrical connector, that is, a device that connects two active devices. The male and female terminals are inserted into each other to achieve the working principle of transmitting current or signals. It is widely used in lighting, communications, medical, sensing, automotive, etc. Electronic device industry. The use of male and female end-to-end connectors has the following advantages:

1. Improve the production process:

The connector simplifies the assembly process of electronic products.

2. Easy maintenance:

If an electronic component fails, the failed component can be quickly replaced when the connector is installed;

3. Easy to upgrade:

With the advancement of technology, the components can be updated when the connector is installed, and the old ones can be replaced with new and more perfect ones;

4. Improve design flexibility:

The use of connectors gives engineers greater flexibility when designing and integrating new products, and when using components to form systems.
