0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
0.5mm Electrical Cable Harness
Specifications
Brand Name :
SYH
Model Number :
SYH-E017
Certification :
UL、IATF、ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
50000 PCS/per week
Delivery Time :
3-15 days
Color :
5 colors or customized
Wire gauge :
22AWG
Wire length :
50mm or customized
Tinned length :
1mm or customized
Service :
OEM,ODM
Voltage :
600V
Description

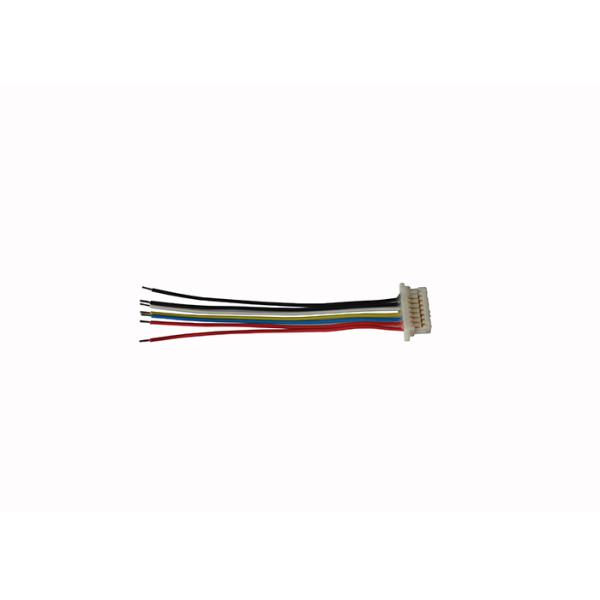

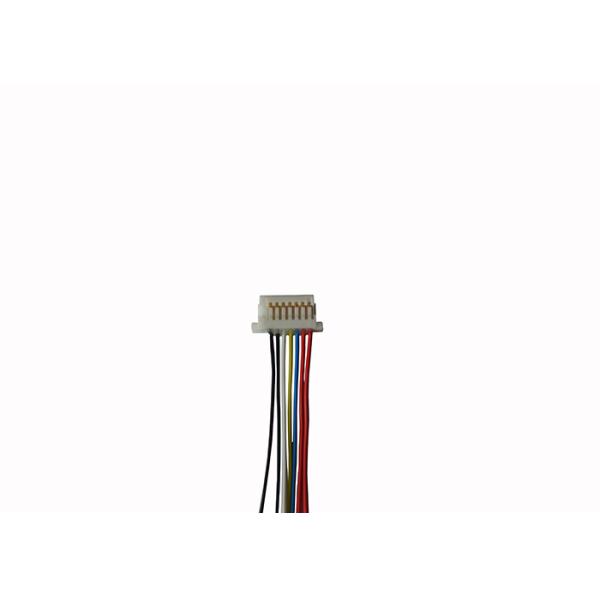

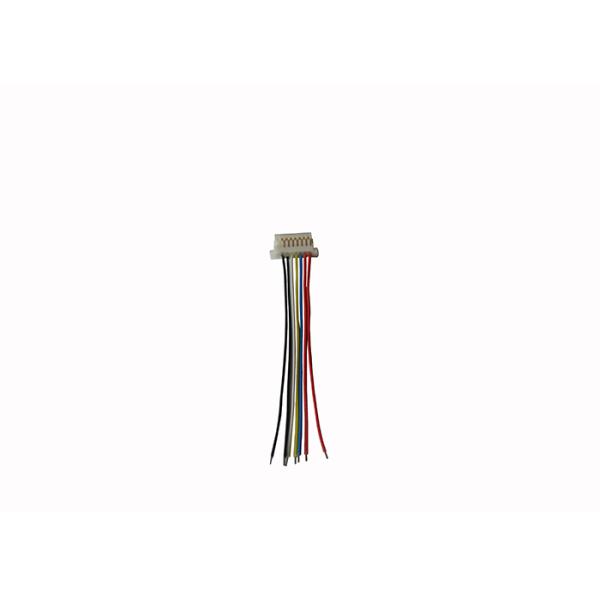

0.5mm Pitch Electronic Wiring Harness 7pins 50mm PVC Housing Electronic Connection Cable

Product introduction

A wire harness can be simple, two wires with basic terminals on the end, or a complex web of many conductors with a variety of connectors and terminations. In addition, wire harnesses often need special shapes, sheathing, mechanical fastening and over molded connectors, grommets or strain reliefs. Our cable can assist in the custom wire harness design or quote your existing wire and cable harness design. We’re ready to help solve your cable assembly and wire harness needs.

Each wire has tinned at the end of the wire ,The whole wire harness are manufacture according to customer requirements such as connector, length ,tinned length ,insulation length color order and etc.

Conductor Sizes:We can extrude conductors as small as 34 gauge and as large as 12 gauge. These can be combined to create a mixed gauge cable.

Conductor Colors:Our custom wire and cable harness capabilities are extensive, from 1 conductor to cables with more than 50 conductors. Custom colors, striping and marking are available to meet your wiring harness design requirements.

AWG(AMERICAN WIRE GANGE) specification:

AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ) AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ)
4/0 11.684 107.2193 0.16 27 0.3607 0.1022 198.74
3/0 10.4038 85.0114 0.2 28 0.3200 0.0804 214.32
2/0 9.2659 67.4321 0.26 29 0.2870 0.0647 266.47
1/0 8.2525 53.4880 0.32 30 0.2540 0.0507 640.26
1 7.3482 42.4086 0.41 31 0.2261 0.0401 429.56
2 6.5430 33.6240 0.51 32 0.2302 0.0324 531.65
3 5.8268 26.6652 0.65 33 0.1803 0.0255 674.98
4 5.1892 21.1492 0.82 34 0.1600 0.0201 857.28
5 4.6203 16.7657 1.03 35 0.1422 0.0159 1085.00
6 4.1148 13.2980 1.63 36 0.1270 0.0127 1361.02
7 3.6652 10.5509 2.06 37 0.1143 0.0103 1680.27
8 3.2639 8.3669 2.6 38 0.1016 0.0081 2126.60
9 2.9058 6.6315 3.28 39 0.0889 0.0062 2777.60
10 2.5883 5.2615 4.14 40 0.0787 0.0049 3540.64
11 2.3038 4.1684 5.21 41 0.0711 0.0040 4339.99
12 2.0523 3.3081 6.56 42 0.0635 0.0032 5444.09
13 1.8288 2.6268 8.28 43 0.0559 0.0025 7030.07
14 1.6281 2.0820 10.44 44 0.0508 0.0020 8506.39
15 1.4503 1.6521 10.44 45 0.0447 0.0016 10984.5
16 1.2903 1.3076 13.18 46 0.0399 0.0012 138.04
17 1.1506 1.0398 16.58 47 0.0356 0.0010 17360.0
18 1.0236 0.8229 20.95 48 0.0315 0.0008 22129.0
19 0.9119 0.6530 26.40 49 0.0282 0.0006 27615.9
20 0.8128 0.5189 33.23 50 0.0251 0.0005 34716.4
21 0.7239 0.4116 41.89 51 0.0224 0.0004 43938.0
22 0.6426 0.3243 53.16 52 0.0198 0.0003 55926.3
23 0.5740 0.2588 66.62 53 0.0178 0.0002 69439.9
24 0.5105 0.2047 84.22 54 0.0157 0.0002 88516.0
25 0.4547 0.1624 106.19 55 0.0140 0.0002 112481.2
26 0.4039 0.1281 134.59 56 0.0124 0.0001 111714.1

Production Capacity:

We Make Around Five Million Crimps Per Month and We Have Ambitious Expansion Plans to Make Around Ten Million Crimps Per Month .

Competitivenes…

We Maintain Competitiveness with the Following Steps

  • Procurement of Raw Materials from the Most Cost Effective Sources,
  • Keeping the Least Inventory.
  • Adoption of the Best Process to Increase Productivity to the Optimum Level.
  • Adoption of the Latest Techniques,
  • Value Engineering as a Continuous Process
  • Best Quality Product with Competitive Price.
  • 100% Acceptance with Customers (Zero Defects)

Our Advantages:

1. Factory and trade integration,

2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;

6. High Trade Assurance Level

Our Services

1. Design and provide drawings service

2. Free sample service

3. Respond in time

4. OEM, ODM service

5. After sales guarantee service

0.5mm Electrical Cable Harness

0.5mm Electrical Cable Harness

0.5mm Electrical Cable Harness
