150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
150mm Electronic Wiring Harness
Specifications
Brand Name :
SYH
Model Number :
SYH-E015
Certification :
UL、IATF、ISO
Place of Origin :
JIANGSU,CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
50000 PCS/per week
Delivery Time :
3-15 days
Packaging Details :
100/200/300/500pcs per bag , then outside carton
Housing :
PVC or customized
Wire length :
100mm or customized
Color :
4 color
Wire gauge :
22AWG
Pin :
4pins or customized
Service :
OEMA ,ODM
Description

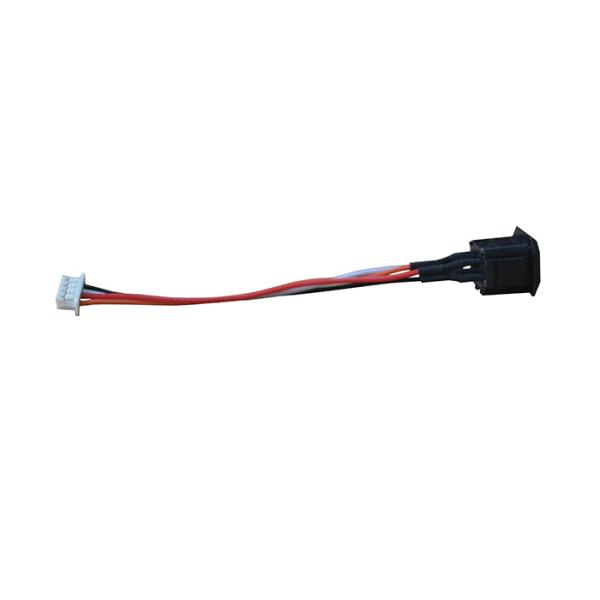

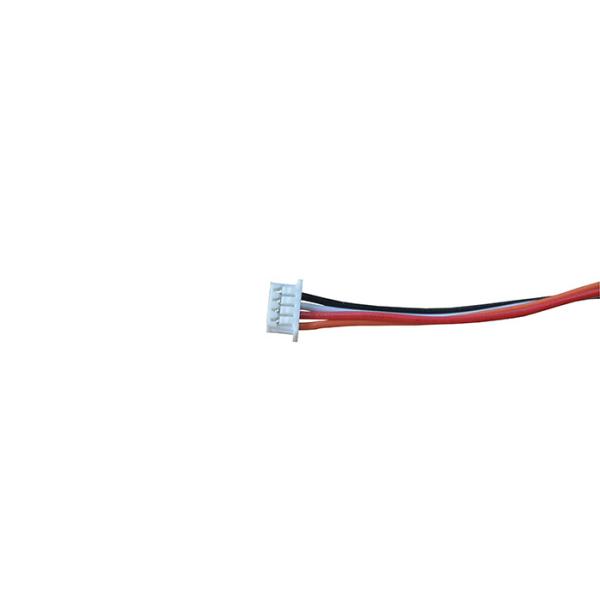

4Pins Electronic Wiring Harness 150mm PVC Housing 600V Connection Electronic Equipment Wire

Product introduction

We Use Single/Multi Core Cables, Armored Cables,shielded Cables and Also Pvc Wires for Manufacture of Our Harnesses.we Use Imported Connectors Such as Sumitomo, Tyco, Berg and Molex for Specific Applications of Our Customers. We Also Have Good Tie-ups with Best Manufacturers of Couplers and Terminals . Polyamides and Master Batches from Srf and Dupont.

We Make Assembly Wiring Harness for the Speedometers, Tank Units and Electrical Gauges. We Make Harnesses for Elevators, Metering Pumps, Programmed Doors,textile Machines, Mold Machine Controllers Etc.

The Main Agenda of the Company Since Inception Has Been to Provide Its Customers with World Class Products at Competitive Prices and Fortify Consumer Trust.

Manufactured from superior materials, this harness ensures peerless quality and uncompromising reliability. This wiring harness can also come in handy in other situations.

Parameters:

Lead time 3-15 days
Temperature resistance 105℃
Connectors Female and male
Wire 22awg
Wire Color 4 or customized
Wire lenght 100mm or According to the customers' requirements
Certificates RoHS,CE,UL,TUV,ISO
MOQ Small quantity can be accepted
Sample Samples confirmed first before mass production
Sevice OED ODM accepted
Delivery Time 3-15 days upon receipt of payment
Packaging 00/200/300/500pcs per bag , then outside carton
Test Professional breakover and pulling force test before goods sent out

AWG(AMERICAN WIRE GANGE) specification:

AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ) AWG Outer diameter (mm) Cross-sectional area(mm²) Resistance (MΩ)
4/0 11.684 107.2193 0.16 27 0.3607 0.1022 198.74
3/0 10.4038 85.0114 0.2 28 0.3200 0.0804 214.32
2/0 9.2659 67.4321 0.26 29 0.2870 0.0647 266.47
1/0 8.2525 53.4880 0.32 30 0.2540 0.0507 640.26
1 7.3482 42.4086 0.41 31 0.2261 0.0401 429.56
2 6.5430 33.6240 0.51 32 0.2302 0.0324 531.65
3 5.8268 26.6652 0.65 33 0.1803 0.0255 674.98
4 5.1892 21.1492 0.82 34 0.1600 0.0201 857.28
5 4.6203 16.7657 1.03 35 0.1422 0.0159 1085.00
6 4.1148 13.2980 1.63 36 0.1270 0.0127 1361.02
7 3.6652 10.5509 2.06 37 0.1143 0.0103 1680.27
8 3.2639 8.3669 2.6 38 0.1016 0.0081 2126.60
9 2.9058 6.6315 3.28 39 0.0889 0.0062 2777.60
10 2.5883 5.2615 4.14 40 0.0787 0.0049 3540.64
11 2.3038 4.1684 5.21 41 0.0711 0.0040 4339.99
12 2.0523 3.3081 6.56 42 0.0635 0.0032 5444.09
13 1.8288 2.6268 8.28 43 0.0559 0.0025 7030.07
14 1.6281 2.0820 10.44 44 0.0508 0.0020 8506.39
15 1.4503 1.6521 10.44 45 0.0447 0.0016 10984.5
16 1.2903 1.3076 13.18 46 0.0399 0.0012 138.04
17 1.1506 1.0398 16.58 47 0.0356 0.0010 17360.0
18 1.0236 0.8229 20.95 48 0.0315 0.0008 22129.0
19 0.9119 0.6530 26.40 49 0.0282 0.0006 27615.9
20 0.8128 0.5189 33.23 50 0.0251 0.0005 34716.4
21 0.7239 0.4116 41.89 51 0.0224 0.0004 43938.0
22 0.6426 0.3243 53.16 52 0.0198 0.0003 55926.3
23 0.5740 0.2588 66.62 53 0.0178 0.0002 69439.9
24 0.5105 0.2047 84.22 54 0.0157 0.0002 88516.0
25 0.4547 0.1624 106.19 55 0.0140 0.0002 112481.2
26 0.4039 0.1281 134.59 56 0.0124 0.0001 111714.1

Production equipment :

Fully Automatic Wire Cutting Striping and Crimping Machine

Wire Cutting and Stripping Machine

Multi Core Cable Cutting and De-sheathing Machine

Pneumatic Core Stripper

Wire Cutting Stripping and Twisting Machine

Microprocessor Based Battery Cable Cutting Machine

Pneumatic Cable Outer Jacket Removal Machine

Pneumatic Crimping Machine for Scattered Terminals

Semi Automatic Crimping Machines

Electronic Crimping Presses

Applicators

Toggle Crimping Machines

Wire Stripping and Twisting Machines

Soldering Station

Coupler Assembly Station

Air Compressor ( 3 Hp and 5 Hp)

25 Kva Generator – 1 No

Microprocessor Based Harness Tester

(1024 Points and 64 Points)
