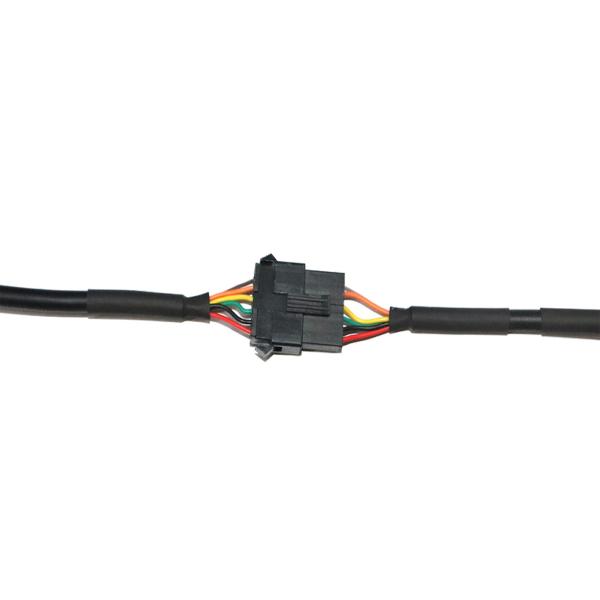

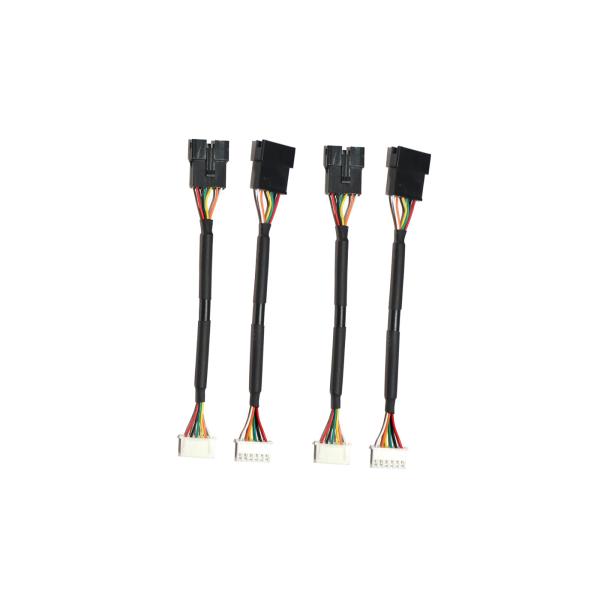

SM2.54 Terminal Wire Oxygen Generator Harness UL2464 Sheathed Wire Medical Wiring Harness

Parameters:

About medical wiring harness:

Medical wiring harness is the circuit of medical electronic equipment. It can be said that if there is no wiring harness, medical wiring electronic equipment will not function properly. Medical wiring harnesses are made by cutting electronic wires of appropriate length according to the drawings, and then crimping contact terminals (connectors) made by copper stamping with wires and cables. Bundle the components that form the connection circuit.

Due to the high-risk and high-precision characteristics of the medical industry, medical equipment standards are different from general equipment standards. As far as the strictness of the standards is concerned, the inspection standards for medical devices are the most stringent.

Sanyouhe Medical Harness Solutions Engineering Department provides customers with a comprehensive range of products and services, from engineering design to the production of cables and cable assemblies. As a wire harness system supplier, we provide technical support and development to meet your product customization needs.

The composition of the wiring harness:
The components of the ordinary wiring harness are: wires, terminals, plastic parts.
The composition of complex wiring harnesses is to be added: tape, cable ties, sleeves, jackets, labels, etc.

Sheath (HSG)
Sheath (plastic shell), usually made of plastic, inserts the wire of the crimped terminal into it to ensure the reliability of the connection. The main materials are PA6, PA66, ABS, PBT, PP, etc. The jacket (HSG) is divided into There are two types of F (female) plastic shells and M (male) plastic shells. Most of these shells have a locking mechanism common to F / M.

Terminal
A shaped hardware component, crimped on the wire to connect different wires to transmit signals, divided into male terminal, female terminal, ring terminal and round terminal The material is mainly brass and bronze (brass is slightly lower in hardness than bronze), of which brass accounts for a larger proportion.

Wire (low-voltage wire, 60-600V)

① Conventional wire type: (usually American standard line UL)
National standard line: QVR, QFR, QVVR, QBV, QBVV, etc.
Japanese standard line: AV, AVS, AVSS, AEX, AVX, CAVUS, CIVUS, etc.
German mark: FLRY-A, FLRY-B, etc.
American standard line: SXL, TXL, etc.
Common specifications include wires with a nominal cross-sectional area of ​​0.35, 0.5, 0.75, 1.0, 1.5, 2.0, 2.5, 4.0, 6.0, etc.

② Composition of electric wire
From inside to outside
1. Conductor (copper wire)
2. Insulator (PVC, SR-PVC, PP, PE.FOAM-SKIN)
3. Isolation layer (aluminum foil, winding, braiding)
4. Coating (PVC, PU), etc.
