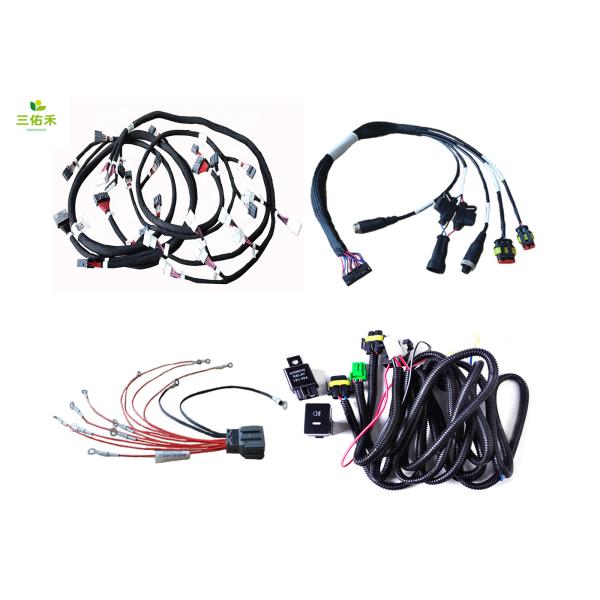

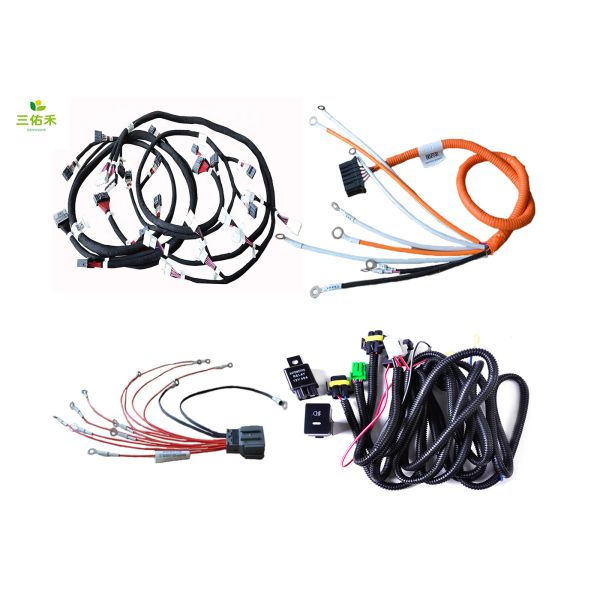

Factory Manufacturing Custom Wiring Harness Auto Electrical Cables Wire Harness Assembly

Product information :

Wire harness is a bridge of communication between two or more isolated electronic circuits, so as to allow current to flow and realize various functions of various electronic components. It is an indispensable part of various electrical appliances and electronic equipment. Kind of parts.

The components of the ordinary wiring harness are: wires, terminals, and plastic parts.

Complicated wiring harness composition needs to be added: tape, cable tie, sleeve, sheath, label, etc.

If you can't find the exact product you need in the pictures,please don't go away.Just contact me freely or send your sample and drawing to us.We will reply you as soon as possible.

Parameter:

SYH manufactures high quality custom wiring harness . Irrespective of the length and purpose, SYH can make custom low voltage differential cable assemblies to fit your needs. Each custom cable assembly is built to our customers’ specifications and is 100% quality tested. Our Engineers have designed over 10,000 unique cables and are part of the design process from start to finish, ensuring that each and ever customer receives exactly what they are looking for.

Our Advantages:

1. Factory and trade integration,

2. Competitive price;
3. Timely delivery;
4. Technical support;
5. Samples for free;

6. High Trade Assurance Level

Our Services

1. Design and provide drawings service

2. Free sample service

3. Respond in time

4. OEM, ODM service

5. After sales guarantee service

About inspection: How do we inspect the wiring harness?

1. Appearance: It is not allowed to expose the core due to damage to the wire

2. Size; use steel ruler to control according to drawings

3. Electrical: Conduct continuity test with a harness tester in accordance with the drawings

4. Tinning/tinning: make sure that the tinning is smooth, there is no tinning, no yellowing and black lines, etc.; and soldering can not be soldered or stranded

5. Core wire; use a steel ruler to measure the length of the core wire with tin and other core wires with tin length less than the tolerance

6. Use one-to-one styling inspection for styling products. Acetate cloth cannot be put on the housing

7. Misalignment: confirm the line sequence according to the drawing requirements

8. Housing pin hole detects whether the housing pin hole is deformed

9. Tinned wire: There is no whitening of the tinned wire at both ends, but whitening is found. Use anhydrous alcohol to clean it.
