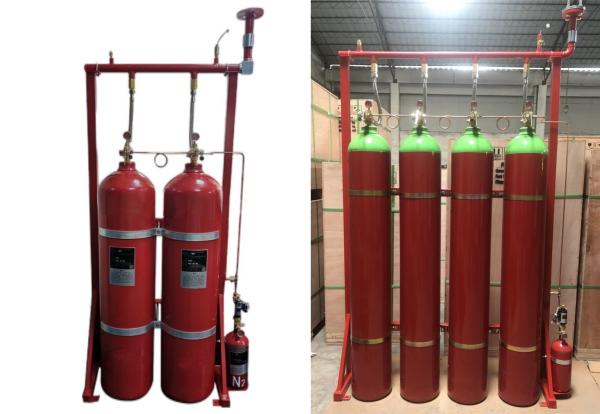

IG 100 Nitrogen Inert Gas Fire Suppression System DC24V 1.6A
IG 100 Nitrogen Inert Gas Fire Suppression System DC24V 1.6A
Specifications
Brand Name :
Air Giant
Model Number :
QMD20/80, QMD30/80
Certification :
CAL,CMA,CNAS,ILAC-MRA,CCC
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C , D/P, T/T, Western Union, Paypal, Credit card
Supply Ability :
300 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Plywood outer box with bubble bag or paper
Cylinder Volume :
80L
Capacity :
20kg, 27.57kg
Pattern of extinguishing :
Enclosed flooding
Agent :
IG100(100% pressurized nitrogen)
Working pressure :
20MPa, 30MPa
Max. working pressure :
23.2MPa, 36.6 MPa
System start mode :
Electrical automatic, electrical manual, mechanical emergency star
Color :
Red
Description

Inert Gas Nitrogen IG100 Fire Extinguishing System Without Residue For Library

IG-100 uses Nitrogen for a clean, safe and 100% ecological extinguishing. This gas is widely used in variety of extinguishing systems due to its excellent pressurization conditions.

In this case it complies with equal smothering efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a percentage of oxygen suitable for occupied areas. Because of this feature, people can be protected where there is the possibility if they are in the enclosure area at the time of the fire, ensuring their safe evacuation both in terms of the level of oxygen in the room, and the absence of chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during the evacuation.

It is highly recommended for class A, B and C fires. The system operates by total flooding of the room, ensuring discharge in or less than 10 seconds with the safety conditions mentioned above. this makes it possible to adapt the quantity of extinguishing agent required, to the storage space available for the cylinders.

The system is optimized for the worst case conditions, all components are certified to ensure the strictest performance. These are necessary for the storage, detection, release and discharge of the agent at the right moment.

Parameters

No. Specification Technical Parameter
1 Working Pressure 20MPa 30MPa
2 Device Model QMD20/80 QMD30/80
3 Capacity 80Ltr 80Ltr
4 Filling Capacity of Gas 20kg 24.68kg
5 Outside Diameter of Cylinder Φ267mm Φ267mm
6 Height of Cylinder 1910mm 1770mm
7 Spraying Time ≤120s ≤120s
8 Max Filling Rate 0.25kg/L 0.309kg/L
9 Power DC24V/1.6A DC24V/1.6A
10 Nitrogen Pressure of Driving Device 6.0±1.0MPa(20℃) 6.0±1.0MPa(20℃)
11 Condition of Reserving Room for Container temperature: 0~50℃ temperature: 0~50℃
12 Max Working Pressure 23.2MPa 36.6MPa
13 Min Working Pressure 18MPa 27MPa

Application

Electronic computer room, a data processing center, telecommunications facilities, process control, expensive medical equipment, industrial equipment, library, museum and art gallery, clean room, anechoic chamber, emergency power facilities, flammable liquid storage area, etc.

The place where the fire is easy to happen, like paint-spraying production line, aging-electrical equipment, rolling machine, printing machine, oil switch, oil immersed transformer, melt impregnating tank, tank, large generators, drying equipment, cement pro duction process of pulverized coal, and the ship's engine room, cargo hold, etc.

Advantages

  • Suitable for occupied areas
  • Electrically non – conductive
  • Chemically inert
  • Colourless, odourless and flavourless
  • No residue to clean up after the discharge
  • Zero Ozone Depletion Potential (ODP)
  • No greenhouse effect
  • No global warming iMPact
  • No decomposition products
  • No fog and no loss of post-discharge visibility
  • Non corrosive/toxic
  • Stored as a gas
  • Excellent post-discharge visibility
  • Very low refill cost.
  • Easy to obtain anywhere in the world

Packages

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

IG 100 Nitrogen Inert Gas Fire Suppression System DC24V 1.6A
