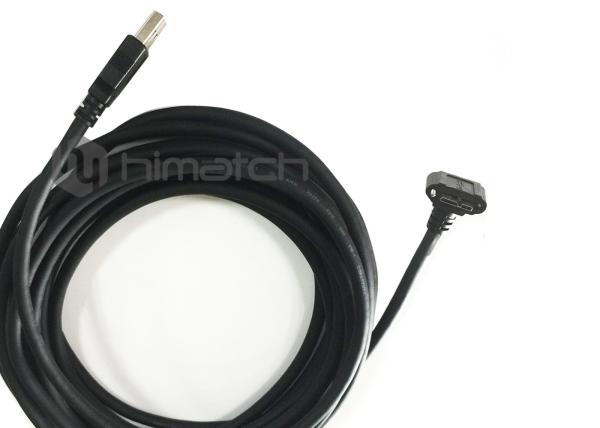

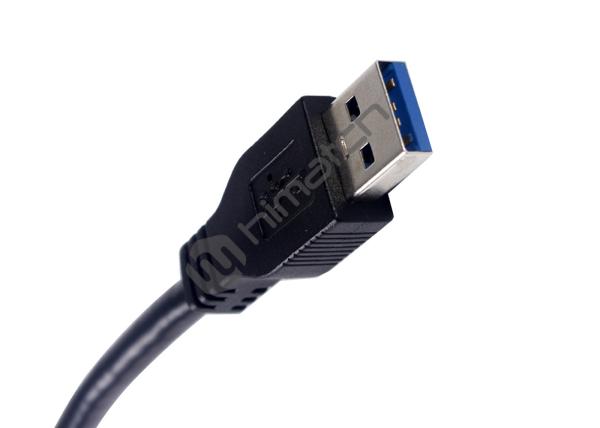

High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew
Specifications
Brand Name :
Himatch
Certification :
UL, RoSH, CE
Place of Origin :
China
MOQ :
30
Payment Terms :
T/T, Western Union
Supply Ability :
10000PCS
Delivery Time :
2-3 weeks
Packaging Details :
PE bag
Model Number :
X-USB3-A-MBSD-0500K
Name :
USB 3.0 vision cable
Cable OD :
6.3mm
Wire :
28WG
Conductor :
Tin plated copper
Voltage :
30V
Life time :
5 Millions
Connector :
USB 3.0 A to Micro B
Cable Jacket :
Halogen free PVC
Contact :
Gold plated
Color :
Black
Description

High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew

Description:

USB 3.0 camera link is a machine vision standard specification using the USB 3.0 interface. It is a world standard specification set up by three standardization bodies, AIA-EMVANJIIA. Now many PC standard USB3.0 interface, it will become the standard camera interface in the future.

USB 3.0 camera link cable is constructed by high shield USB 3.0 high speed cable, assemblied with industrial level USB 3.0 A and Micro B connector at each end, Overall foil and braid shielded provides EMI/RFI protection , twisted pair construction helps to minimize cross talk, super high-speed, and error-free transmission, they offer high performance for industrial USB3.0 camera, Scanners, Storage drives...

High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew

High Speed USB 3.0 Camera cable A to Micro B Vision Cables 5M With Thumbscrew

Specification:

Brand Himatch Model No. See Code Conductor: TC
Cable: 9 cores Wire: 28AWG Insulation: FMPE
Jacket: PVC Cable OD: 5.4mm Color: Black
Cable shape Round Using for CCD Camera UL Verified: Yes
Voltage: 30V Bending: 5 Millions OEM/ODM: Yes

Features

To provide up to 5 GBP/s super fast data transfer rate ;
Elastic PVC jacket: flexible, not easy to break, durable ;
Overlapping injection, not easy broken, durable, ensure error-free data transmission ;
Lining block: helps to reduce the signal interference, guarantee and 100% compatible with the current USB;

Application

Machine Vision Camera Extension
Security Camera Extension
Digital Signal and TV wall

Industrial CCD scaner

Industrial vision inspection system

Towed Cable wiring

In order to keep the good bending performance of the robot cable, improve the cable’s life time, and let the data transmission more stable, and prevent the accidental occurrence of the broken wire, it is very important obey the towing points

Bending radius.

The bending radius of the towed cable should be as big as possible. Recommended that the cable should be set ≥ 8D (D is the outer diameter of the cable)
