3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant
3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant
3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant
3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-CL-P-SS-0300G
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD22-USD78
Payment Terms :
T/T
Delivery Time :
2-3 weeks
Packaging Details :
PE bag
Supply Ability :
20000pcs/Month
Interface :
Shrunk Delta Ribbon
Cable color :
Beige
Bending :
1,000,000 cycles
Length :
2m
Cores :
11P+2C
Cable OD :
8.0
Wire :
28awg+24awg
Description

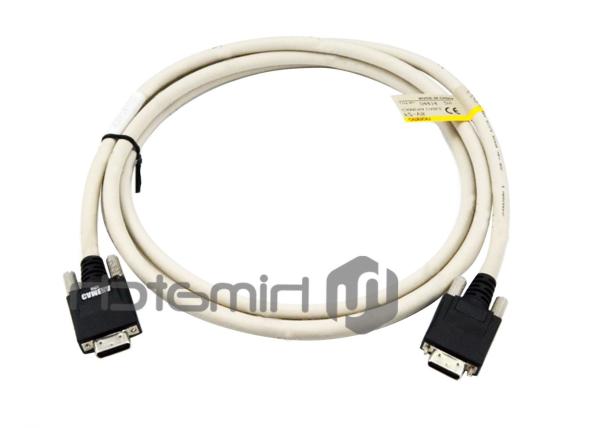

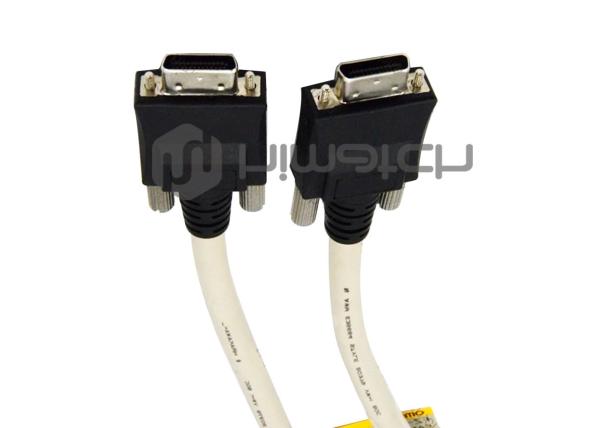

Full Shielded 3M MDR Camera Link Cable Assemblies , UL And RoHS Compliant

Description:

PoCL allow the camera to be powered by the imagine frame grabber through the single camera link cable. We manufactured this cable by UL certified high quality robotic cable, double shielding, al foil+ tinned copper shielding braiding with 3M® MDR 26pin connector, molded type with thumbscrew locking.U bending cycle:10 millions.

Specification:

Standard Camera Link Transmit Speed Max 2.04Gpbs
Installation mode Dynamic /Static Install radius (Min) 75mm
Wire gauge 28AWG Cable OD 9.1mm
Jacket Material PVC Connector MDR-MDR
Operation Temperature -20°C ~+ 80°C Max Length 15m

Features

Real-time signals transmission,low latency

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Flexible and reliable cable

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant

3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant

3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant

3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant

3M MDR to MDR 26Pin Camera Link Cable Assemblies Full Shielded UL And RoHS Compliant

Note:
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
