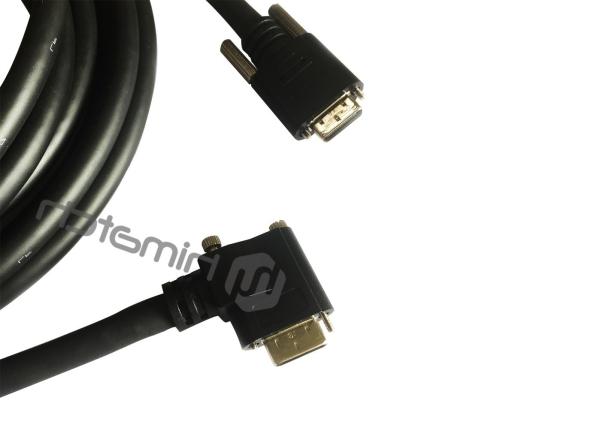

Full mode 85Hz SDR 26pin Cable Angle Left /Angle Right Mini Camera Cable With Power
Full mode 85Hz SDR 26pin Cable Angle Left /Angle Right Mini Camera Cable With Power
Full mode 85Hz SDR 26pin Cable Angle Left /Angle Right Mini Camera Cable With Power
Full mode 85Hz SDR 26pin Cable Angle Left /Angle Right Mini Camera Cable With Power
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-P-CL-SSR-XXXXK
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
mini camera link cable
Conductor :
High purity 99.99% Tinned copper
Cores :
11 stranded Pair +2 cores
Volatage :
30V
Interface :
Shrunk Delta Ribbon connector
Shield :
Al Foil, copper braiding Full double shield
Jacket :
PVC or TPU
Installation :
8D Minimum
Bending :
10 millions cycles
Entry :
Left angled or Right angle
Color :
Black
Description

Full mode 85Hz SDR 26 Pin Angle Left / Right Camera Link Cable with power

Description:

Himatch’s Full mold PoCL cable series are Power on Camera Link cable, support base mode, medium mode, full mode, 85Hz, constructed of plenum rated speical design full shield 11pair+2 cores robotic cable assembly with Japan Honda® or Amercian 3M brand SDR 26pin connector (Shrunk Delta Ribbon) connector at each end., special deisgn for minimize installation place, Angle left or angle right, and with robust molding with thumbscrew, They offer outstanding durability, and high performance for industrial CCD camera with SDR port.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE
Jacket Lead Free PVC Cable OD 8.0, 9.7 Color Black
Cable Round For CCD Certification UL
Voltage 30V Bending 10 millions OEM Yes

.

Features:

Special design,reasonable structure
Good material, environmental protection
Low loss, low crossing, low delay
Good impedance feature

PoCL: Power on Camera Link

Intra skews : 15ps/m, inter skews 50ps/m

Overall foil and braid shielded provides EMI/RFI protection

Life time: bending cycles 10 millions

RoHS and REACH compliant

Application

frame grabber

Industrial CCD camera

Industrial vision inspection system

Install Radius

When installing the the cable, please consider the allowable bending radius of the cable: if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 8 D (D is the outer diameter of cable) when installed.

Full mode 85Hz SDR 26pin Cable Angle Left /Angle Right Mini Camera Cable With Power
