5 Meters Camera Link Cable 26 Pin SDR Right Angled SDR To SDR Cable Assemblies
5 Meters Camera Link Cable 26 Pin SDR Right Angled SDR To SDR Cable Assemblies
5 Meters Camera Link Cable 26 Pin SDR Right Angled SDR To SDR Cable Assemblies
5 Meters Camera Link Cable 26 Pin SDR Right Angled SDR To SDR Cable Assemblies
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-P-CL-SSR-XXXXK
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
5m camera cable
Conductor :
Tinned copper
Cores :
11Pair +2C 28awg
Volatage :
30V
Interface :
SDR connector
Shield :
Full double shield
Jacket :
PVC
Installation :
8D Minimum
Bending :
10 millions cycles
Entry :
Right angle
Description

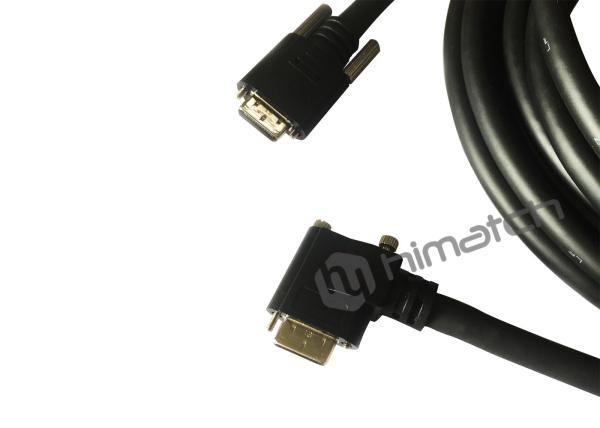

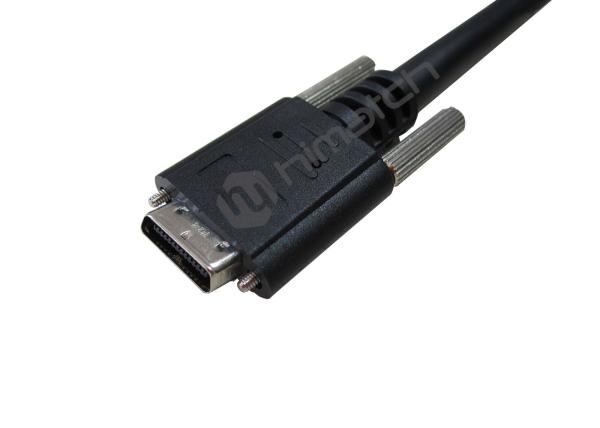

Camera Link 26 Pin SDR Right Angled Male to MDR Cable Assemblies, 5 meters

Description:

Himatch’s camera link cable built with special design flexible and durable shielding cable, Honda's SDR connector on each end, with robust molding with hand screw, one end with right angled entry, suitable for special design industrial CCD camera.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE
Jacket Lead Free PVC Cable OD 8.0, Color Black
Cable Round For ACC Certification UL
Voltage 30V Bending 10 millions OEM Yes

.

Features

High flexible cable, durable cable

Intra skews : 15ps/m, inter skews 50ps/m

Installation : Suitable for installation in dynamic site, R not less than 8D, D is cable outer diameter.

100% electronically tested

RoHS and REACH compliant

Application

Frame grabber

Machine vision system

Medical automation inspection system.
