SDR - SDR Cable / Mini Camera Cable For Industrial Machine Vision Cameras 5.0m
SDR - SDR Cable / Mini Camera Cable For Industrial Machine Vision Cameras 5.0m
SDR - SDR Cable / Mini Camera Cable For Industrial Machine Vision Cameras 5.0m
SDR - SDR Cable / Mini Camera Cable For Industrial Machine Vision Cameras 5.0m
Specifications
Brand Name :
Himatch or OEM
Model Number :
L-P-CL-SM series
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
15m camera cable
Conductor :
Tinned copper
Cores :
11P+2C
Volatage :
30V
Interface :
SDR (Shrunk Delta Ribbon ) connector , MDR
Cable OD :
8.0
Power :
Power over Camera Link
Jacket :
PVC
Insulation :
PP / FEP
Direction :
Down angled,/ up angled, straight
Description

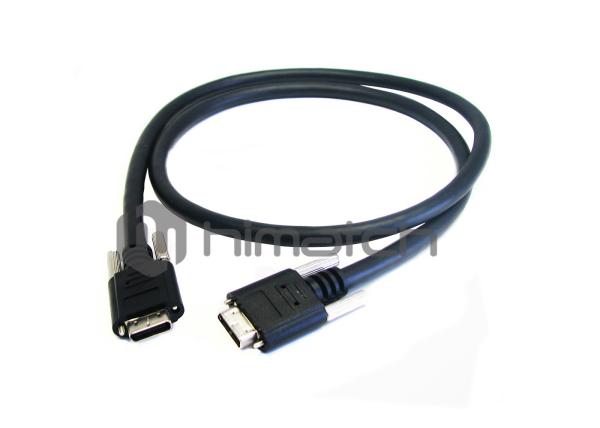

Mini SDR-MDR Camera Link Cable For Industrial Machine Vision Cameras 5.0m

Description:

Himatch’s SDR to MDR PoCL cable series are built with low skews 11 pairs cable, with SDR 26pos connector (Shrunk Delta Ribbon) , and qualfied MDR connector at each end, with thumbscrew lokcing, They offer durable, and high performance for machine vision system, such as the CCD camera.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE
Jacket Lead Free PVC Cable OD 8.0 Color Black
Cable Round For CCD Certification UL
Voltage 30V Bending OEM Yes

.

Features

Support medium, and full mode, 60Hz, 80Hz

Intra skews : 15ps/m, inter skews 50ps/m

Installation : Fixing site Minimum 8D

Moving site must be high durable cable, bending radius R minimum 8D

100% electronically tested

RoHS and REACH compliant

Application

Frame grabber

Machine vision system

Medical automation inspection system
