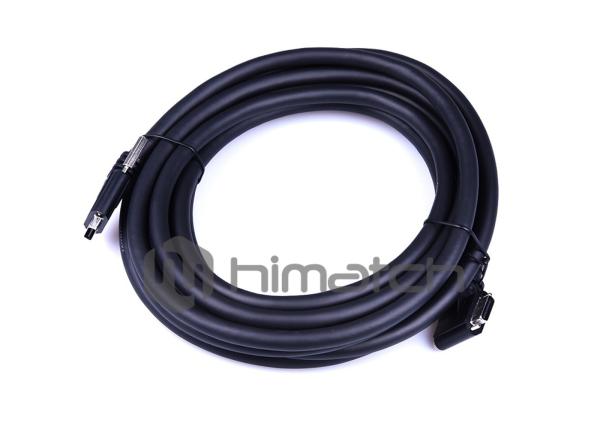

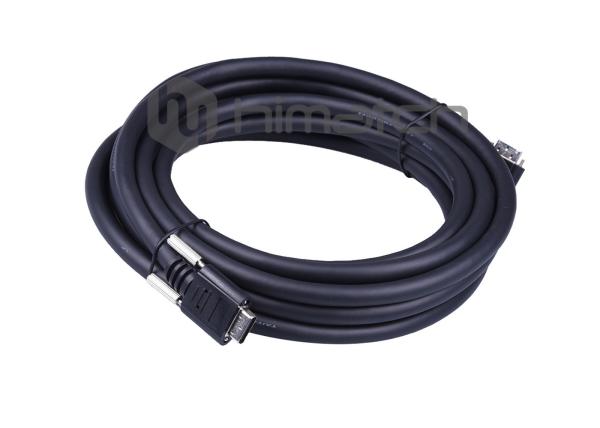

Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector
Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector
Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector
Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-P-CL-SSL-XXXXK
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD18-USD78
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
15-20 working days
Packaging Details :
PE bag, Box, Carton
name :
angled cam cable
Conductor :
Tinned copper
Cores :
11Pair +2C 28awg
Volatage :
30V
Interface :
Honda SDR connector
Shield :
Full double shield
Jacket :
PVC
Installation :
8D Minimum
Bending :
8 millions cycles
Entry :
down angled
Description

PoCL Mini Camera Link AIA Standard Vision Cable SDR Left Angle to SDR Straight Cable

Description:

Left Angle SDR Camera Link Cable was constructed by high flixible cable with Honda's SDR 26pin connector on both end. Left angled design provides special orientation connection.They are outstanding quality and high performance machine vision cable. widely used in frame grabber, machine vision, vision inspection equipment.

Specification:

Standard Camera Link Transmit Speed Max 2.04Gbps,
Installation mode Dynamic /Static Install radius (Min) 75mm
Wire gauge 28AWG Cable OD 9.1mm
Jacket Material PVC Connector SDR-SDR
Operation Temperature -20°C ~+ 80°C Max Length 15m

.

Features

Real-time signals transmission,low latency

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Flexible and reliable cable

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector

Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector

Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector

Left Angle SDR 26PIN to SDR 26PIN PoCL Camera Link Cable Assemblies With L Type 90 Degree SDR 26 Pin Male Connector

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
