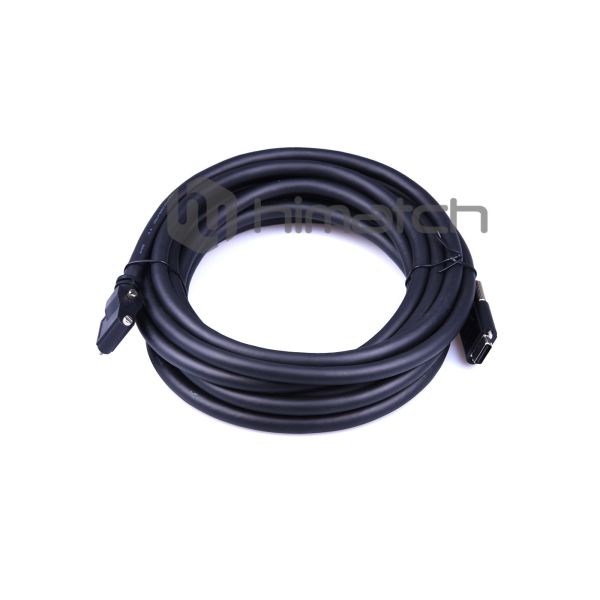

PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-P-CL-SSD-XXXXK
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
conveyor camera link cable
Conductor :
Tinned copper
Cores :
11Pair +2C 28awg
Volatage :
30V
Interface :
Honda SDR connector
Shield :
Full double shield
Jacket :
PVC
Installation :
8D Minimum
Bending :
10 millions cycles
Entry :
left angled
Description

High speed MDR 26 Pin Angle Left / Right Camera Link Cable with power

Description:

Himatch’s PoCL cable series are constructed of plenum rated 11pair+2 cores robotic cable ,with Honda® SDR 26pin connector (Shrunk Delta Ribbon) connector at each end., special deisgn Angle left or angle right, with robust molding with thumbscrew, They offer outstanding durability, and high performance for industrial CCD camera with SDR port.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE
Jacket Lead Free PVC Cable OD 8.0, 9.7 Color Black
Cable Round For CCD Certification UL
Voltage 30V Bending 10 millions OEM Yes

.

Features:

PoCL: Power on Camera Link

Support : base mode, medium mode, full mode, 60Mhz,70Mhz, 80Mhz

Intra skews : 15ps/m, inter skews 50ps/m

Overall foil and braid shielded provides EMI/RFI protection

Life time: bending cycles 10 millions

RoHS and REACH compliant

Application

frame grabber

Industrial CCD camera

Industrial vision inspection system

PVC Jacket Camera Link Cable Right Angle Up And Down For Industrial CCD Camera
