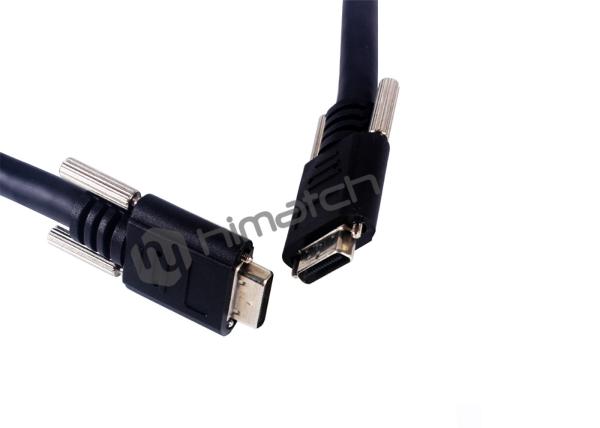

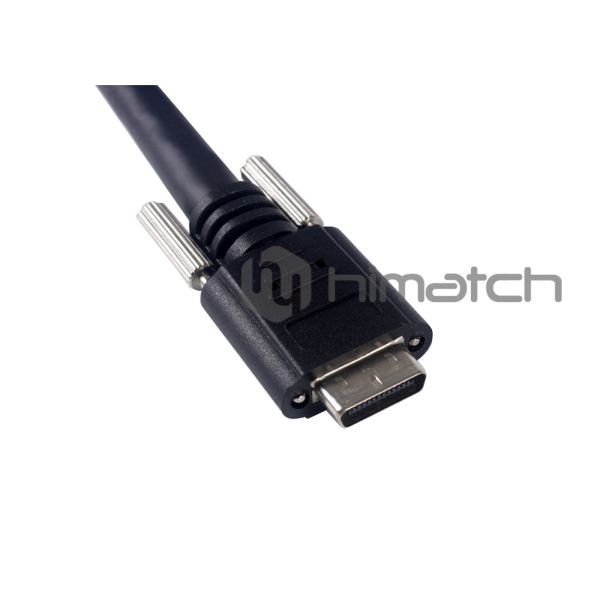

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG
PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG
PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG
PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG
Specifications
Brand Name :
Himatch or OEM
Model Number :
L-P-CL-SM series
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
5pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
5000pcs/week
Delivery Time :
3-7 working days
Packaging Details :
PE bag, Box, Carton
Name :
MDR to SDR/SDR to SDR Camera Link Cable
Conductor :
Tinned copper
Cores :
11Pair +2C 28awg
Volatage :
30V
Interface :
SDR (Shrunk Delta Ribbon ) connector , MDR
Cable OD :
9.8mm
Power :
PoCL
Jacket :
PVC
Insulation :
PP / FEP
Direction :
straight with thumbscrew
Color :
Black
Description

MDR/SDR To SDR 26 Pin Camera Link Cables with Power , 11 Pair Twisted +2C 28AWG

Description:

Quality Camera link Vision cable maker.Himatch constructed the cable by plenum rated flexible cable with HONDA® SDR 26pin,qualitified MDR 26pin at each end.They offer outstanding quality and high performance for industrial CCD camera.

Specification:

Brand Himatch Model No. See Code Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE
Jacket Lead Free PVC Cable OD 8.0 Color Black
Cable Round For ACC Certification UL
Voltage 30V Bending OEM Yes

.

Features

Real-time signals transmission,low latency

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Flexible and reliable cable

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG

PoLC 0.5-15M MDR/SDR To SDR 26Pin Camera Link Cable with 11 Pair Twisted +2C 28AWG

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
