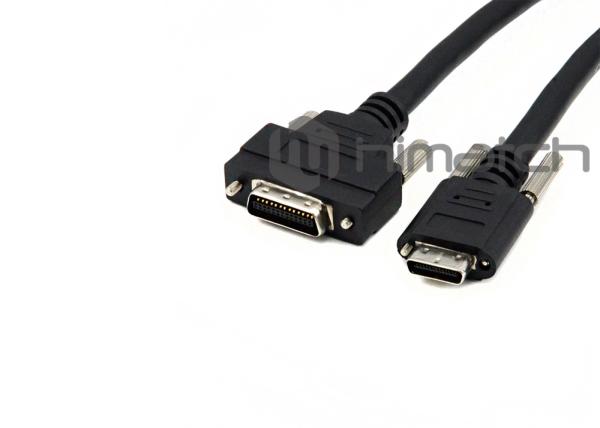

MDR to SDR Camera Link Cable For Industrial Camera And Frame Grabber 8M

Description:

Himatch’s camera link cable series are constructed of plenum rated 11pair+2 cores robotic cable with 3M^® SDR 26pin connector, or Honda^® SDR 26pin connector (Shrunk Delta Ribbon) connector, UL verified MDR connector at each end., with robust molding with thumbscrew, They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.

1. Meets Automated Imaging Association(AIA)Camera Link Standard;

2. Power over Camera Link (PoCL) Cable Assemblies;

3. Camera Link cable assemblies meet High Flex specification;

4. Bending over 10 million cycles and progressing(Locomotive track / Flex Rdius / Flex Speed);

5. Ultra low noise Mini Camera Link Cable Assemblies;

6. PoCL and Non PoCL type available;

7. Straight, Right angled, Up and Down Directions for MDR/SDR connectors;

8. Up to 15meters length, OEM/ODM 0.5-15m for short time delivery,

9. UL, Reach approve;

Specification:

Features

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Life time: bending cycles 10 millions ~20 millions

RoHS and REACH compliant

Connection Type: Straight MDR 26PIN to SDR 26PIN

And also can be customized as follows:

MDR to MDR (straight / right angle / left angel / up angel / down angel)

SDR to SDR (straight / right angle / left angel / up angel / down angel)

MDR to SDR (straight / right angle / left angel / up angel / down angel)

Customized Cable Length(upto15m): 0.5m, 1m, 2m, 3m, 5m, 6m, 8m, 10m...15m

Application

frame grabber

Industrial CCD camera

Industrial vision inspection system

Machine vision

Vision inspection equipment

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
