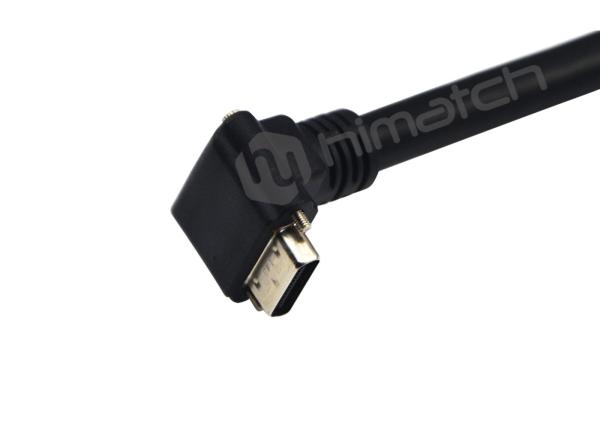

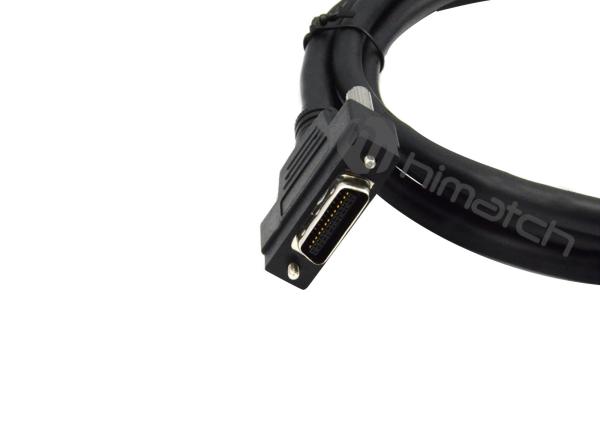

Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable
Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable
Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable
Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-CL-P-SM-0500K
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
MDR, Shrunk Delta Ribbon cable
Cable color :
Black
Bending :
1,000,000 cycles
Length :
5m
Cores :
11P+2C
Cable OD :
9.7
Wire :
28awg+28awg
Description

Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable

Description:

Quality Camera link cable manufacturer and exporter, Himatch's camera link cable are constructed of plenum rated 11pair+2 cores robotic cable with HONDA® SDR (Shrunk Delta Ribbon) 26pin connector, UL verified MDR connector at each end,offered outstanding quality and high performance for framer grabber.

Specification:

Standard Camera Link Transmit Speed Max 2.04Gbps,
Installation mode Dynamic /Static Install radius (Min) 75mm
Wire gauge 28AWG Cable OD 9.1mm

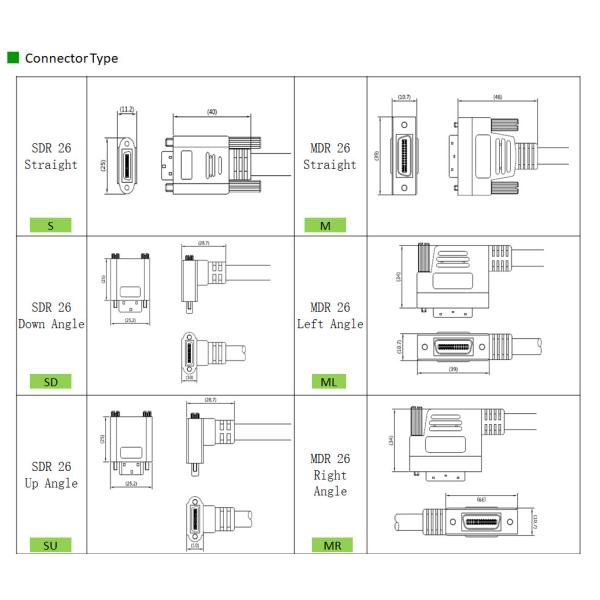

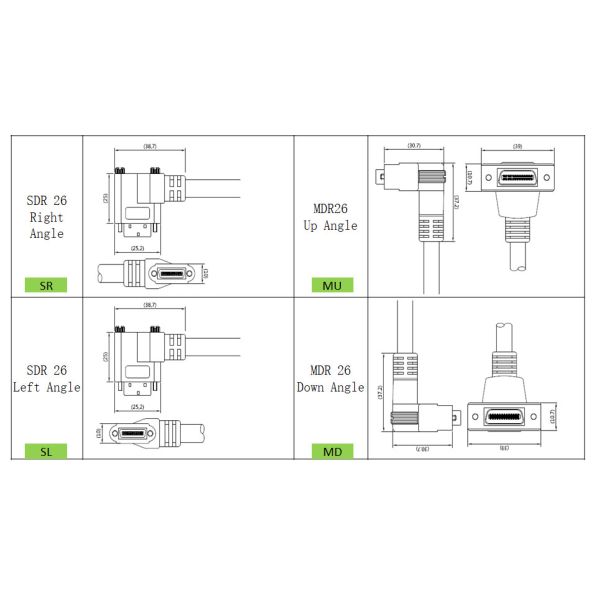

Jacket Material PVC Connector SDR-MDR
Operation Temperature -20°C ~+ 80°C Max Length 15m

Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable

Features:

Real-time signals transmission,low latency

100% electronically tested for functionality

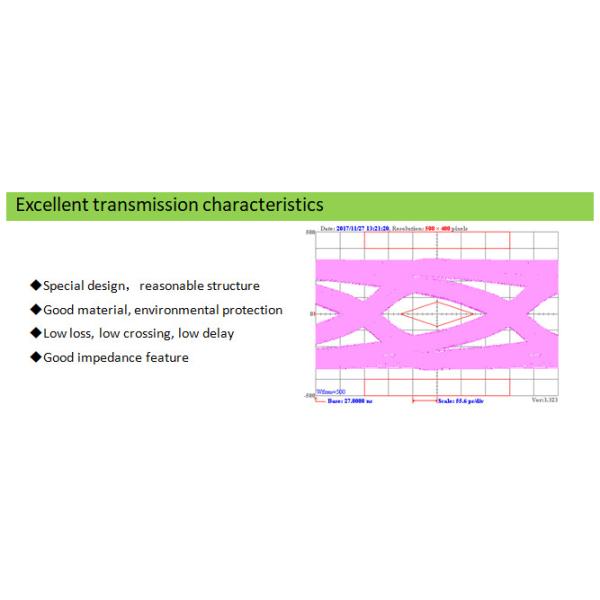

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Flexible and reliable cable

Application:

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

Mini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera CableMini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera CableMini PoCL Cable AIA standard SDR Right Angled to MDR CCD Camera Cable

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
