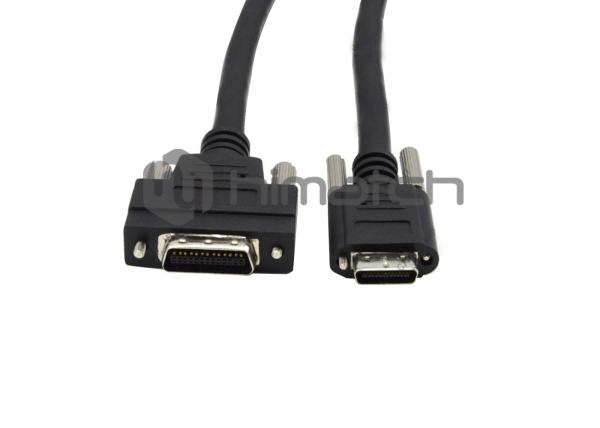

Standard Camera Link Cable MDR / SDR 5 Meters With Molding Black Color
Standard Camera Link Cable MDR / SDR 5 Meters With Molding Black Color
Standard Camera Link Cable MDR / SDR 5 Meters With Molding Black Color
Standard Camera Link Cable MDR / SDR 5 Meters With Molding Black Color
Specifications
Brand Name :
Himatch or OEM
Model Number :
X-CL-P-SM-0500K
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
5m SDR (Shrunk Delta Ribbon) cable
Cable color :
Black
Bending :
1,000,000 cycles
Length :
3m
Cores :
11P+2C
Cable OD :
8.0
Wire :
28awg+26awg
Material :
PVC Jakcet,
Description

AIA Standard Camera Link Cable , MDR/MDR 85MHZ , Full Shielded High Speed Cable

Description:

Himatch’s camera link cable series are constructed of plenum rated 11pair+2 cores robotic cable with 3M® SDR 26pin connector, or Honda® SDR 26pin connector (Shrunk Delta Ribbon) connector, UL verified MDR connector at each end., with robust molding with thumbscrew, They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.

Specification:

Standard Camera Link Transmit Speed Max 2.04Gbps,
Installation mode Dynamic /Static Install radius (Min) 75mm
Wire gauge 28AWG Cable OD 9.1mm
Jacket Material PVC Connector SDR-MDR
Operation Temperature -20°C ~+ 80°C Max Length 15m

Features

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Life time: bending cycles 10 millions ~20 millions

RoHS and REACH compliant

Standard Camera Link Cable MDR / SDR 5 Meters With Molding Black Color

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
