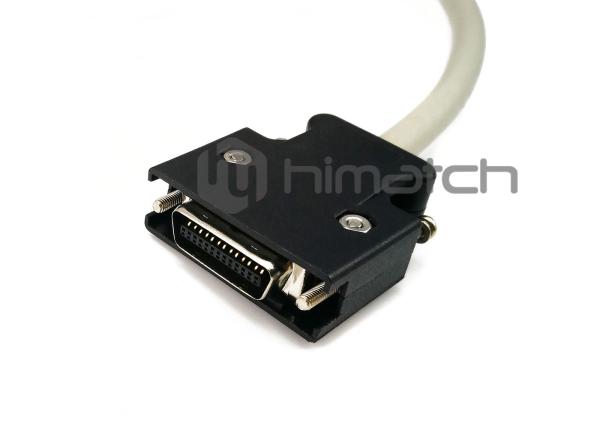

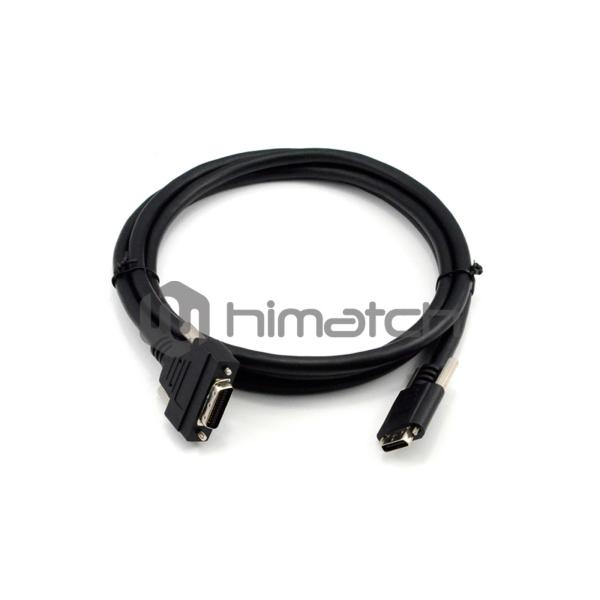

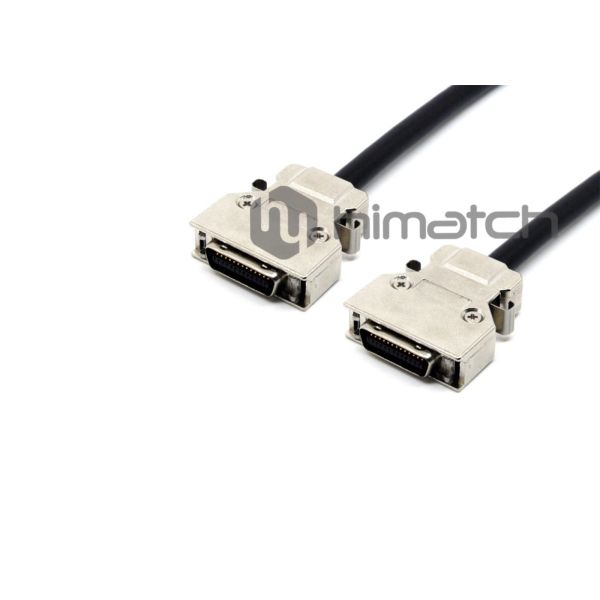

Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly
Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly
Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly
Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly
Specifications
Brand Name :
Himatch or OEM
Model Number :
L-P-CL-XXXXK
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
30pcs
Price :
USD20-USD80
Payment Terms :
T/T
Supply Ability :
20000pcs/Month
Delivery Time :
2-3 Weeks
Packaging Details :
PE bag, Box, Carton
name :
mdr cable
Conductor :
Tinned copper
Cores :
11Pair +2C 28awg
Volatage :
30V
Interface :
MDR
Shield :
Full double shield
Jacket :
PVC/TPU
Description

Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly

Description:

Camera Link Machine Vision Cable Manufacturer from China, we provide high quality aia standard pocl (power over Camera Link) Cable,They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.Camera Link Configuration : In Full and Medium mode , use 2 wires

Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly

Camera Link Cable AIA standard MDR 26pos to MDR 26pos Vision Cable Assembly

Specification:

Standard Camera Link Transmit Speed Max 2.04Gpbs
Installation mode Dynamic /Static Install radius (Min) 75mm
Wire gauge 28AWG Cable OD 9.1mm
Jacket Material PVC Connector MDR-MDR
Operation Temperature -20°C ~+ 80°C Max Length 15m

.

Features

Real-time signals transmission,low latency

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

Flexible and reliable cable

Application

Industrial imaging

Machine Vision system

Industrial camera

Scanning on pipelining

Products testing

Image recognition

Factory automation

Note
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
