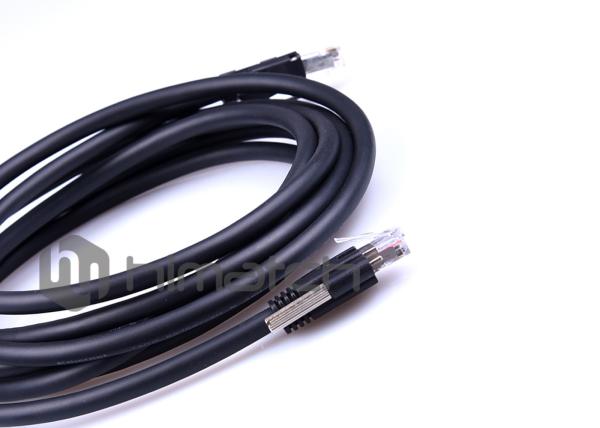

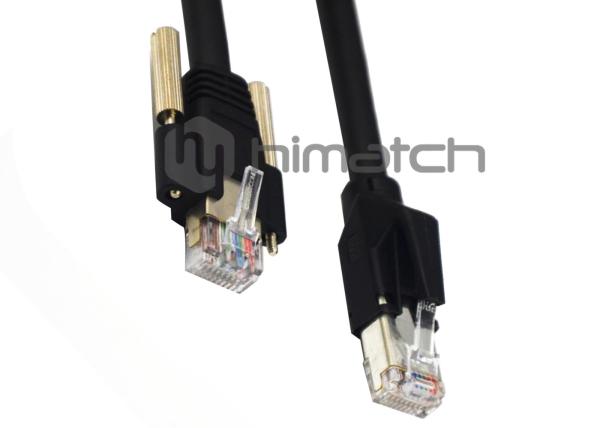

Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track
Specifications
Brand Name :
Himatch or Customized
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30
Price :
USD7.8- USD9.2
Payment Terms :
T/T
Supply Ability :
2000PCS
Delivery Time :
10-15 working days
Packaging Details :
PE bag, Polybag, Double blister, Carton
Model Number :
X-GE-RJ-RJS-0500K
Name :
GiGE Vision Cable
Cable :
CAT 5e
Wire :
26AWG Straned pair
Conductor :
Tinned copper
Insulation :
FEP
Jacket :
PUR
Connector :
RJ45
Contact :
30U'' Gold
Bending cycles :
5 Millions
Description

Shielded CAT5e Gigabit Ethernet Cable For GigE Vision Chain Flex 5.0 Meters

Description:

GiGE camera link cables are built of plenum rated CAT5e stranded pair shielded robotic cable with AMP or Hirose RJ45 connector, robust molding with or without thumbscrew locking , They offer outstanding quality, durability, and goo performance for Gige camera.

Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track

Shielded CAT5e Gigabit Ethernet Cable 5.0 Meter For GiGEt Vision Camera for locomotive track

Specification:

GigE vision cable manufacturer from China.Himatch constructed the cable by plenum rated cat5e,cat6,cat6a standard or high flexible robotic shielded cable with TE or HRS RJ45 connector,robust molding with thumbscrew locking.They offer outstanding quality, durability, and good performance for all the Industrial CCD camera with RJ45 connector

Standard Gigabit Ethernet Transmit Speed Max 1000Mbs
Installation mode Dynamic/Static Install radius (Min)

Static: 25mm

Dynamic: 50mm
Wire gauge 4Px26AWG Cable OD 6.5mm
Jacket Material PVC Lift time 8-10 millions
Operation Temperature -25°C ~+ 80°C Max Length 15m

Features:

Reliable Flexible quality cable

Lift time: U bending cycles: 10 millions~20 millions

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded provides EMI/RFI protection

RoHS and REACH Compliant

Application:

CCD camera as following but not only for :Basler ace,Basler aviator,Basler runner,Basler racer,Basler Time-of-Flight series’ model: ACA2500-14GC,ACA640-90GC,ACA1300-60GC,RAL2048-48GM, JAI,AVT’s Guppy Pro, Manta, Stingray, Pike series, Dalsa,Imagingsource

Tow chain installation.

In the placement of towed cables, cables need to be tiled, cables can not be crossed or overlapped;

Select the tow chain with enough space to ensure that the cable occupies less than 30% space;

Install as many partitions as possible to avoid interference between cables.
