Specifications
Brand Name :
Himatch or OEM
Model Number :
X-CL-P-SM-0800K
Certification :
UL/ CSA , ISO
Place of Origin :
China
MOQ :
50pcs
Price :
US$63-70
Payment Terms :
T/T
Supply Ability :
10000pcs/Month
Delivery Time :
7 working days
Packaging Details :
PE bag, Box, Carton
Name :
MDR to SDR 26Pin cable
Cable color :
Black
Bending :
1,000,000 cycles
Length :
8 meters
Cores :
11P+2C
Cable OD :
9.7
Wire :
28awg+26awg
Material :
PVC Jakcet
Interface :
MDR 26pin , SDR 26pin (Shrunk Delta Ribbon)
Description

Mini Camera Link Vision Cable AIA Flexible Cable SDR Up Angled to MDR Mini Camera Link Vision Cable AIA Flexible Cable

Description:

Himatch’s camera link cable series are constructed of plenum rated 11pair+2 cores robotic cable with 3M® SDR 26pin connector, or Honda® SDR 26pin connector (Shrunk Delta Ribbon) connector, UL verified MDR connector at each end., with robust molding with thumbscrew, They offer outstanding quality, durability, and high performance for industrial CCD camera with SDR or MDR port.

Details

Durable SDRmini camera link cable manufacturer, Himatch constructed the cable by roboticcable with Honda® SDR and UL verified MDR connector at each end, up Angledesign provides special orientations of connection.

Standard

Camera Link

Transmit Speed Max

2.04Gbps,

Installation mode

Dynamic /Static

Install radius (Min)

75mm

Wire gauge

28AWG

Cable OD

9.1mm

Jacket Material

PVC

Connector

SDR-MDR

Operation Temperature

-20°C ~+ 80°C

Max Length

15m

Features

Real-time signalstransmission,low latency

100% electronically tested for functionality

Low noise and good performance in skew

Shielded pairs provide superior signal integrity

Overall foil and braid shielded providesEMI/RFI protection

Flexible andreliable cable

Application

Industrialimaging

Machine Visionsystem

Industrialcamera

Scanning onpipelining

Products testing

Imagerecognition

Factoryautomation

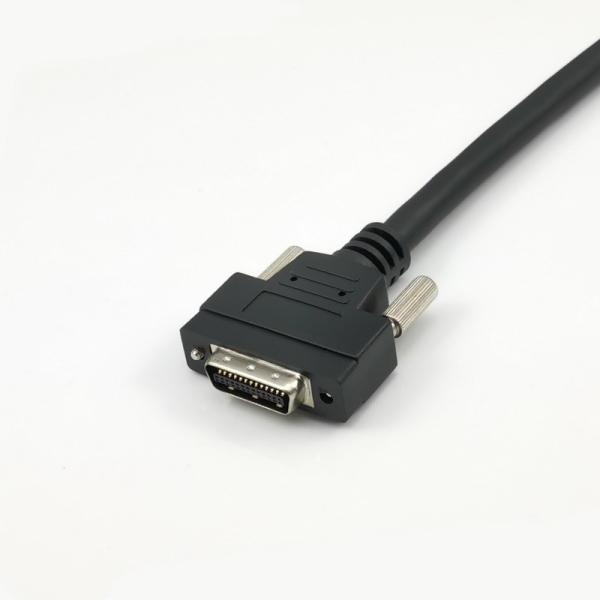

SDR Up Angled To MDR AIA Flexible 8m Mini Camera Link Cable

Specification:

Brand Himatch Model No. X-CL-P-SM-0800K Conductor TC
Cores 11P+2C Guage: 28AWG Insulation FEP/PE/PVC
Jacket Lead Free PVC Cable OD 9.7mm Color Black
Cable Round For CCD Certification UL
Voltage 80V Bending 10-20 Million OEM Yes

SDR Up Angled To MDR AIA Flexible 8m Mini Camera Link Cable
SDR Up Angled To MDR AIA Flexible 8m Mini Camera Link Cable
SDR Up Angled To MDR AIA Flexible 8m Mini Camera Link Cable

Note:
The movable cable used for fixing will not have any problems . However, the fixing cable is NOT allow used for movable applications.
When installing the cable, please consider the allowable bending radius of the cable,if the bending degree exceeds the limit of the cable's internal structure or sheathed structure, it caused the deterioration of the cable's performance. Strongly recommend that the bending radius ≥ 4 R (R is the outer diameter of cable) when cable installed.
