Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras
Specifications
Brand Name :
DHT
Model Number :
CCXC-02SR
Certification :
CE/ROHS/FCC/SGS
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
300,000pcs per month
Delivery Time :
5~7days
Packaging Details :
PE
Product Name :
Camera Link cable
Application :
CCD camera
Cable Length :
2.0 meters
Interface :
HR10A-10R-12R
Connector :
HR10A-10P-12S
Feature :
High Flex,Chain flex
Standard :
CE/ROHS/FCC/SGS
type :
Overmolded

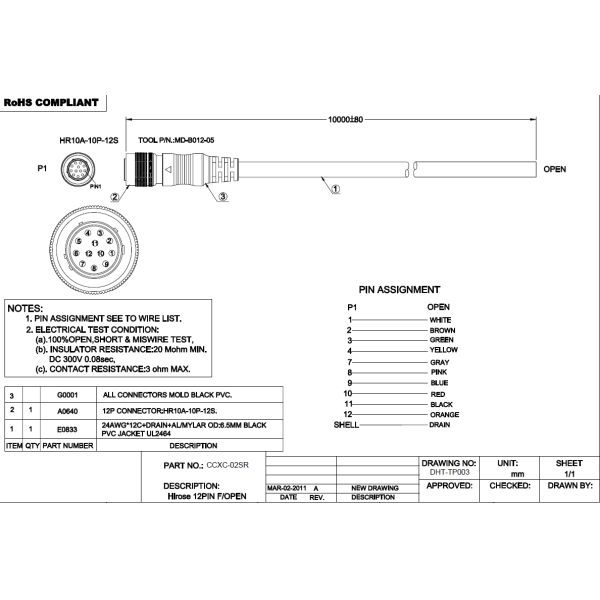

Description

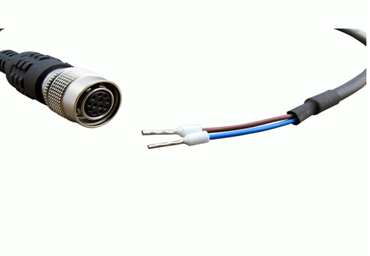

Hirose hr10 Cable for Machine Vision and Analog CCD Cameras

Specifications:

Physical

Cable Color

Black

Connector

HR10A-10P-12S

Jacket Material

PVC

Shell Material

Polyester Elastomer

Shell Color

Black

Shell Construction

Pre mold in Poly Ethelene wrapped 360

degrees with copper tape terminated to shield,

overmolded in black PVC.

Cable construction

24AWG*12C+DRAIN+AL/MAYLOR OD6.5MM BLACK PVC JACKET UL2464

Electrical

Voltage Rating

DC 300V 0.08sec

Current Rating

1A

Insulation Resistance

20 Mohm MIN

Dielectric Test

3ohm Max

Temperature Rating

- 20 to +75 Celsius degree

Overmolded Hirose Hr10 Chainflex Cable DC 300V 0.08sec For Analog CCD Cameras

Description:

1, Supports all HR10A-10R-12P(73) receptacle.

2, CHAIN FLEX/HIGH FLEX CABLE ATTIBUTION. Designed for high-performance vision applications

3, Full shielded.High performance anti-interference

4, All connector Over Molded PVC

5, Entire cable bundle shielded with foil and Coaxial for signal protection.

6, Trigger signals and power cord

7, 0.5meter to 5meters lengths available

8, Straight connection and Right angle available

9, Cables can be customized for specified requirements

10, High flex cable and standard cable available

11. FLEX test term: Locomotive track Flex Radius Flex Speed

12. CCXC 12PIN SERIES CABLE AND I/O CABLE AVAILABLE.

Applications:

Indutrial Camera

DALSA,BASLER,SONY,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX,

DTA,PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO,

SENTECH,EPIX……

Imaging frame grabber

SONY,CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT……

Machine vision

For all Camera Link standard interface

Equipment Systems

Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment……

Competitive Advantage:

1, OEM SERVICE

2, GOOD QUALITY,HIGH FLEX,CHAIN FLEX CABLE

3, GOOD PRICE

4, SHORT TIME DELIVERY TIME

5, NICE SERVICE

6, 1YEAR GUARANTEE.
