Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-USB2.0-1P
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen
MOQ :
5pairs
Price :
USD200~320/pair
Payment Terms :
T/T
Supply Ability :
10000pairs/month
Delivery Time :
4~7 working days
Packaging Details :
1pair of power adaptor,1 transmitter,1 receiver,1 users' manual
Wave length :
1310nm/1550nm
Size (L× W ×H) :
104mm x104mm x28mm
Case :
Aluminum
Color :
Black
N.W. :
0.75Kg
Case material :
aluminum
Description

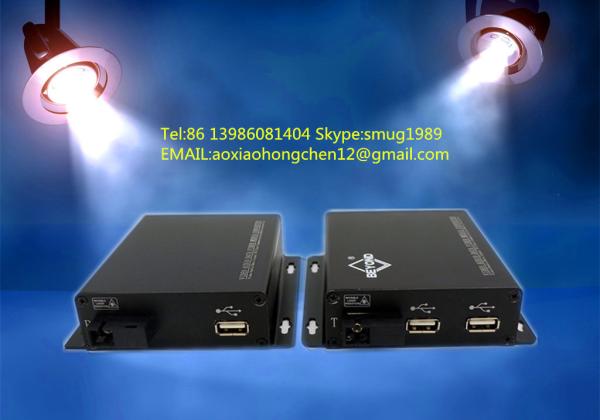

USB 2.0 Fiber Optical Extender, also named as USB2.0 To Fiber Converter. The device consists of a transmitter and a receiver. which through a single mode or multi-mode fiber to the host's USB interface (USB2.0 signal) extended to the far end. The high temperature characteristics of the device and good, can work in the high temperature environment of 75 ℃, the maximum transmission distance of 5 km single mode or 250 meters multi-mode). Products are often used in video conferencing, multimedia information release, government departments, medical systems, commercial display, multimedia function hall, security monitoring, public utilities and other fields.

Features

1, compatible with USB2.0 and USB1.1 protocol, support USB interface camera, printer, U disk, mouse and keyboard and other equipment.

2, automatic identification of high-speed (25Mbps ~ 480Mbps), full speed (500Kbps ~ 12Mbps), low speed (10Kbps ~ 1.5Mbps) USB devices.

3, fiber transmission distance (single mode up to 5 km).

4, no need to drive, compatible with any system, plug and play.

5,FC/ST/LC/SC fiber interface selectable.

Product specification:

Optical Connector SM/MM SC/FC/ST/LC selectable
Wave length 1310nm/1550nm
Physical Size (L× W ×H) 104mm x104mm x28mm
Case Aluminum
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
sender power consumption <3.5W
receiver power consumption <3.5W
Environment Working temperature -20℃-70℃
Storage temperature -40-85℃
Humidity 0-95% (non-condensing)

USB interface(Type A):

RX connect to PC
TX connect to USB device

Panel diagram:

FC/ST/SC series:

USB2.0 fiber optical extender for 1.1/2.0 usb over SM fiber to 5KM in USB camera, printer, U disk ,touch screen system

LC series:

USB2.0 fiber optical extender for 1.1/2.0 usb over SM fiber to 5KM in USB camera, printer, U disk ,touch screen system

Note:When the fiber and data are connected, the F & D indicator flash, otherwise off. Then the USB indicator is on when the transmitter is plugged into the USB device, otherwise off. if the indicator is not normal, re-plug the USB device.

Connection:

SC/ST/FC series:

USB2.0 fiber optical extender for 1.1/2.0 usb over SM fiber to 5KM in USB camera, printer, U disk ,touch screen system

LC series:

USB2.0 fiber optical extender for 1.1/2.0 usb over SM fiber to 5KM in USB camera, printer, U disk ,touch screen system
