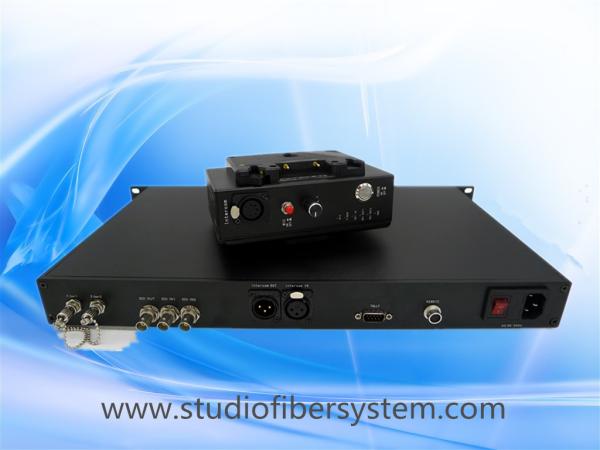

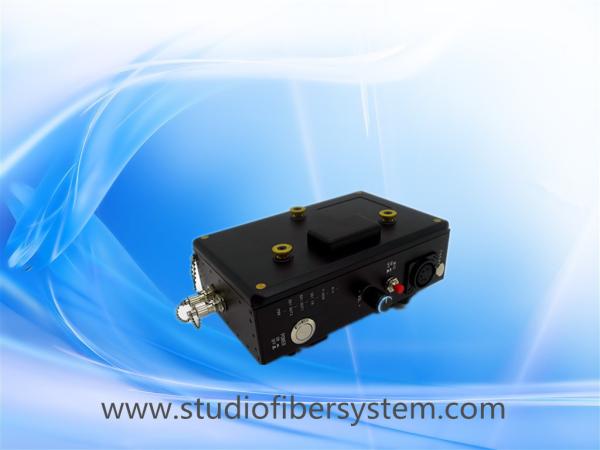

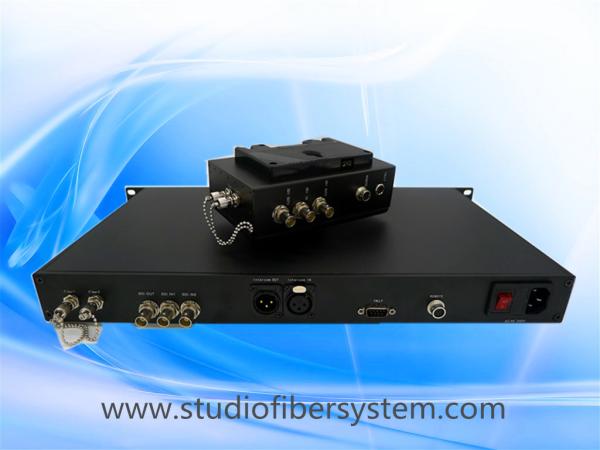

Anton Bauer SONY camera fiber system(JM-EFP-S8) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit a 3G/HD-SDI signal from the camera side to the Base Station and a return video (3G/HD-SDI or CVBS),Sony Remote control data, genlock, intercom, tally, . The system puts all of the signals needed for Sony multi-camera 3G/HD-SDI production onto a SM / MM tactical or SMPTE hybrid fiber cable, insuring robust, trouble-free connectivity on any studio or remote production.

Power supply :

the battery power supply, the camera fiber optic adapter (TX) hanging on the camcorder via the front A or V-shaped gusset plate , the back hanging battery while power supply to the camera and fiber optic adapter;

Features:

Easily pass the Pathological test(extremely harsh environments)

SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals

Uncompressed lossless transmission without delay;

More than 10KM transmission distance up to a maximum 80KM; when the opto-electric hybrid cable power supply the distance up to 250 meters.

Aluminum precision manufacturing, the size is about the BP battery size, lightweight and convenient, A-type or V-shaped with a flexible pinch;

Supports Sony Remote control

Mic level input (with mute function) and amp functions (volume adjustment)

Tally/GPI output +12V or dry Contact Closure optional

Wide temperature range, low power consumption

V-mount or A-mount battery optional

A type hanging plate for camera fiber optic adaptor:

V type hanging plate for camera fiber optic adaptor:

Application:

Television studio, mobile studio

EFP Electronic Field Production, major sporting events and large celebrations broadcast live

ENG camera (outdoor photo camcorders) upgraded to a EFP camera.
