Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-EFP-S2
Certification :
CE,FCC,ROHS
Place of Origin :
Shenzhen
MOQ :
1 pairs
Price :
USD1~5000/pair
Payment Terms :
T/T
Supply Ability :
2000pairs/month
Delivery Time :
25days
Packaging Details :
Transmitter x1, Receiver x 1, Power wire x 2, Use mannual x 1
SDI Format :
SMPTE 424M-2006, 292, 259 and DVB-ASI compliant
Audio :
Supports embedded audio and data signals
Description

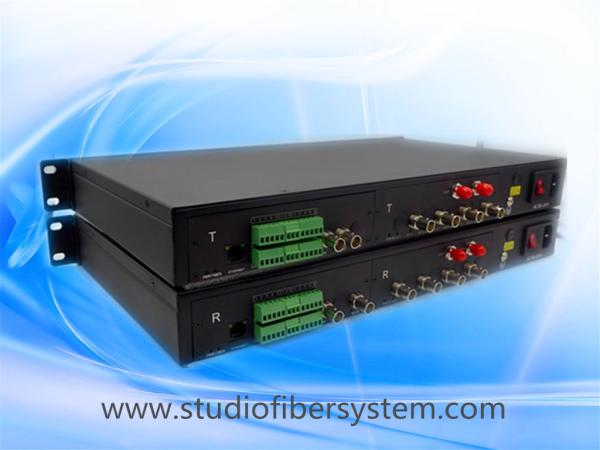

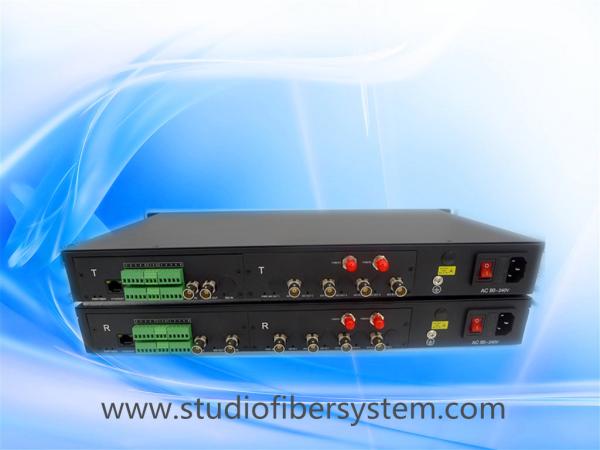

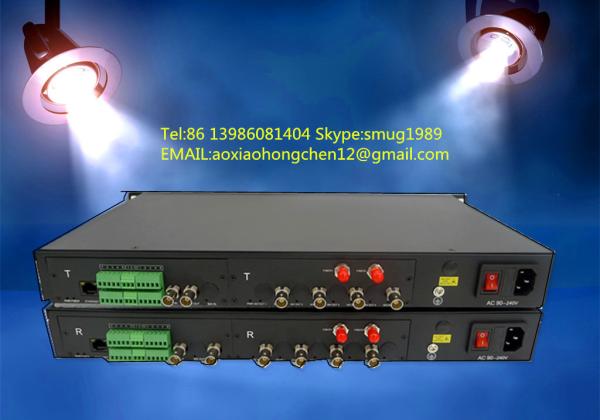

Sony 4K SDI Studio Fiber system(JM-EFP-S2) consists of camera fiber optic adapter (TX) and fiber optic base station (RX) , custom-designed for long-distance transmission of EFP live production system, to transmit 1CH 4K Forwarding SDI,1CH reverse 3GSDI, 1CH reverse analog composite CVBS signal, 1CH TALLY , 2x Bidi unbalanced audio (Intercom), Remote control(1CH full-duplex RS422,1xBidi RS232,1CH half-duplex RS485), 1CH 10/100M Ethernet signals to 10KM over 2 xST single mode fiber or 300 meters over Multi mode fiber.

Sony 4K SDI Studio Fiber system(JM-EFP-S2)Features:

1)easily pass the Pathological test(extremely harsh environments)

2)SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s – 3)3Gbit / s rate, support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals and DVB-ASI signals

4)Uncompressed lossless transmission without delay;

5)More than 10KM transmission distance up to a maximum 80KM;

6)Supports Sony Remote control

7)Tally / GPI output or charged dry output

8)Wide temperature range, low power consumption

Sony 4K SDI Studio Fiber system(JM-EFP-S2)Application:

Television studio, mobile studio

EFP Electronic Field Production, major sporting events and large celebrations broadcast live

ENG camera (outdoor photo camcorders) upgraded to a EFP camera.

Product Name Sony 4K SDI Studio Fiber system(JM-EFP-S2)
Model JM-EFP-S2
SDI Connector BNC
Fiber Dual fibers, LC / ST connector, Compatible with multimode or single mode fiber
Power Supply AC85-260V/50Hz
SDI Format 1)All inputs and outputs are equalized and re-clocked
2)Immune to pathological patterns over the entire link budget and operating temperature range
3)SMPTE 424M-2006, 292, 259 and DVB-ASI compliant
4)Supports embedded audio and data signals
5)Support SDSDI & HDSDI & 3GSDI, Support 270M & 1.485G & 2.97G SDI Video
Dimension TX:19" 1U rack mount RX: 19" 1U rack mount on base end
Working Environment Working Temperature: 0 ℃~+85 ℃; Relative Humidity: 0 ~ 95% (no cold condensation)
Warranty 2 Years warranty
Description Compliance: 3G, HD, SD compliance, SMPTE 424M, SMPTE 292M, SMPTE 259M
1x4K SDI(4x3GSDI),forward direction
1 x 3G-HDSDI, Reverse direction
2 x Audio, bi-direction, unbalanced audio,
1 x RS422 data, full-duplex mode
1 x RS232 bi-directional
1 x RS485 bi-directional
1 x Analogue video
1 x Tally
1 x 100M Ethernet
Dimension: 480 x 250 x 50 (mm) = 19' standard case
Grosse weight is about 10 kg,
Extends distance: Single mode 10km / Multi mode 300 meters
Packing in box: Transmitter x1, Receiver x 1, Power wire x 2, Use mannual x 1

Connection diagram:

Remote Camera Over Fiber Optic System for Sony 4K SDI camera remote control
