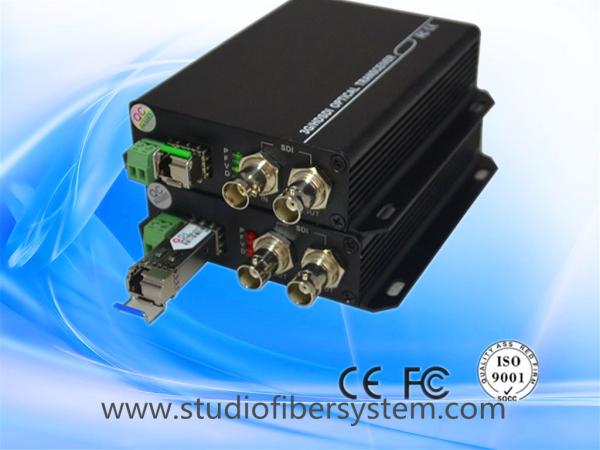

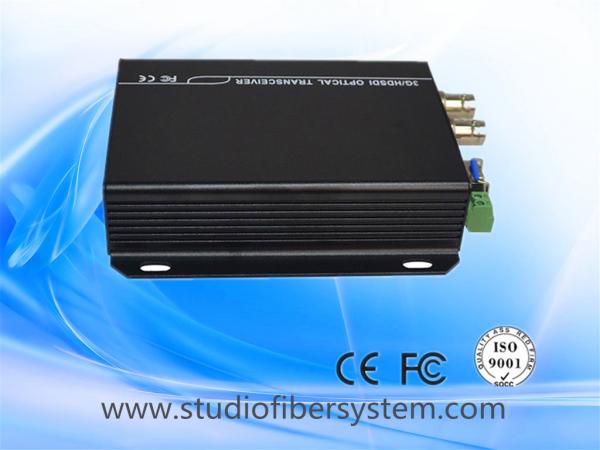

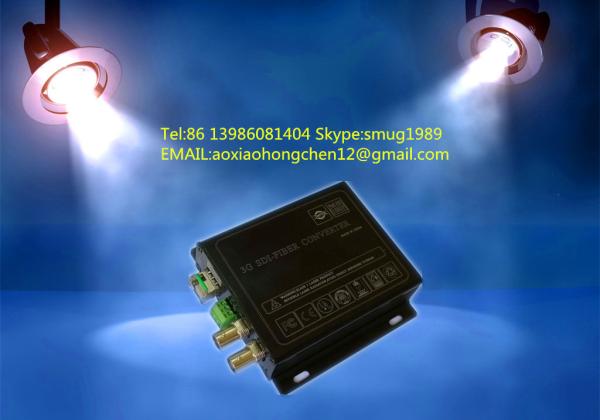

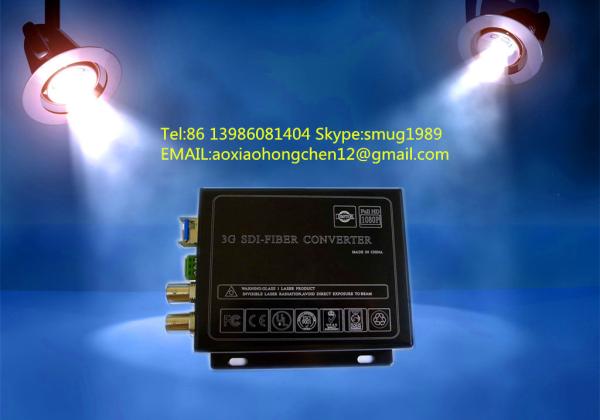

3GSDI&RS485 to fiber converters, also known as 3GSDI&RS485 over fiber extenders, which support 1CH full HD 1080P-60HZ SDI and 1reverse control data(RS485/RS232/RS422)) signals transmission in a fiber without delay, SMPTE-424M standard, is a radio and television equipment, used in television studio, broadcast live Universiade to meet DVB backhaul and production, live production, news gathering, live signal transmission, remote studio, universal digital video transmission , telecommunications, signal transmission and other business needs.

Features:

1, Easily pass the Pathological test (extremely harsh environments);

2, SD, HD, 3G automatic input detection, support 270Mbit / s - 1.48Gbit / s - 3Gbit / s rate; support new 1080P 3Gbps HD-SDI format;

3) Support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI serial digital video signals

4) For reliable transmission over single-mode fiber 10KM or multimode fiber , single-mode fiber up to a maximum 80KM

5) SFP fiber module can be replaced without power off, flexibly choose fiber optic modules based on the actual transmission distance

6)Panel interface provides digital SDI video (BNC connector) and LC fiber interface

3GSDI data fiber converters support the new 1080P 3Gbps HD-SDI format, are available on the long-distance single-mode or multimode fiber to transmit SMPTE-424M 3GSDI, SMPTE-292M HD -SDI or SMPTE-259M SDI digital video signals without lossless and delay . With advanced digital fiber optic transmission technology, it works safely and reliably

Today's digital studio are transmission systems based on Serial Digital Interface (SDI) . SDI digital video system transmit uncompressed digital component video signal and digital audio signal. The SDI converters are designed and produced to suit the highly reliable television industry , high-performance serial digital optical transmission equipment and satisfy DVB backhaul and production, live production, news gathering, live signal transmission, remote studio, Universal Digital video transmission , telecommunications, signal transmission and other business needs. Signal formats are from 19.4Mbps to 2.97Gbps, the system supports SMPTE424M, SMPTE292, SMPTE295M, SMPTE297M, SMPTE305M, SMPTE310M digital television formats to meet the requirements of industrial grade products.SDI Applications

Shooting animals; live and optical transmission; remote television studio; news gathering; military or police command and control

SPECIFICATION

Opitcal:

Data:

Video:

Connection:

dimension:
