1310nm 10G SFP+ Optical Transceiver module over 1 single LC fiber to 20KM
1310nm 10G SFP+ Optical Transceiver module over 1 single LC fiber to 20KM
Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-SFTR31-10-20
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
10pairs
Price :
60~95USD/pair
Payment Terms :
T/T
Supply Ability :
100000 pairs per month
Delivery Time :
2~40 days
Packaging Details :
standard
Data Rate :
10G
Wavelenth :
1310nm
Distance :
20KM
Fiber Mode :
SM
Fiber Interface :
1xLC
Description

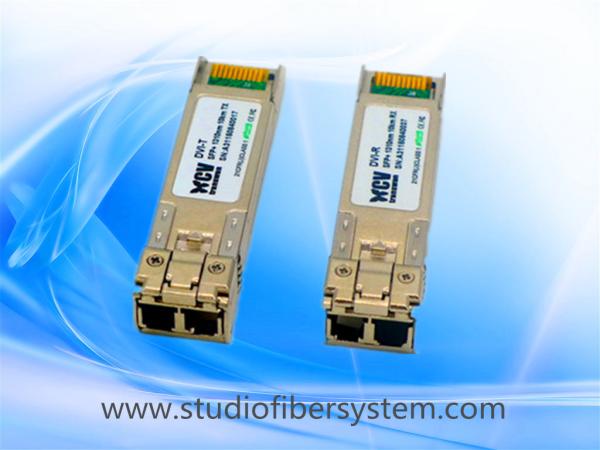

JM-SFTR31-10-20 SFP+ optical transceiver module support 1CH1310nm 10G signal over 1 single mode fiber to 20KM,which is usually applied in Telecommunications room,data center ,DVI,HDMI fiber converter

Features Description

1,Hot pluggable

2,10Gb/s serial optical interface

3,Up to 20km distance

4,Compliant with SFP+ MSA

5,SFP MSA package with single LC connector

6,Digital Diagnostic Monitor Interface

7,Very low EMI and excellent ESD protection

8,High transmission margin

9,+3.3V single power supply

10,Below 1.5W power consumption

11,SFP mechanical interface

12,Wide data-rate range

Standard

1,SFP+ MSA Compliant

2,SFF-8472 reversion 9.5 compliant

3,IEEE802.3-2005 compliant

4,Telcordia GR-468-CORE compliant

5,FCC 47 CFR Part 15,Class B compliant

6,FDA 21 CFR 1040.10 and 1040.11,class1 compliant

7,RoHS compliant

Applications

10G Ethernet , Other optical links,Telecommunications room,data center ,DVI,HDMI fiber converter etc

Descriptions

JM-SFTR31-10-20 optical transceivers are designed for 10Gb/s serial optical interfaces for data communications with single mode fiber (SMF). The transceiver can support 9.953- 11.1Gb/s

The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom

Functional Block Diagram

1310nm 10G SFP+ Optical Transceiver module over 1 single LC fiber to 20KM

Absolute Maximum Ratings
Parameter Symbol Min. Max. Unit Note
Supply Voltage Vcc -0.5 4.0 V
Storage temperature -40 85 ℃
Relative Humidity 85 %

Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the module.

General Operating Characteristics
Parameter Symbol Min. Typ. Max. Unit Note
Data Rate 10G Base-LR 10.3125 Gb/s
10G Base-LW 9.953
Supply Voltage Vcc 3.1 3.3 3.5 V
Supply Current Icc 400 mA
Operating case temperature Tc 0 70 ℃

Electrical Input/Output Characteristics

Note 1) TD+/- are internally AC coupled with 100Ω differential termination inside the module.

Note 2) Tx Fault and Rx LOS are open collector outputs, which should be pulled up with 4.7k to 10kΩ resistors on the host board. Pull up voltage between 2.0V and Vcc+0.3V.

Note 3) RD+/- outputs are internally AC coupled, and should be terminated with 100Ω (differential) at the user SERDES

Parameter Symbol Min. Typ. Max. Unit Note
Diff. input voltage swing 500 mVpp Note 1
Tx Disable input H VIH 2.0 Vcc+0.3 V
L VIL 0 0.8
Tx Fault output H VOH 2.0 Vcc+0.3 V Note 2
L VOL 0 0.8
Input Diff. Impedance Zin 100 Ω

Parameter Symbol Min. Typ. Max. Unit Note
Diff. output voltage swing 500 mVpp Note 3
Rx LOS Output H VOH 2.0 Vcc+0.3 V Note 2
L VOL 0 0.8

Optical Characteristics

Transmitter (0~70℃@10.3125Gb/s)

Parameter Symbol Min. Typ. Max. Unit Note
Operating wavelength 1290 1310 1330 nm
Ave. output power (Enabled) Po -6 0 dBm Note 1
Extinction Ratio ER 3.5 5.0 dB Note 1
Spectral width Δλ 1 nm
Rise/Fall time (20%~80%) Tr/Tf 50 PS Note 2
Optical modulation amplitude OMA -5.2 dBm
Dispersion penalty 1 dB
Output Optical Eye IEEE 802.3-2005 Compliant

Receiver (0~70℃@10.3125Gb/s)
Parameter

Symbol

Min.

Typ.

Max.

Unit

Note
Operating wavelength

1200

1310

 1600

nm

Sensitivity Psen -14.4 dBm Note 3
Min. overload

Pimax

0.5

dBm
LOS Assert LosA

-30

dBm

LOS De-assert

LosD

-16

dBm

LOS Hysteresis

LosH

0.5

4 dB

The SFP modules implement the 2-wire serial communication protocol as defined in the SFP MSA.

The serial ID information of the SFP modules and Digital Diagnostic Monitor parameters can be accessed through the I2C interface at address A0h and A2h. The memory is mapped in Table 1. Detailed ID information(A0h) is listed in Table 2. And the DDM specification(A2h) is described in Table 3. For more details of the memory map and byte definitions, please refer to the SFF-8472 (Rev 9.3, Aug. 2002), “Digital Diagnostic Monitoring Interface for Optical Transceivers”.

The DDM parameters have been internally calibrated.

Table 1. Digital Diagnostic Memory Map (Specific Data Field Descriptions)
2 wire address 1010000X (A0h) 2 wire address 1010001X (A2h)
Address Information Address Information
0~95 Serial ID Defined by SFP MSA (96 bytes) 0~55 Alarm and Warning Thresholds (56 bytes)
56~95 Calibration Constants (40 bytes)
96~127 Vendor Specific (32 bytes) 96~119 Real Time Diagnostic Interface (24 bytes)
120~127 Vender Specific (8 bytes)
128~255 Reserved,SFF8079 (128 bytes) 128~247 User Writable EEPROM (120 bytes)
248~255 Vender Specific (8 bytes)

Table 2 - EEPROM Serial ID Memory Contents (A0h)
Data
Address		 Size
(Bytes)		 Name of
Field		 Value(Hex) Description of Field
BASE ID FIELDS
0 1 Identifier 03 SFP
1 1 Ext. Identifier 04 SFP with serial ID
2 1 Connector 07 LC
3-10 8 Transceiver 00 00 00 00 00 00 00 00
11 1 Encoding 01 NRZ
12 1 BR, Nominal 67
13 1 Reserved 00
14 1 Length(9µm,km) 00
15 1 Length (9µm) 00
16 1 Length (50µm) 00
17 1 Length (62.5µm) 00
18 1 Length (Copper) 00
19 1 Reserved 00
20-35 16 Vendor name
36 1 Reserved 00
37-39 3 Vendor OUI 000000
40-55 16 Vendor PN
56-59 4 Vendor rev 31 30 20 20 10
60-61 2 Wavelength 05 1E 1310nm
62 1 Reserved 00
63 1 CC_BASE XX Check code for Base ID Fields
EXTENDED ID FIELDS
64-65 2 Options 001A Los,Tx_falt, Tx_diable
66 1 BR, max 00 Upper bit rate margin, units of %
67 1 BR, min 00 Lower bit rate margin, units of %
68-83 16 Vendor SN xx xx xx xx xx xx xx xx
xx xx xx xx xx xx xx xx		 Serial number(ASCII)
Product tags

40g qsfp +optical transceiver

,

40g qsfp optical transceiver

,

10g sfp+ optical transceiver
Send your message to this supplier
Send Now
