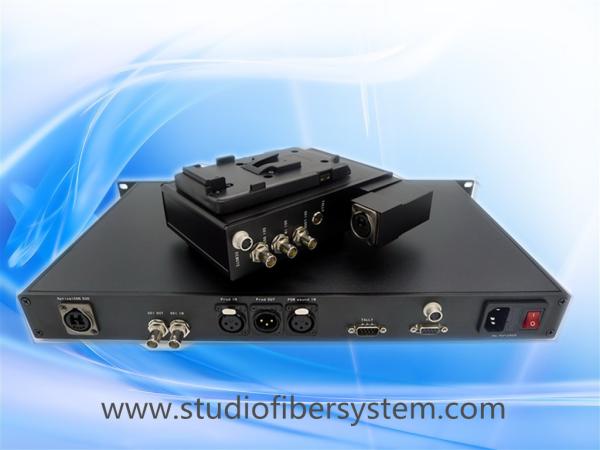

JVC mobile fiber system with OpticalCon Duo Interface powered by hybird cable (JM-EFP-J24)includes a Camera Optic Adaptor and a Optic Base Station. The system transports a 3G/HD-SDI signal from the camera to the Base Station and a return video (3G/HD-SDI), JVC Remote control data,, intercom(Camera end can be connected to professional 4-pin or 5-pin XLR headset), tally(One color or two colors can be selected). Remote camera power supply (150 Watts).The system puts all of the signals needed for multi-camera 3G/HD-SDI production on a OpticalCon hybrid cable, insuring robust, trouble-free connectivity on any studio or remote production.

Power supply:

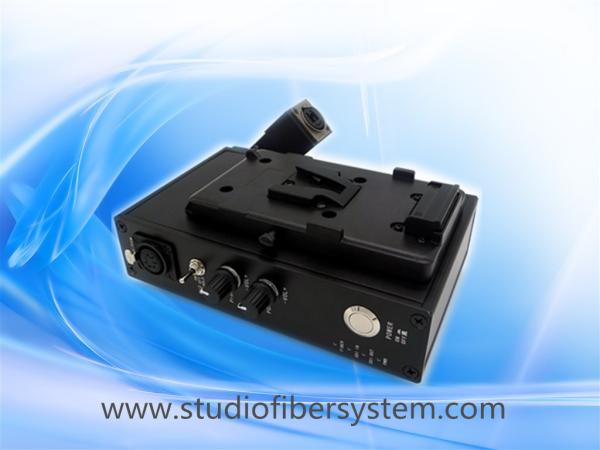

This product is the Opto-electronic hybrid cable remote power supply , fiber optic adapters camera hanging on the front of the camera via the A or V-shaped gusset plate, and then power supply the camera and fiber optic adapter via the hybrid cable .

Features:

• Handle all Pathological patterns
• Automatic cable equalization to ensure signal integrity
• 3G/HD/SD-SDI input auto recognition, support 270Mbit/s - 2.97Gbit/s according to SMPTE 424M, SMPTE 292M and SMPTE 259M
• the opto-electric hybrid cable power supply the distance up to 300 meters.; when over single mode fiber,it’s more than 10KM transmission distance up to a maximum 80KM
• Mic inputs with mute and pre-amps
• RS422 remote control
• Tally LED+/- output or dry Contact Closure optional
• V-mount or A-mount battery plate optional
• Remote camera power supply, with insertion detection protection
• Priority selection of hybrid cable power supply, with battery charge protection

Application:

Television studio, mobile studio

EFP Electronic Field Production, major sporting events and large celebrations broadcast live

ENG camera (outdoor photo camcorders) upgraded to a EFP camera.

Specifications:

General index

Optical:

SDI input/output:

Intercom:

Tally:

Remote:

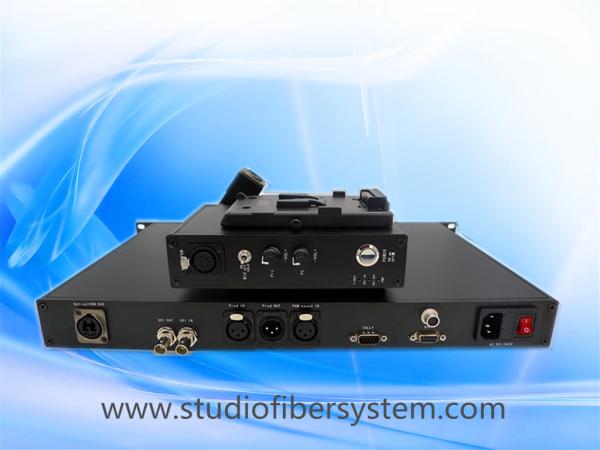

Panel diagram:
