mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM
Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-B3GSDI-1V1D
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5pairs
Price :
USD 240~340USD/pair
Payment Terms :
T/T
Supply Ability :
100000 pairs/month
Delivery Time :
3~7 working days
Packaging Details :
1pair power adaptor,1 optic transmitter,1 optic receiver,1User's Manual
color :
colorful
material :
Aluminum
application :
radio&broadcast
warranty :
3years
dimension :
71x41x23MM
Description

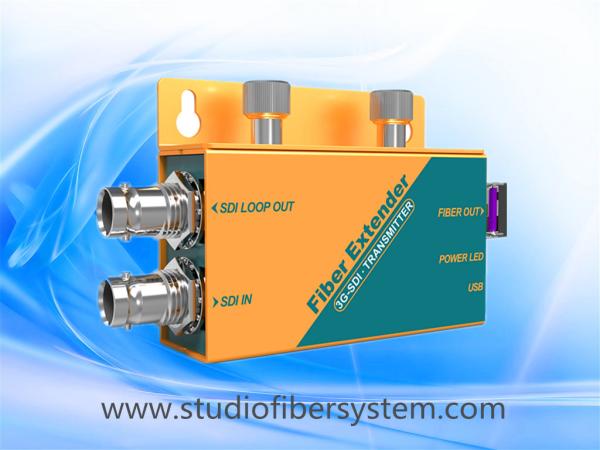

The Mini 3G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting single-mode LC simplex fiber extensions up to 20km. which is used in television studio, broadcast live Universiade to meet DVB backhaul and production, live production, news gathering, live signal transmission, remote studio, universal digital video transmission , telecommunications, signal transmission and other business needs.It is a miniature-style extension solution that supports all SDI formats resolution up to 1080p with audio and metadata, also supports level A and level B. It features a local SDI loop out and dual SDI outputs and supports 3G/HD/SD SDI signals.

specification

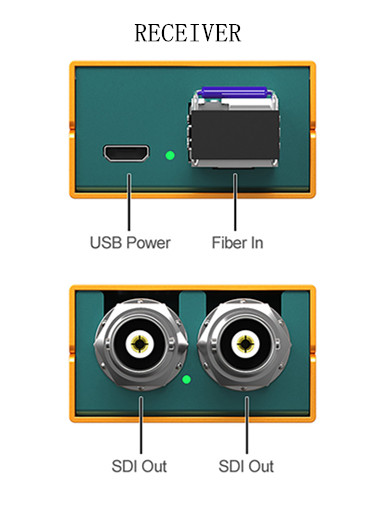

Connections

Transmitter SDI Video Input Receiver Fiber Optical Input Power LED Indicator
1×SD/HD/3G-SDI, 75Ω SFP module with LC connector Power and signal status
Transmitter SDI Loop Output Receiver SDI Video Output
1×SD/HD/3G-SDI, 75Ω 2×SD/HD/3G-SDI, 75Ω
Transmitter Fiber Optical Output Micro USB
SFP module with LC connector Power and software update

mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KMmini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM

Standards

Optical Fiber Module Optical Fiber Compliance SDI Video Rate
SFP module: Hot-pluggable SMPTE 297M 2006 SD/HD/3G-SDI
Connector style: LC
Fiber type: Single-mode SDI Compliance SDI Color Space
Optical wavelength: 1490nm Level A & level B YUV, RGB
Max. bandwidth: 3Gbps SMPTE 259M, SMPTE 292M,
Optical transmit power: -6~0dBm SMPTE 424M, SMPTE 296M, SDI Equalization and Re-clocking
Receiver sensitivity: -22dBm SMPTE 274M, SMPTE 425M, Yes, SDI Input and output maximize
ITU-R BT.656, ITU-R BT.601 performance up to 120m for 3G-SDI
Single-mode Max. Distance
20 km (12.5 miles) for 3G (1080P) SDI Auto Switching SDI Audio
Automatically detects SD, HD Supports 16-channel embedded
and 3G-SDI

Power

Power Power Consumption Voltage Range
Micro USB Transmitter: 1.5W, Receiver: 1.5W DC 3.3-5V

Physical Specifications

Dimension Net Weight Gross Weight
71×41×23mm 200g+200g 800g

mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM

Environmental Specifications

Operating Temperature Storage Temperature Relative Humidity
-20℃~60℃ -30℃~70℃ 0%~90% non-condensing

Connection Diagram:

mini 1channel 3GSDI fiber optic extender for broadcast 3G/HD SDI over 1 single mode fiber to 20KM

What’s Included Mounting Diagram

3G-SDI Fiber Optic Extender Transmitter

3G-SDI Fiber Optic Extender Receiver

2pcs 5V Special Power Adapters

2pcs USB Cables

2pcs Mounting Brackets

Technical Specifications

Warranty

3 Year Limited Manufacturer's Warranty
