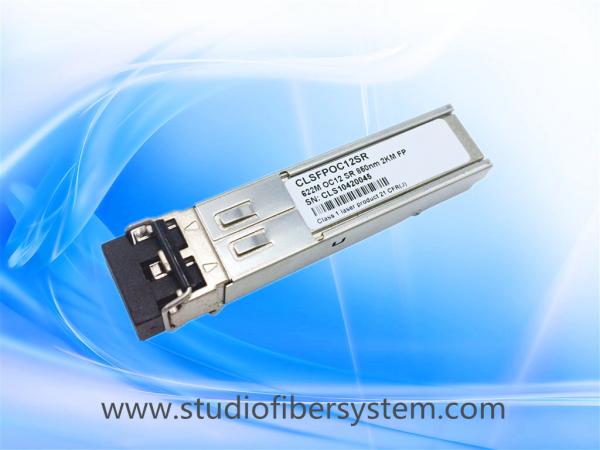

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM
622M 850nm SFP transceiver module over 1 multimode fiber to 2KM
Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-STR85-622-2LCD
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
10PCS
Price :
14.5~18USD/pair
Payment Terms :
T/T
Supply Ability :
100000PCS per month
Delivery Time :
2~40 days
Packaging Details :
standard
Data Rate :
622M unidirectional
Wavelenth :
850nm
Distance :
2KM
Fiber Mode :
2Km on 50/125µm MMF,
Fiber Interface :
1xLC
Description

JM-STR85-622-2LCD SFP optical transceiver includes two parts--the transmitter(JM-ST85-622-2LCD) and Receiver(JM-SR85-622-2LCD),which support 622M 850nm optic signal over 1 multimode fiber to 2KM.

JM-STR85-622-2LCD SFP optical transceiver Features

1,622Mb/s uni-directional data links

2,Duplex LC receptacle optical interface

3,Hot-pluggable SFP footprint

4,850nm VCSEL laser transmitter

5,RoHS compliant and Lead Free

6,Up to 2Km on 50/125µm MMF,

7,Metal enclosure for lower EMI

8,Single +3.3V power supply

9,Low power dissipation <600mW

10,Commercial operating temperature range:0°C to +70°C

Applications:

100BASE-FX155Mb/s 1000Base-SX Ethernet

Descriptions

JM-STR85-622-2LCD Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with 155Mb/s 1000Base-SX Ethernet and100M/s Fiber Channel. They are RoHS compliant and lead-free.

I. Pin Descriptions
Pin Symbol Name/Description Ref.
1 VeeT Transmitter Ground (Common with Receiver Ground) 1
2 TX Fault Transmitter Fault.
3 TX Disable Transmitter Disable. Laser output disabled on high or open. 2
4 MOD_DEF(2) Module Definition 2. Data line for Serial ID. 3
5 MOD_DEF(1) Module Definition 1. Clock line for Serial ID. 3
6 MOD_DEF(0) Module Definition 0. Grounded within the module. 3
7 Rate Select No connection required
8 LOS Loss of Signal indication. Logic 0 indicates normal operation. 4
9 VeeR Receiver Ground (Common with Transmitter Ground) 1
10 VeeR Receiver Ground (Common with Transmitter Ground) 1
11 VeeR Receiver Ground (Common with Transmitter Ground) 1
12 RD- Receiver Inverted DATA out. AC Coupled
13 RD+ Receiver Non-inverted DATA out. AC Coupled
14 VeeR Receiver Ground (Common with Transmitter Ground) 1
15 VccR Receiver Power Supply
16 VccT Transmitter Power Supply
17 VeeT Transmitter Ground (Common with Receiver Ground) 1
18 TD+ Transmitter Non-Inverted DATA in. AC Coupled.
19 TD- Transmitter Inverted DATA in. AC Coupled.
20 VeeT Transmitter Ground (Common with Receiver Ground) 1

Notes:

  1. Circuit ground is internally isolated from chassis ground.
  2. Laser output disabled on TX Disable >2.0V or open, enabled on TX Disable<0.8V.
  3. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.

MOD_DEF(0) pulls line low to indicate module is plugged in.

  1. LOS is LVTTL output. Should be pulled up with 4.7k – 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM

Pinout of Connector Block on Host Board

II. Absolute Maximum Ratings
Parameter Symbol Min Typ Max Unit Ref.
Maximum Supply Voltage Vcc -0.5 +4.0 V
Storage Temperature TS -45 +90 °C
Case Operating Temperature TOP 0 +70 °C
Relative Humidity RH 0 85 % 1
III. Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)
Parameter Symbol Min Typ Max Unit Ref.
Supply Voltage Vcc 3.00 3.60 V
Supply Current Icc 180 300 mA
Transmitter
Input differential impedance Rin 100 Ω 2
Single ended data input swing Vin, pp 250 1200 mV
Transmit Disable Voltage VD Vcc – 1.3 Vcc V
Transmit Enable Voltage VEN Vee Vee+ 0.8 V
Transmit Disable Assert Time 10 us
Receiver
Single ended data output swing Vout, pp 300 400 800 mV 3
Data output rise time tr 1500 ps 4
Data output fall time tf 1500 ps 4
LOS Fault VLOS fault Vcc – 0.5 VccHOST V 5
LOS Normal VLOS norm Vee Vee+0.5 V 5
Deterministic Jitter Contribution RXΔDJ 80 ps 6
Total Jitter Contribution RXΔTJ 122.4 ps

Notes:

  1. Non condensing.
  2. AC coupled.
  3. Into 100 ohm differential termination.
  4. 20 – 80 %
  5. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
  6. Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and ΔDJ.
IV. Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)
Parameter Symbol Min Typ Max Unit Ref.
Transmitter
Output Opt. Power PO -20 - -14 dBm 1
Optical Wavelength λ 1274 1310 1356 nm
Spectral Width σ - - 3 nm
Optical Rise/Fall Time tr/tf - - 1500 ps 2
Deterministic Jitter Contribution TXΔDJ - - 0.07 UI 3
Total Jitter Contribution TXΔTJ - - 0.007 UI
Optical Extinction Ratio ER 9 - - dB
Receiver
Average Rx Sensitivity RSENS - - -34 dBm 4
Maximum Received Power RXMAX 0 - - dBm
Optical Center Wavelength λC 1260 - 1600 nm
LOS De-Assert LOSD - - -34 dBm
LOS Assert LOSA -50 - - dBm
LOS Hysteresis 0.5 - - dB

Notes:

  1. Class 1 Laser Safety, Tested with 50/125µm MM fiber.
  2. Unfiltered, 20-80%.
  3. Measured with DJ-free data input signal .In actual application, output DJ will be the sum of input DJ and ΔDJ.
  4. Measured with PRBS 223-1 at 10-12 BER .

V. Diagnostics
Parameter Range Accuracy Unit Calibration.
Temperature 0 to +70 ±3 ºC Internal
Voltage 0 to Vcc ±3% V Internal
Bias Current 0 to 80 ±10% mA Internal
Tx Power -20 to -14 ±3 dBm Internal
Rx Power -34 to 0 ±3 dBm Internal
VI. General Specifications
Parameter Symbol Min Typ Max Units Ref.
Data Rate BR - - 155 Mb/sec 1
Bit Error Rate BER - - 10-12 2

Max. Supported Link Length on

50/125μm MMF @ OC-3

 LMAX - - 2000 m 3

Notes:

  1. SONET OC-3 / SDH STM-1/100BASE-FX compliant.
  2. Tested with a PRBS 223-1 data pattern.
  3. Dispersion limited per FC-PI-2 Rev. 10
VII. Environmental Specifications

HD Commercial Temperature SFP transceivers have an operating temperature range from 0°C to +70°C case temperature.

Parameter Symbol Min Typ Max Units Ref.
Case Operating Temperature Top 0 +70 °C
Storage Temperature Tsto -45 +90 °C

VII. Mechanical Specifications

JM’s Small Form Factor Pluggable (SFP) transceivers are compatible with the dimensions defined by the SFP Multi-Sourcing Agreement (MSA).

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM

IX. PCB Layout and Bezel Recommendations

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM

622M 850nm SFP transceiver module over 1 multimode fiber to 2KM
