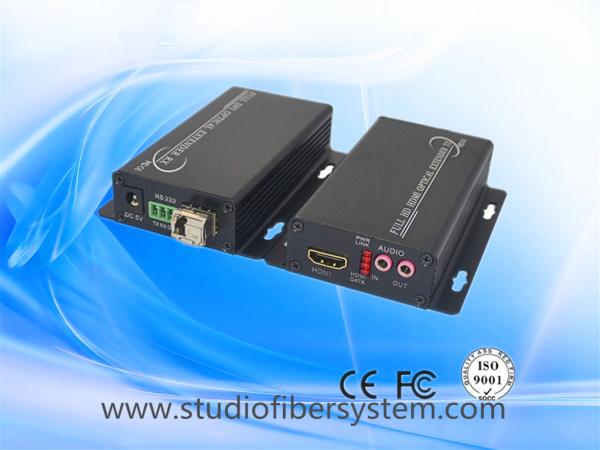

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
Specifications
Brand Name :
JiaMinAVTech
Model Number :
JM-HD-M-1V1SAa1Dd
Certification :
CE,FCC,ROHS
Place of Origin :
shenzhen
MOQ :
1pair
Price :
USD120~230/pair
Payment Terms :
T/T
Supply Ability :
100000pairs/month
Delivery Time :
3~7working days
Packaging Details :
Standard package for 1pair Mini HDMI Fiber Extender: 1pcs HDMI fiber transmitter&receiver, 2pcs DC5V2A power adaptors 1pcs user manual
HDMI version :
HDMI1.1 1.2 1.3
Dimension :
102mmx78mmx24mm
material :
Aluminum
N.W. :
0.5Kg
warranty :
1 year
Resolution :
1080p 60/1080i/720p
HDMI Cable :
≤5m (AWG26 HDMI1.3 cable standard)
Fiber interface :
LC
Distance :
10KM default,0~80KM selectable SM fiber
Description

The Mini HDMI digital fiber optical extender is composed of HDMI transmitter and receiver,which through a single-mode fiber to transmit 1ch uncompressed HDMI&1ch bidirectional stereo audio&RS232 data to1-80km.This equipment is frequency bandwidth, anti-jamming performance, high security, small size, light weight, etc., which supports long distance and special environment transmission. It's very widely used in the large-scale multimedia high-definition display, information dissemination and news center, traffic guidance and information display system, outdoor large-screen display system, large stage display and entertainment center, live television, multimedia conference, military command and exercise Multiple fields.

Fetures:

1,all-digital, no compression, 3G SFP module transmission;
2,Supports one HDMI input and one remote output
3,support 1ch bidirectional audio transmission, bidirectional RS232 data;
4,support UXGA 1280 * 1024 /, HDTV 1080p 1920 * 1080 @ 60Hz resolution, maximum 1.65GHz bandwidth;
5,LED status indicator for the power, optical path, video and other parameters to monitor;
6,advanced adaptive technology, the use of no need for electrical optical adjustment;
7,Gigabit fiber transmission technology, large capacity, easy to upgrade;
8,single mode (0 ~ 80KM), multi-mode (0 ~ 300M) fiber transmission;
9,aluminum alloy shell for very high temperature and very low temperature and other industrial harsh environment;
Full surface mount technology with high reliability;
10,no software settings, support plug and play function, support hot-swappable;

specification

Product Name:Mini HDMI Fiber Optic Extender with Bidi 3.5mm Stereo Audio
Fiber Fiber interface LC
Input light center wavelength Multimode (850nm); single mode (1310nm, 1550nm)
Transmit power -9.5~-3dBm average optical power 850nm
Light receiving sensitivity -15dBm average optical power 850nm
Transmission code rate 3G Hz
Transmission distance 1m ~ 300m multimode fiber, 1m to 10km single mode fiber
Video Support HDMI version HDMI1.3
Transport channel 1port
HDMI resolution 1080p 60/1080i/720p
Support video color format 24 bit / dark 30 / dark 36
Input and output TMDS signal 0.5 to 1.5 Vp-p (TMDS)
Input and output DDC signal 5Vp-p (TTL)
Input cable length ≤5m (AWG26 HDMI1.3 cable standard)
Output cable length ≤5m (AWG26 HDMI1.3 cable standard)
Audio Support audio format DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Audio signal transmission format Left and right stereo audio
Power supply 5VDC
General Power consumption <10W
Operating temperature 0～55°C
storage temperature -20 to 70 ° C
Humidity (no condensation) 0 to 95%
Size (length × width × height) 102x78x24mm
Package Size 21.5x16x7CM
material aluminum alloy
colour black
Net Weight Transmitter: 0.15kg, Receiver:0.15kg
Gross Weight 0.5KG/pair
MTBF >30000hour
RS232 Interface Industrial terminal
Signal direction Unidirectional
Baud rate Self-adaptive, Max:115200bps
Data bits 8

More Details:

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender

Package Information:

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender

Connect Diagram:

Mini aluminum 1CH uncompressed 1080P HDMI&1CH RS232&1CH bidi audio over SM fiber extender
