Specifications
Brand Name :
Garant Optima
Model Number :
GO-LO60-300
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5㎡
Price :
1000~2500USD/㎡
Payment Terms :
T/T, Western Union
Supply Ability :
10000㎡/month
Delivery Time :
15~30 days
Packaging Details :
Anti-shaking wooden cabinet /Air flight case/carton
Pixel Pitch :
3mm
Power Brand :
Rxpower,Giant G-energy,Powerld,MeanWell
IC :
ICN2153
Controlling System :
linsn, Nova, Mooncell,XiXun
LED Shape :
SMD3 in 1
LED Configuration :
SMD1415(1R1G1B)
Module Size :
192x192 mm
Led Lamp Brand :
HongSheng,NationStar,Anplight
Brightness :
≥7000 cd//㎡
IP Rating :
IP65/IP54
Environment :
Outdoor
Description

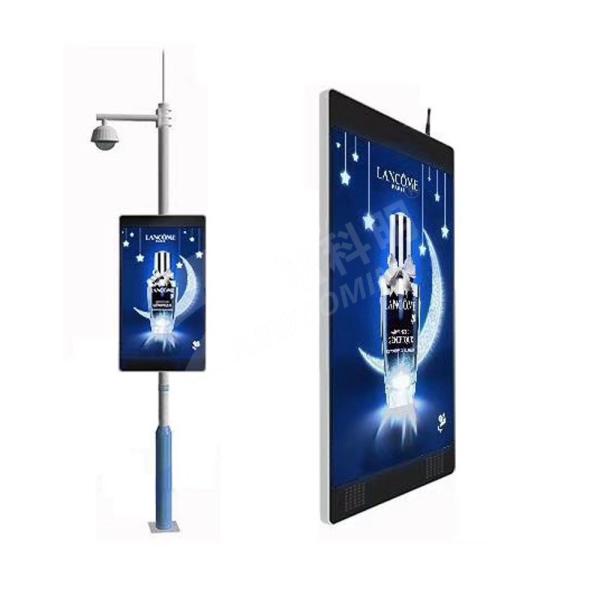

P3 Outdoor light pole led screen is also called outdoor P3 led flag screen or Outdoor P3 Led kiosk screen. It saves installation cost and time by pulling down and updating the light box advertisement. The control of advertisements can be achieved through a unified intelligent management system. As a new advertising carrier, it is expected to be applied on a large scale

The LED light pole screen installed on the street light poles not only can realize the comprehensive utilization of the street light poles, so that the road is no longer monotonous, but also can display the characteristics of the city according to different festivals. At the same time, it will provide the public with information like weather changes, environmental pollution and road traffic,etc,which brings more convenience to the public.

Garant Optima, a leading LED display manufacturer in China, provides you a professional smart LED light pole screen solution and professional commercial LED display technology by its rich LED project engineering experience.

Advantage

1,Integrated design, simple operation;

2,The rear seat and the side of the column can be optionally installed, which is easy to transport and install;

3,Built-in synchronous and asynchronous control card, which can realize intelligent management and large-scale cluster control, simple and convenient;

4,Manage multiple display screens via cable, 3G, 4G, WAN,LAN or via APP via mobile phone (1-1 and 1-N manage to set time, update AD etc)

Main Functions:

60inch high brightness P3 outdoor street light pole led display screen for smart city advertising

√ Smoke/humidity temperature detecting

√ Large scale cluster scale cluster control and management

√ Free Wifi

√ High brightness and energy saving

Selectable Functions

60inch high brightness P3 outdoor street light pole led display screen for smart city advertising

√ GPS

√ Face recognition

√ Smart interactive voice and video

√ Free charge port

Parameter

LED Display Model GO-LO60-300 GO-LO60-333 GO-LO60-400 GO-LO60-500
Terminal Screen 60" 60" 60" 60"
Pixel Pitch 3 mm 3.33 mm 4mm 5mm
Pixel Density 111111 dot//㎡ 90000dot//㎡ 62500dot//㎡ 40000dot//㎡
LED Shape SMD 3in1 SMD 3in1 SMD 3in1 SMD 3in1
LED Configuration SMD1415(1R1G1B) SMD1921(1R1G1B) SMD1921(1R1G1B) SMD2727(1R1G1B)
Module Size 192x192 mm 160x160mm 256x128 mm 160x160 mm
Module Resolution 64*64dot 48*48dot 64*32dot 32*32dot
Terminal Screen Resolution 256x448dot 240x384dot 192x320dot 160x256dot
Screen Size 768x1344mm 800x1280mm 768x1280 mm 800x1280mm
Terminal Size 868x1630x95mm 840x1440x100mm 868x1630x95mm 840x1440x100mm
Cabinet Material Waterproof Cabinet(Iron/Aluminum)
Cabinet Weight 68Kg/㎡ 68Kg/㎡ 68Kg/㎡ 68Kg/㎡
Brightness ≥7000 cd//㎡ ≥6200 cd//㎡ ≥7000 cd//㎡ ≥6000 cd//㎡
Viewing angle H/V 140/140
Viewing Distance ≥3Meters ≥3.5Meters ≥4 Meters ≥5 Meters
Display Color 16.7M
Refresh Rate ≥1920Hz
Grey Scale 14Bit
Scanning Mode 16S 12S 8S 8S
IP Rating IP65/IP54 IP65/IP54 IP65/IP54 IP65/IP54
Max power consumption 1000 W/㎡ 880 W/㎡ 1200 W/㎡ 850 W/㎡
Ave power consumption 330 W/㎡ 300W/㎡ 320 W/㎡ 300W/㎡
Working Voltage AC 100-240V, 50-60HZ
Control Mode Synchronous control/Asynchronous control
Data Transmission CAT5/ Optic Fiber
Controlling system Linsn, Nova, Mooncell,Xixun
Video signal input 3G, 4G, WAN,LAN
Working Temperature -20~65 ℃±10%
Working Humidity 10-90% RH
Brightness Adjustment 0~100 levels
Life Span 100,000 Hours
Pixel failing Rate 0.0001
Working Environment Outdoor

Application

60inch high brightness P3 outdoor street light pole led display screen for smart city advertising

60inch high brightness P3 outdoor street light pole led display screen for smart city advertising

Suitable for Community, walking street, school, hospital, roadside, park, supermarket, parking lot, metro station, hotel, gas station, automobile 4s shop, tourist attraction, bus station etc.
