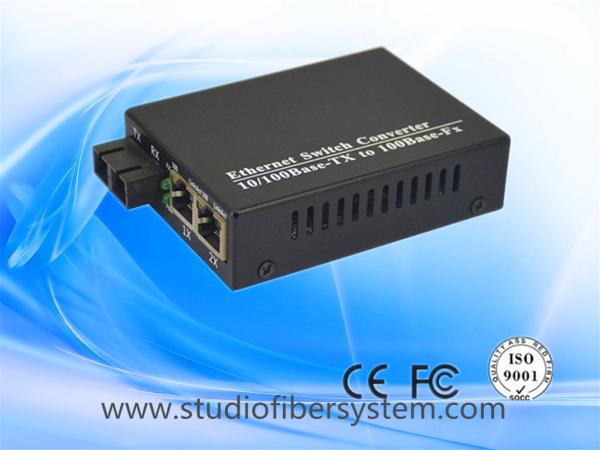

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
Specifications
Brand Name :
JiaMinAVTech/OEM
Model Number :
JM-UG102-SC
Certification :
CE,FCC
Place of Origin :
China
MOQ :
10pairs
Price :
9.4~19USD/pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
10000pairs/month
Delivery Time :
3~10 working days
Packaging Details :
1Pcs 10/100M Fiber Media Converter, 1Pcs DC5V Power Adaptor 1Pcs USER Manual
Product Name :
2Port 10/100Base-TX+1Port 10/100Base-FX fiber media converter
Distance: :
0~80km SM Fiber(20Km default),550m MM Fiber
Fiber Interface :
SC
Material :
Iron
Power Supply :
DC5V1A (external power)/ AC100~240V( Internal power)
Installation :
Wall Mount/Card Type
Warranty :
1Year
Description

2Port 10/100Base-TX+1Port 10/100Base-FX fiber media converter

Product description:

This fiber media converter supports 2port 10/100M Ethernet signal to 20~80 km over one or dual single-mode fiber, compliant with IEEE802.3 10Base-T Ethernet IEEE802.3u 100 Base –TX Fast Ethernet It is suitable for the transmission of urban backbone networks and mainly used for Gigabit links of Ethernet devices. It extends the transmission distance of the network through its own photoelectric conversion, and at the same time expands the bandwidth of the network to 100M. Network switches and routers that comply with the Ethernet standard protocol can well work with it.

Features:

1, Follow the IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX standard;

2, Card-type or Stand-alone type selectable, suitable for concentration management in 2U Racks

3,100Base-T port auto-adaption,support full-duplex or half-duplex;

4, automatic adaptation to RJ-45 parallel interface and cross interface;

5, the maximum transmission distance of multimode fiber is 550 meters/single mode 20Km, and 40Km, 60,80Km selectable;

6, Real-time Led status indication for Power,Fiber,Ethernet,Working Mode,etc.

Product specification:

Product Name: 2Port 10/100Base-TX+1Port 10/100Base-FX fiber media converter
Network Electronic Numbers of Interface 2 x RJ45
Rate 10/100Mbps adaptive
Network Protocols IEEE 802.3 10Base-T,IEEE 802.3u 100Base-TX,IEEE 802.3ab 1000Base-TX/FX
Working Mode Full/half duplex
Network cable connection Network cable cross/direct connection adaptive
Network Cable Cat6<100m
Fiber Wavelength 1310/1550nm
Fiber Type SC,9/125um Singlemode/Multimode
Distance Multi-mode: 550m; Single-mode: 20Km default,40/60/80KM selectable
Rate 622M
General Power Supply Input Voltage:DC5V1A (external power supply), AC100~240V( Internal power supply)
Material Iron
Installation Wall mount/Rack Mount
Dimension 95mm× 70mm× 25mm
Package Size 21.5x16x7cm
Net Weight 0.18Kg/pcs
Gross Weight 0.4Kg/pcs
Working temperature -20~60℃
Storage temperature -25~65℃
Relative Humidity 5%~95 %( no condensation)

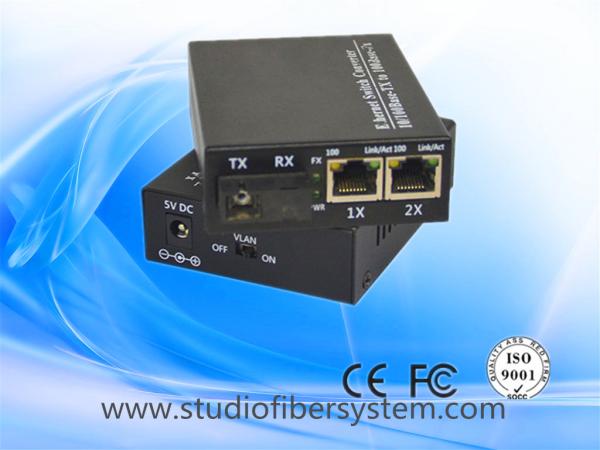

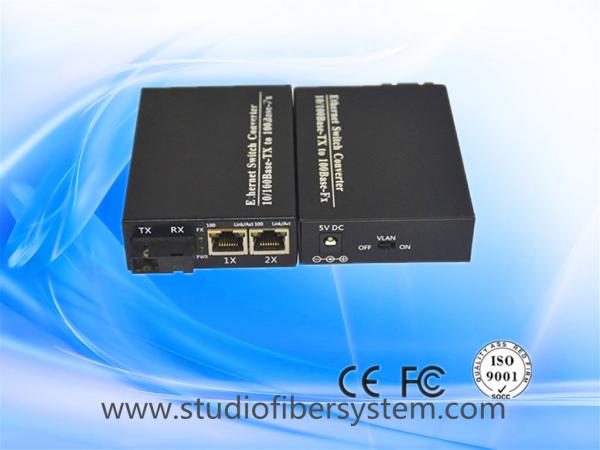

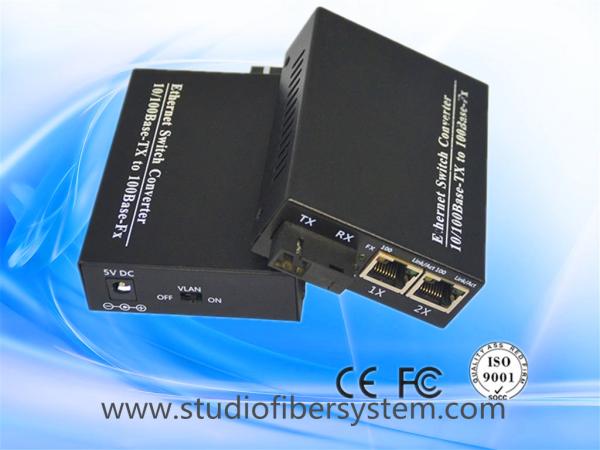

Panel Diagram:

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter

LED Indication:

100 ON—Optical Data 100M Working; OFF-- Optical Data 10M Working;

FX ON---Fiber Connected; Flash---Fiber Link Working Well;

LINK(ACT) ON---CAT6 Cable Connected; Flash---Ethernet Link Working Well;

PWR ON---Power On; OFF---No Power

Package Information:

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter

Package Information:

2Port card type/stand alone 10/100Base-TX+1Port 10/100Base-FX fiber media converter
