480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
Specifications
Brand Name :
Garant Optima
Model Number :
GO-K2.5
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5㎡
Price :
1500~2800USD/㎡
Payment Terms :
T/T, Western Union
Supply Ability :
10000㎡/month
Delivery Time :
15~30 days
Packaging Details :
Anti-shaking wooden cabinet /Air flight case/carton
Pixel Pitch :
1.667mm
Power Brand :
Rxpower,Giant G-energy,Powerld,MeanWell
IC :
High refresh
Controlling System :
linsn, Nova, Mooncell
LED Shape :
SMD3 in 1
LED Configuration :
SMD1515(1R1G1B）
Module Size :
240x120 mm
Led Lamp Brand :
HongSheng,NationStar,Anplight
Brightness :
≥800 cd//㎡
IP Rating :
IP30
Description

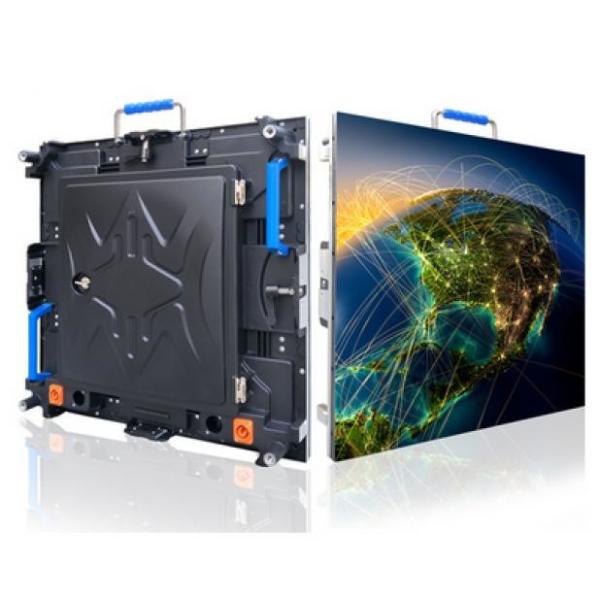

480x480mm Indoor P2.5 Small Pitch Led Display

Garant Optima is a specialized manufacturer of 480x480mm indoor full color P2.5 Rental LED Display from China.The 480x480mm P2.5 Rental LED Display is also known as high definition LED display video wall or HD indoor LED video wall. It represents the latest and top technology of the LED display industry.

Garant Optima Led Display uses IC of 3840Hz refresh rate with PWM function, the new 480x480 die-casting aluminum cabinet supports modules, power supply and receiving card front access. In addition, Garant Optima LED display uses China's best LED brand lamp- Nation star, to ensure the consistency of color and the stability of quality. What’s more, Garant Optima also provides the best price for this series of HD indoor small-pitch Led display video wall.

Features

1,Cabinet supports suspension, wall hanging, recessed and ground support installation

2,Quick locks make installation easy;

3;Magnetic modules make module replacement simple and easy;

4,High grayscale, high contrast (up to 5000: 1), high refresh rate (up to 3840Hz)

5. The screen plays without flicker;

6.Ultra-small pitch, high pixel density HD LED display, suitable for indoor ultra-high-definition close-up viewing display;

7.160-degree ultra-wide viewing angle, enabling viewers to obtain high-quality display effects at various angles;

8.Die-cast aluminum frame design, ultra-light, ultra-thin screen, space-saving, cost-saving and stylish and beautiful;

9.Die-cast aluminum housing improves heat dissipation performance, extends service life, and reduces maintenance costs

Our Advantage:

Our products VS others

Gray Scare

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

Refresh rate

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

Brightness

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

Specification:

LED Display Model GO-K161 GO-K181 GO-K251 GO-K301
Module Specification Pixel Pitch 1.667 mm 1.875 mm 2.5mm 3mm
Pixel Density 360000 dot//㎡ 284444dot//㎡ 160000dot//㎡ 111111dot//㎡
LED Shape SMD 3in1 SMD 3in1 SMD 3in1 SMD 3in1
LED Configuration SMD1010(1R1G1B) SMD1515(1R1G1B) SMD1515(1R1G1B) SMD2121(1R1G1B)
Module Size 240x240 mm 240x240 mm 240x120 mm 240x120 mm
Module Resolution 144*144 dot 128*128dot 96*48dot 80*40dot
Cabinet Specification Cabinet Size 480x480 mm 480x480 mm 480x480 mm 480x480 mm
Cabinet Resoltuion 288x288 dot 256x256 dot 192x192dot 160x160 dot
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 5Kg 5Kg 5Kg 5Kg
Screen Specification Brightness ≥800 cd//㎡ ≥800 cd//㎡ ≥800 cd//㎡ ≥800 cd//㎡
Viewing angle H/V 140/140 H/V 140/140 H/V 140/140 H/V 140/140
Viewing Distance >>2Meters >>2.5Meters >>3 Meters >>3.5 Meters
Display Color 16.7M 16.7M 16.7M 16.7M
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Grey Scale 14Bit 14Bit 14Bit 14Bit
Scanning Mode 1/30S 1/32S 1/30S 1/26S
IP Rating IP30 IP30 IP30 IP30
Max power consumption 650 W/㎡ 650 W/㎡ 650 W/㎡ 650 W/㎡
Ave power consumption 217 W/㎡ 217W/㎡ 217 W/㎡ 217 W/㎡
Working Voltage AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ
Control Mode Synchronization controlled by PC Synchronization controlled by PC Synchronization controlled by PC Synchronization controlled by PC
Data Transmission CAT5/ Optic Fiber CAT5/ Optic Fiber CAT5/ Optic Fiber CAT5/ Optic Fiber
Controlling system linsn, Nova, Mooncell linsn, Nova, Mooncell linsn, Nova, Mooncell linsn, Nova, Mooncell
Video signal input Composite,DVI,VGA, HDMI,HDSDI Composite,DVI,VGA, HDMI,HDSDI Composite,DVI,VGA,HDMI,HDSDI Composite,DVI,VGA,HDMI,HDSDI
Working Temperature -20~65 ℃ -20~65 ℃ -20~65 ℃ -20~65 ℃
Working Humidity 10-90% RH 10-90% RH 10-90% RH 10-90% RH
Brightness Adjustment 0~100 levels 0~100 levels 0~100 levels 0~100 levels
Life Span 100,000 Hours 100,000 Hours 100,000 Hours 100,000 Hours
Pixel failing Rate 0.0001 0.0001 0.0001 0.0001
Working Environment Indoor Indoor Indoor Indoor

LED Display Module
240x120mm 96x48 dot SMD1515 LED Display Module

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

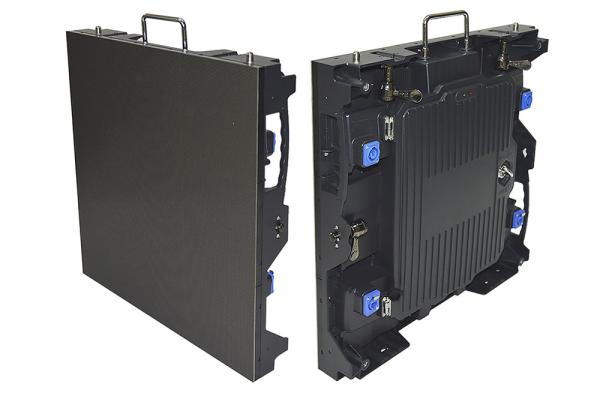

LED Display Cabinet

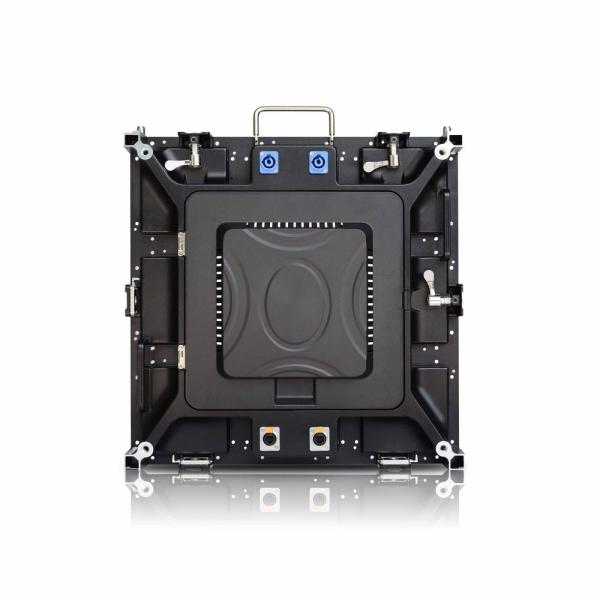

480x480mm die casting aluminum cabinet

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

Looking for ideal P2.5 LED Display Manufacturer & supplier ?

Garant Optima-China indoor P2.5 LED display video wall supplier ,which is a specialized manufacturer of Rental LED Display from China,productcategories includes indoor P2.5 rental LED Display,P2.98 rental LED Display,P3 rental LED Display,P3.91rental LED Display,P4.81 rental LED Display.As a reliable factory,supplier,wholesale high quality products of Rental led display Screens R & D, we have the perfect aftersales service and technical support. Look forward to your cooperation!

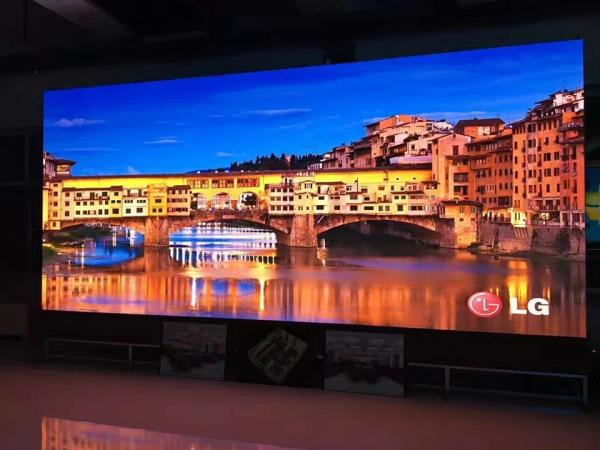

P2.5 Rental LED display video wall is widely used in bars, KTV, entertainment venues, concerts, fashion shows, architectural curtain walls, high-end conference rooms, TV studios, government buildings, etc.

indoor P2.5 Rental LED display in German

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

indoor P2.5 Rental LED display in Spain

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen

indoor P2.5 Rental LED display in USA

480x480mm high contrast die casting aluminum full color indoor P2.5 rental led wall display screen
