Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
Specifications
Brand Name :
Garant Optima
Model Number :
GO-K161
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5㎡
Price :
1500~3300USD/㎡
Payment Terms :
T/T, Western Union
Supply Ability :
10000㎡/month
Delivery Time :
15~30 days
Packaging Details :
Anti-shaking wooden cabinet /Air flight case/carton
Pixel Pitch :
1.667mm
Power Brand :
Rxpower,Giant G-energy,Powerld,MeanWell
IC :
High refresh
Controlling System :
linsn, Nova, Mooncell
LED Shape :
SMD3 in 1
LED Configuration :
SMD1010(1R1G1B）
Module Size :
200x150 mm
Led Lamp Brand :
HongSheng,NationStar,Anplight
Brightness :
≥800 cd//㎡
IP Rating :
IP30
Description

480x480mm Indoor P1.667 Small Pitch Led Display

Garant Optima is a specialized manufacturer of 480x480mm P1.667 Small Pitch LED Display from China.The 480x480mm P1.667 Small Pitch LED Display is also known as fine pitch led display or high definition LED display video wall or HD indoor LED video wall. It represents the latest and top technology of the LED display industry.

Garant Optima Led Display uses IC of 3840Hz refresh rate with PWM function, the new 480x480 die-casting aluminum cabinet supports modules, power supply and receiving card front access. In addition, Garant Optima LED display uses China's best LED brand lamp- Nation star, to ensure the consistency of color and the stability of quality. What’s more, Garant Optima also provides the best price for this series of UHD indoor small-pitch Led display video wall.

Features

1,Cabinet supports suspension, wall hanging, recessed and ground support installation

2,Quick locks make installation easy;

3;Magnetic modules make module replacement simple and easy;

4,High grayscale, high contrast (up to 5000: 1), high refresh rate (up to 3840Hz)

5. The screen plays without flicker;

6.Ultra-small pitch, high pixel density HD LED display, suitable for indoor ultra-high-definition close-up viewing display;

7.160-degree ultra-wide viewing angle, enabling viewers to obtain high-quality display effects at various angles;

8.Die-cast aluminum frame design, ultra-light, ultra-thin screen, space-saving, cost-saving and stylish and beautiful;

9.Die-cast aluminum housing improves heat dissipation performance, extends service life, and reduces maintenance costs

Our Advantage:

Our products VS others

Gray Scare

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Refresh rate

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Brightness

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Specification:

LED Display Model GO-K161 GO-K181 GO-K251 GO-K301
Module Specification Pixel Pitch 1.667 mm 1.875 mm 2.5mm 3mm
Pixel Density 360000 dot//㎡ 284444dot//㎡ 160000dot//㎡ 111111dot//㎡
LED Shape SMD 3in1 SMD 3in1 SMD 3in1 SMD 3in1
LED Configuration SMD1010(1R1G1B) SMD1515(1R1G1B) SMD1515(1R1G1B) SMD2121(1R1G1B)
Module Size 240x240 mm 240x240 mm 240x120 mm 240x120 mm
Module Resolution 144*144 dot 128*128dot 96*48dot 80*40dot
Cabinet Specification Cabinet Size 480x480 mm 480x480 mm 480x480 mm 480x480 mm
Cabinet Resoltuion 288x288 dot 256x256 dot 192x192dot 160x160 dot
Cabinet Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Cabinet Weight 5Kg 5Kg 5Kg 5Kg
Screen Specification Brightness ≥800 cd//㎡ ≥800 cd//㎡ ≥800 cd//㎡ ≥800 cd//㎡
Viewing angle H/V 140/140 H/V 140/140 H/V 140/140 H/V 140/140
Viewing Distance >>2Meters >>2.5Meters >>3 Meters >>3.5 Meters
Display Color 16.7M 16.7M 16.7M 16.7M
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Grey Scale 14Bit 14Bit 14Bit 14Bit
Scanning Mode 1/30S 1/32S 1/30S 1/26S
IP Rating IP30 IP30 IP30 IP30
Max power consumption 650 W/㎡ 650 W/㎡ 650 W/㎡ 650 W/㎡
Ave power consumption 217 W/㎡ 217W/㎡ 217 W/㎡ 217 W/㎡
Working Voltage AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ AC 100-240V, 50-60HZ
Control Mode Synchronization controlled by PC Synchronization controlled by PC Synchronization controlled by PC Synchronization controlled by PC
Data Transmission CAT5/ Optic Fiber CAT5/ Optic Fiber CAT5/ Optic Fiber CAT5/ Optic Fiber
Controlling system linsn, Nova, Mooncell linsn, Nova, Mooncell linsn, Nova, Mooncell linsn, Nova, Mooncell
Video signal input Composite,DVI,VGA, HDMI,HDSDI Composite,DVI,VGA, HDMI,HDSDI Composite,DVI,VGA,HDMI,HDSDI Composite,DVI,VGA,HDMI,HDSDI
Working Temperature -20~65 ℃ -20~65 ℃ -20~65 ℃ -20~65 ℃
Working Humidity 10-90% RH 10-90% RH 10-90% RH 10-90% RH
Brightness Adjustment 0~100 levels 0~100 levels 0~100 levels 0~100 levels
Life Span 100,000 Hours 100,000 Hours 100,000 Hours 100,000 Hours
Pixel failing Rate 0.0001 0.0001 0.0001 0.0001
Working Environment Indoor Indoor Indoor Indoor

LED Display Module
240x240mm 144x144 dot SMD1010 LED Display Module

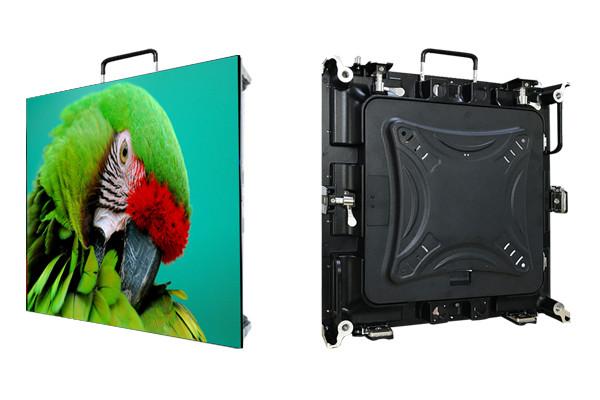

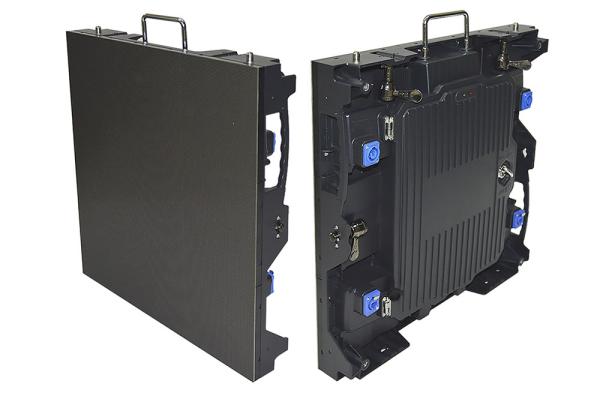

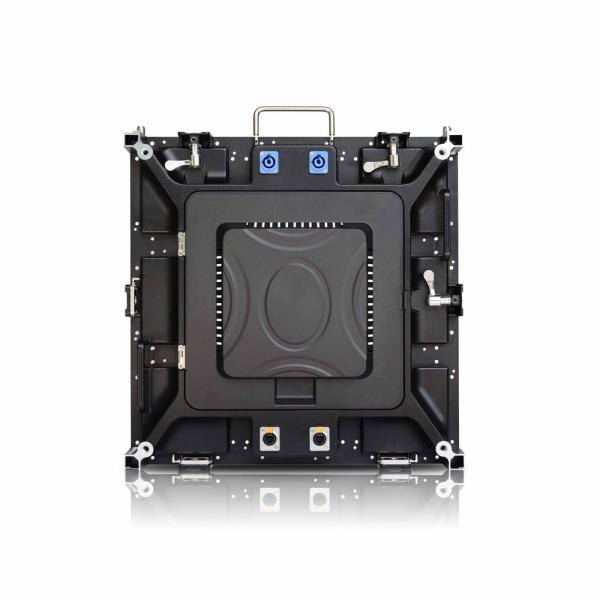

LED Display Cabinet

480x480mm die casting aluminum cabinet

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

Looking for ideal P1.667 HD LED Video Wall Manufacturer & supplier ?

Garant Optima-China P1.667 small pitch LED display video wall supplier ,which is a specialized manufacturer of Small Pitch LED Display from China,productcategories includes P1.25 Small Pitch LED Display,P1.5625 Small Pitch LED Display,P1.667 Small Pitch LED Display,P1.875 Small Pitch LED Display &P1.923 Small Pitch LED Display.As a reliable factory,supplier,wholesale high quality products of Small Pitch Die Casting Display Screens R & D, we have the perfect aftersales service and technical support. Look forward to your cooperation!

P1.667 small pitch LED display video wall is widely used in bars, KTV, entertainment venues, concerts, fashion shows, architectural curtain walls, high-end conference rooms, TV studios, government buildings, etc.

indoor P1.667 small pitch LED display in Vietnam

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

indoor P1.667small pitch LED display in USA

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen

indoor P1.667small pitch LED display in Tibet

Indoor 480x480mm high contrast die casting aluminum P1.667 hd small pixel pitch led wall display screen
