BWX 133339 Freewheel Bearing Sprag Clutch Gcr15 BWX Series 49.721x66.383x13.5MM
BWX 133339 Freewheel Bearing Sprag Clutch Gcr15 BWX Series 49.721x66.383x13.5MM
Specifications
Brand Name :
BLUEN
Model Number :
BWX133339
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
USD5-USD7PER PIECE
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000PCS Per Month
Delivery Time :
2 Days
Packaging Details :
Each in white box+ Carton Box
Product Name :
One Way Sprag Bearing
Material :
GCr15
Surface Treatment :
Heat Treatment
Port Name :
Shanghai / Ningbo
Service :
OEM / ODM
Warranty :
1 Year
Size :
49.721*66.383*13.5MM
Description

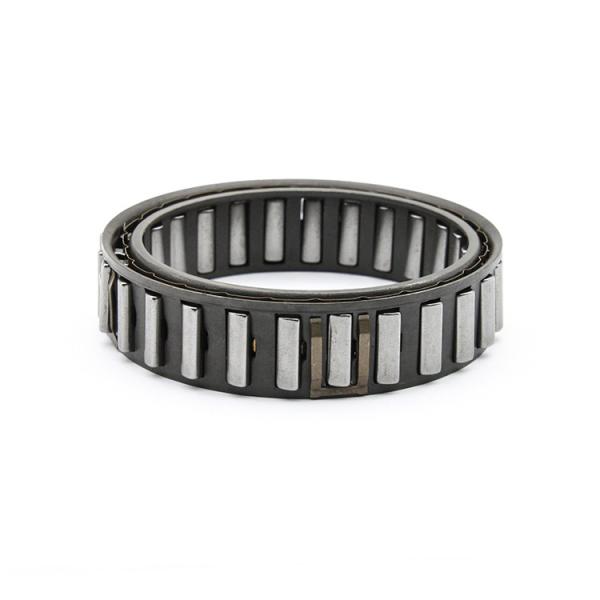

BWX Series BWX133339 49.721*66.383*13.5MM Backstop Clutch One Way Sprag Bearing

Cage Freewheels BWX

for assembly with inner and outer ring with sprags

The freewheels BWX are used as:

Backstops Overrunning Clutches Indexing Freewheels

BWX 133339 Freewheel Bearing Sprag Clutch Gcr15 BWX Series 49.721x66.383x13.5MM

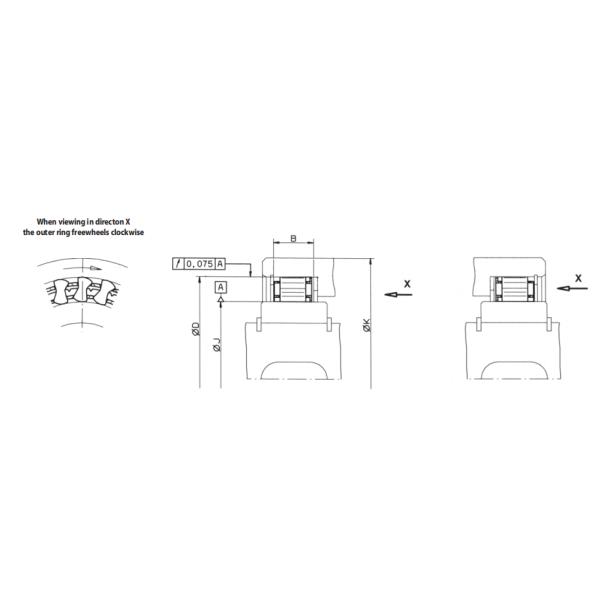

Size Type Nominal torque
MN Nm		 J
+0,008
-0,005 mm		 D
±0,013 mm		 B
mm		 K
mm		 Sprags Quantity Drag strips
Quantity		 Brake clips
Quantity		 Design as ill. Weight
kg
BWX133590A Disengaging 63 22,225 38,887 10,0 44,0 12 109-2 0,03
BWX13143A Engaging 120 27,767 44,425 13,5 51,0 14 109-2 0,06
BWX133392 Disengaging 280 38,092 54,750 16,0 71,0 18 109-3 0,09
BWX1310145 Disengaging 180 41,275 57,937 13,5 74,2 14 3 109-2 0,07
BWX132909A Disengaging 360 44,450 61,112 16,0 78,5 20 2 3 109-2 0,10
BWX133339 Disengaging 310 49,721 66,383 13,5 85,0 22 2 4 109-2 0,09
BWX1310003 Disengaging 310 49,721 66,383 13,5 85,0 22 4 109-2 0,09
BWX137222 Engaging 570 49,721 66,383 19,0 85,0 22 109-2 0,12
BWX1310445 Disengaging 400 54,765 71,427 13,5 91,7 24 109-2 0,09
BWX1310172 Engaging 540 54,765 71,427 16,0 91,7 24 109-2 0,12
BWX1310226 Disengaging 520 54,765 71,427 16,0 91,7 24 2 4 109-2 0,12
BWX136709 Engaging 770 54,765 71,427 21,0 91,7 24 3 10 109-2 0,16
BWX1310147 Disengaging 1 000 54,765 71,427 25,4 91,7 24 3 8 109-2 0,20
BWX136324 Engaging 600 57,760 74,427 19,0 95,0 26 109-3 0,14
BWX1310080 Disengaging 670 72,217 88,882 13,5 115,0 30 4 109-2 0,12
BWX13168 Engaging 1 300 72,217 88,882 21,0 115,0 30 109-3 0,20
BWX134012 Engaging 1 300 72,217 88,882 21,0 115,0 30 4 10 109-3 0,20
BWX137322 Disengaging 2 000 79,698 96,363 25,4 124,0 34 5 12 109-2 0,28
BWX138316 Disengaging 2 960 83,597 102,596 25,4 131,6 34 5 12 109-2 0,30
BWX13261A1 Disengaging 1 600 103,231 119,893 16,0 154,0 40 6 10 109-3 0,19
BWX13236 Disengaging 1 700 117,391 136,391 16,0 175,3 30 5 6 109-3 0,25
BWX133403B Engaging 4 900 123,881 142,880 25,4 188,0 44 11 109-2 0,46
