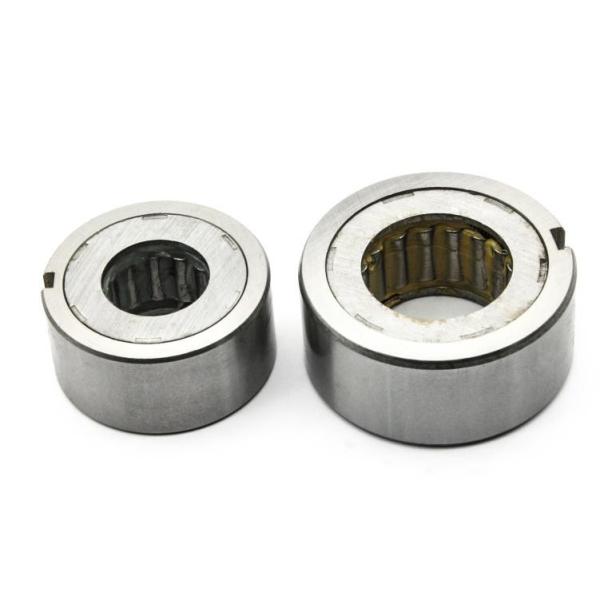

B200 Series Freewheel Bearing B206 B208 B210 One Way Starter Clutch Bearing
B200 Series Freewheel Bearing B206 B208 B210 One Way Starter Clutch Bearing
Specifications
Brand Name :
BLUEN
Model Number :
B206 B208 B210
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
USD5-USD12PER PIECE
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000PCS Per Month
Delivery Time :
2 Days
Packaging Details :
Each in White Box+ Carton Box
Model No. :
B206 B208 B210
Material :
GCr15
Surface Treatment :
Heat Treatment
Port Name :
Shanghai / Ningbo
Service :
OEM / ODM
Warranty :
1 Year
Description

B200 Series B206 B208 B210 One Way Cam Clutch Bearings

B200 Series Freewheel Bearing B206 B208 B210 One Way Starter Clutch Bearing

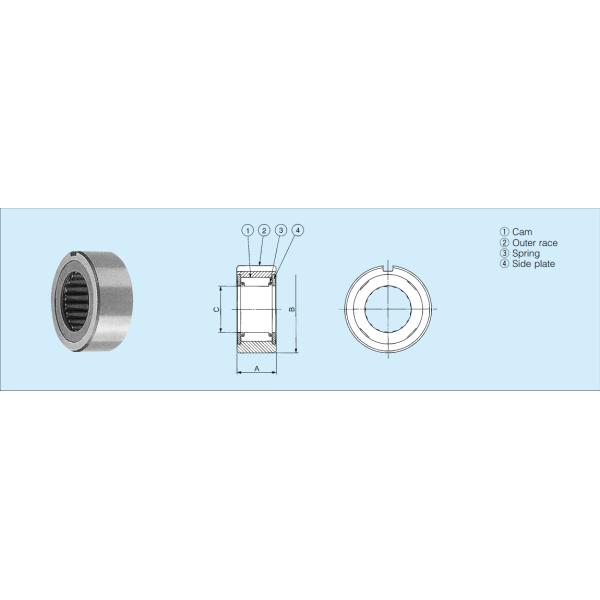

Model Torque Capacity
(N.m)		 Drag Torque
(N.m)		 Max .Overrunning (r/min) Max.Idexing (cycle/min) A(+0 to -0.6)

B
Keyway		 With JIS Bearing No. Shaft Dia. C(+0 to -0.025) Weight
(kg)
Shaft Outer Race
B203 39.2 0.10 2400 500 150 25.0 40(-0.014-0.039) 4X2.5 6203 16.510 0.23
B204 58.8 0.10 2400 500 150 25.0 47(-0.014-0.039) 5X3 6204 18.796 0.34
B205 98 0.20 1800 400 150 25.0 52(0.017-0.042) 5X3 6205 23.622 0.45
B206 235 0.20 1800 350 150 28.0 62(-0.017-0.042) 7X4 6206 32.766 0.68
B207 372 0.20 1800 300 150 28.0 72(-0.017-0.042) 7X4 6207 42.088 0.80
B208 549 0.20 1800 200 150 32.0 80(-0.017-0.042) 10X4.5 6208 46.761 0.91
B209 549 0.20 1800 200 150 32.0 85(-0.020-0.045) 10X4.5 6209 46.761 0.95
B2010 784 0.29 1200 200 150 32.0 90(-0.020-0.045) 10X4.5 6210 56.109 1.00
B211 784 0.29 1200 200 150 32.0 100(-0.020-0.050) 10X4.5 6211 56.109 1.40
B212 1230 0.29 1200 180 150 42.0 110(-0.020-0.050) 10X4.5 6212 70.029 1.80
B213 1230 0.29 1200 180 150 42.0 120(-0.020-0.050) 10X4.5 6213 70.029 2.30
B214 1390 0.39 180 180 150 42.0 125(-0.024-0.060) 12X4.5 6214 79.356 2.4

Installation and Usage
1. 200 Series Cam Clutch is shaft mounted, so the shaft on which the clutch is mounted must be hardened to Rc 56-60 and 1.5 mm case depth after grinding. Grind to 1.5S (16micro-inch) finish. The taper of this shaft should not exceed 0.01 mm per 50mm.

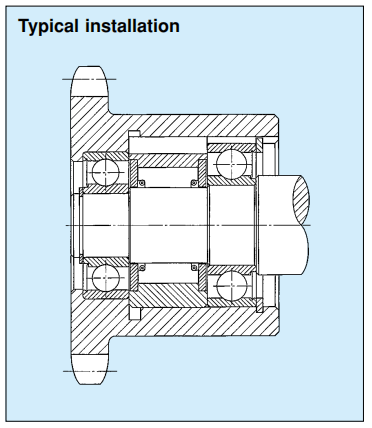

2. For installation of the clutch, mount the clutch with bearings at both sides or on one side in order to obtain concentricity between the shaft and the clutch outer race and to take up radial or thrust loads which may work on the outer race or the shaft. See the installation example.
3. The clutch should be mounted on the shaft by rotating it in the direction marked by the arrow
shown on the clutch plate. Do not apply shock to the clutch by hammering.
4. The clutches have the same outside diameters as the bearings shown in the table above. Bore tolerance of the housing in which the clutch is assembled should be within the range shown in the table below.
5. For indexing, oil lubrication is recommended.
6. Concentricity of the housing bore and shaft should be within 0.05 mm.
7. Key profile should be in accordance with JIS B1301-1959.

B200 Series Freewheel Bearing B206 B208 B210 One Way Starter Clutch Bearing
