FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS
Specifications
Brand Name :
BLUEN
Model Number :
FWD331608PRB FWD.331608PRS
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
USD5-USD7PER PIECE
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
100000PCS Per Month
Delivery Time :
2 Days
Packaging Details :
Each in white box+ Carton Box
Model No. :
FWD331608PRB FWD331608PRS
Material :
GCr15
Surface Treatment :
Heat Treatment
Port Name :
Shanghai / Ningbo
Service :
OEM / ODM
Warranty :
1 Year
Description

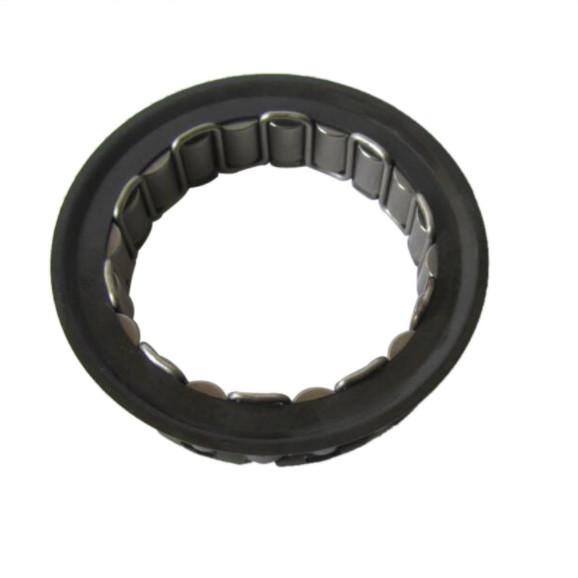

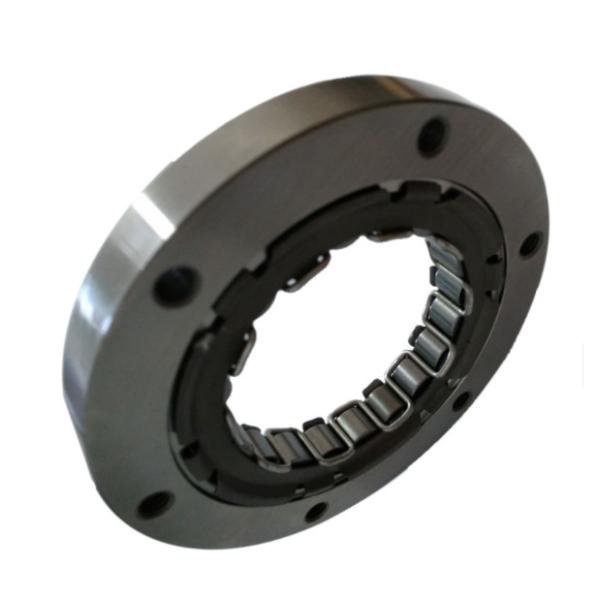

FWD331808PRB Sprag Type Clutch PRS PRB BACKSTOP CLUTCHS FWD331808PRS Sprag Type Bearing Cage

FWD...PRB FWD...PRS, Widely used on Motorcycle function as starter

Sprag freewheels FWD series:

FWD CRB TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

A

(mm)

B

(mm)

C

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608CRB 39.627 56.294 13.0 60 62 1.0 27 73
FWD331808CRB 45.665 62.332 13.3 65 68 1.0 35 83
FWD332008CRB 51.710 68.377 13.3 71 74 1.0 45 92
FWD332211CRB 57.760 74.427 16.3 76 79 1.0 78 134

Opposite overrunning direction should be ordered separately

FWD CRS TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

A

(mm)

B

(mm)

C

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608CRS 39.627 56.294 13.0 60 62 1.0 27 78
FWD331808CRS 45.665 62.332 13.3 65 68 1.0 35 88
FWD332008CRS 51.710 68.377 13.3 71 74 1.0 45 98
FWD332211CRS 57.760 74.427 16.3 76 79 1.0 78 140

Opposite overrunning direction should be ordered separately

FWD PRB TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

W1

(mm)

Dc

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608PRB 39.627 56.294 13.0 11.4 45 27 70
FWD331808PRB 45.665 62.332 13.3 11.7 51 35 80
FWD332008PRB 51.710 68.377 13.3 11.7 57 45 89
FWD332211PRB 57.760 74.427 16.3 14.7 63 78 130

Opposite overrunning direction should be ordered separately

FWD PRS TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

W1

(mm)

Dc

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608PRS 39.627 56.294 13.0 11.4 45 27 75
FWD331808PRS 45.665 62.332 13.3 11.7 51 35 85
FWD332008PRS 51.710 68.377 13.3 11.7 57 45 94
FWD332211PRS 57.760 74.427 16.3 14.7 63 78 139

Opposite overrunning direction should be ordered separately

FWD BRB TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

Dc

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608BRB 39.627 56.294 13.0 45 27 73
FWD331808BRB 45.665 62.332 13.3 51 35 82
FWD332008BRB 51.710 68.377 13.3 57 45 91
FWD332211BRB 57.760 74.427 16.3 63 78 134

Opposite overrunning direction should be ordered separately

FWD BRS TYPE

FWD331808PRB Sprag Type Clutch PRS PRB Backstop Clutch FWD331808PRS

Type

D

(mm)

D0

(mm)

W

(mm)

Dc

(mm)

Tkn

(Kgf-m)

Weight

(g)
FWD331608BRS 39.627 56.294 13.0 45 27 77
FWD331808BRS 45.665 62.332 13.3 51 35 87
FWD332008BRS 51.710 68.377 13.3 57 45 97
FWD332211BRS 57.760 74.427 16.3 63 78 134

Opposite overrunning direction should be ordered separaty
